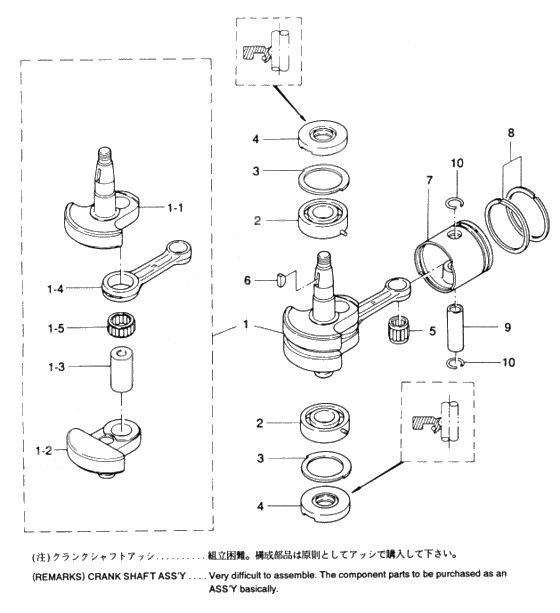

Piston & crank shaft для Tohatsu M5B - 2003 года выпуска
-
№АртикулНазвание
-
1369-00030-0 Crankshaft Ass'yCrankshaft Ass'y
-
1-1369-00031-0 Вал коленчатыйВал коленчатый
-
1-2369-00034-0 Crankshaft dCrankshaft d
-
1-3369-00061-0 New partNew part
-
1-4369-00040-0 New partNew part
-
1-5369-00043-0 New partNew part
-
29603-3-6204 Ball BearingBall Bearing
-
3369-00115-0 Retainer ball bearingRetainer ball bearing
-
4369-00122-0 New partNew part
-
5350-00042-0 New partNew part
-
6338-00131-0 Magneto KeyMagneto Key
-
7369-00001-0 Piston (std)Piston (std)
-
7369-00004-0 New part
OPTIONNew part
OPTION -
8351-00011-0 Поршневые кольцаПоршневые кольца
-
8351-00014-0 New part
OPTIONNew part
OPTION -
9369-00021-0 New partNew part
-
10350-00024-1 Clip piston pinClip piston pin
