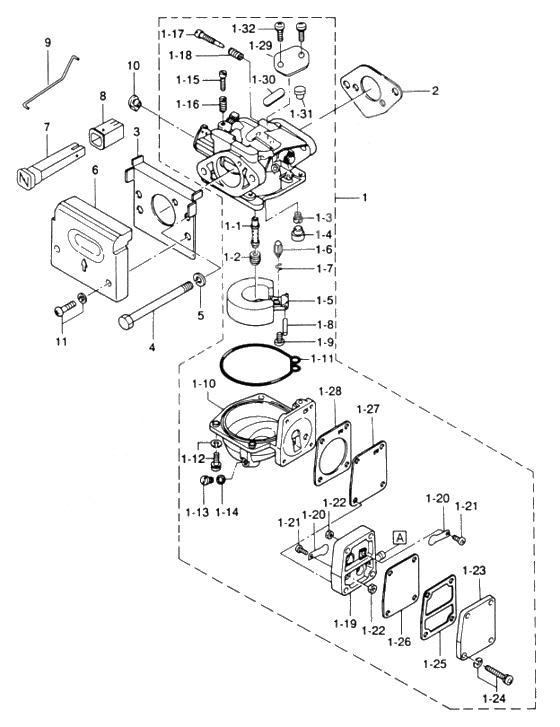

Carburetor для Tohatsu M5B - 2003 года выпуска
-
№АртикулНазвание
-
1369-03200-2 Carburetor ass'y
78BCCarburetor ass'y
78BC -
1-1369-03252-1 Main NozzleMain Nozzle
-
1-10369-03221-0 Float ChamberFloat Chamber
-
1-11369-03222-0 Уплотнительное кольцоУплотнительное кольцо
-
1-12922503-6412 Stud BoltStud Bolt
-
1-13369-03292-0 Drain ScrewDrain Screw
-
1-14369-03293-0 Gasket drain screwGasket drain screw
-
1-15346-03265-0 Stop ScrewStop Screw
-
1-16346-03267-0 Spring aSpring a
-
1-173B2-03266-0 Pilot adjust screwPilot adjust screw
-
1-18356-03268-0 Spring BSpring B
-
1-19369-03304-0 Корпус насосаКорпус насоса
-
1-2369-03251-0 Жиклер главныйЖиклер главный
-
1-20369-03305-0 Клапана липестковыйКлапана липестковый
-
1-21921821-0306 Stud BoltStud Bolt
-
1-22930121-0300 NutNut
-
1-23369-03301-0 Pump coverPump cover
-
1-24922553-6423 Stud BoltStud Bolt
-
1-25369-03302-0 Прокладка насосаПрокладка насоса
-
1-26369-03303-0 Диафрагма А""Диафрагма А""
-
1-27369-03306-0 Прокладка крышкиПрокладка крышки
-
1-28369-03307-0 Диафрагма В""Диафрагма В""
-
1-29369-03181-0 Carburetor coverCarburetor cover
-
1-3393-03254-0 Slow jet #52Slow jet #52
-
1-30369-03182-0 Gasket, plate cover aGasket, plate cover a
-
1-31369-03183-0 Gasket, plate cover bGasket, plate cover b
-
1-32369-03186-0 Stud BoltStud Bolt
-
1-4346-03256-0 Rubber capRubber cap
-
1-5369-03231-0 FloatFloat
-
1-6369-03240-0 Float ValveFloat Valve
-
1-7344-03244-0 ClipClip
-
1-8346-03232-0 Arm Pin FloatArm Pin Float
-
1-9921521-0408 Stud BoltStud Bolt
-
2369-02011-0 Gasket carburetorGasket carburetor
-
3369-02503-1 Holder baffle plateHolder baffle plate
-
4916181-0685 BoltBolt
-
5941322-0600 Spring WasherSpring Washer
-
6369-02501-2 Плата дифлектораПлата дифлектора
-
7369-67151-2 Choke rod (4-stroke old style)Choke rod (4-stroke old style)
-
8393-67104-0 Choke rod,bushingChoke rod,bushing
-
9393-67192-0 Rod,choke linkRod,choke link
-
10346-67196-1 Rod Snap 3-bRod Snap 3-b
-
11921503-5418 Stud BoltStud Bolt
-
1369-03200-1 Carburetor
78BCCarburetor
78BC -
1-1369-03252-0 * Main Nozzle* Main Nozzle
-
1-2369-03251-1 * Main Jet # 78* Main Jet # 78
-
1-3393-03254-1 * Slow Jet # 52* Slow Jet # 52
-
1-4346-03256-1 * Rubber Cap* Rubber Cap
-
1-5369-03231-1 * Float* Float
-
1-6369-03240-1 * Float Valve* Float Valve
-
1-7344-03244-1 * Clip* Clip
-
1-8346-03232-1 * Arm Pin, Float* Arm Pin, Float
-
1-9921521-0407 * Screw* Screw
-
1-10369-03221-1 * Float Chamber* Float Chamber
-
1-11369-03222-1 * 0-Ring, Float Chamber* 0-Ring, Float Chamber
-
1-12922503-6411 * Screw* Screw
-
1-13369-03292-1 * Drain Screw* Drain Screw
-
1-14369-03293-0 * Gasket, Drain Screw* Gasket, Drain Screw
-
1-15346-03265-1 * Stop Screw* Stop Screw
-
1-16346-03267-1 * Spring A"* Spring A"
-
1-173B2-03266-1 * Adiust Screw* Adiust Screw
-
1-18356-03268-1 * Spring B"* Spring B"
-
1-19369-03304-1 * Pump Body* Pump Body
-
1-20369-03305-1 * Check Valve* Check Valve
-
1-21921821-0305 * Screw* Screw
-
1-22930021-0300 * Nut* Nut
-
1-23369-03301-1 * Pump Cover* Pump Cover
-
1-24922553-6422 * Screw* Screw
-
1-25369-03302-1 * Gasket, Pump Cover* Gasket, Pump Cover
-
1-26369-03303-1 Diaphragm "A"Diaphragm "A"
-
1-27369-03306-0 Diaohragm B"Diaohragm B"
-
1-28369-03307-0 * Gasket, Pump Body* Gasket, Pump Body
-
1-29369-03181-0 * Carburetor Cover* Carburetor Cover
-
1-30369-03182-0 * Gasket A", Carburetor Cover"* Gasket A", Carburetor Cover"
-
1-31369-03183-0 * Gasket B", Carburetor Cover"* Gasket B", Carburetor Cover"
-
1-32369-03186-0 * Screw* Screw
-
2369-02011-0 Gasket, CarburetorGasket, Carburetor
-
3369-02503-1 Holder, Baffle PlateHolder, Baffle Plate
-
4916181-0685 BoltBolt
-
5941322-0600 Spring WasherSpring Washer
-
6369-02501-2 Baffle PlateBaffle Plate
-
7369-67151-2 Choke RodChoke Rod
-
8393-67104-0 Grommet, Chock RodGrommet, Chock Rod
-
9393-67192-0 Rod, Chock LinkRod, Chock Link
-
10346-67196-1 Rod Snao, 3-BRod Snao, 3-B
-
11921503-5418 ScrewScrew
