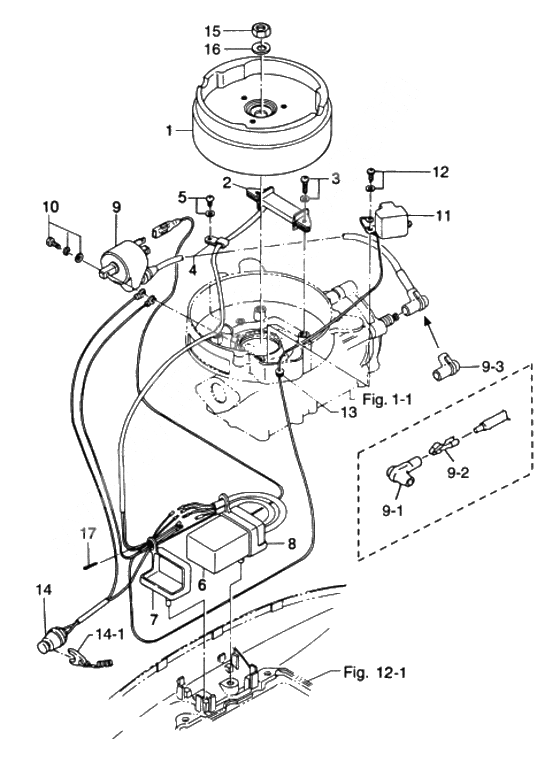

Magneto для Tohatsu M5B - 2003 года выпуска
-
№АртикулНазвание
-
1369-06001-1 Flywheel cupFlywheel cup
-
2369-06021-0 Exciter coilExciter coil
-
3921521-6520 Stud BoltStud Bolt
-
4369-06915-0 ClampClamp
-
5921521-6408 Stud BoltStud Bolt
-
6369-06060-1 Cd. unitCd. unit
-
73H6-06907-0 Damper Rubber BDamper Rubber B
-
83H6-06906-0 Damper rubber aDamper rubber a
-
9369-06050-2 Ignition CoilIgnition Coil
-
9-13M2-06921-0 Plug capPlug cap
-
9-23M2-06926-0 Terminal plug capTerminal plug cap
-
9-33C7-06921-0 Prug cap (with waterproof registance)Prug cap (with waterproof registance)
-
10910103-5620 Bolt
OR 910113-5620Bolt
OR 910113-5620 -
11369-06071-0 Пульсерная катушка №Пульсерная катушка №
-
12921521-6412 Stud BoltStud Bolt
-
13369-06908-0 Grommet pulser coilGrommet pulser coil
-
143D5-06870-0 Stop switch ass'y fStop switch ass'y f
-
14-1353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
15369-00132-0 Nut MagnetoNut Magneto
-
16940121-1200 WasherWasher
-
17951503-0318 New partNew part
-
1369-06001-1 Flywheel CupFlywheel Cup
-
2369-06021-0 Exciter CoilExciter Coil
-
3921521-6520 ScrewScrew
-
4369-06915-0 Clam p, 4.2-3-8Clam p, 4.2-3-8
-
5921521-6408 ScrewScrew
-
6369-06060-1 C. D. UnitC. D. Unit
-
73H6-06907-0 Damper Rubber B"Damper Rubber B"
-
83H6-06906-0 Damper Rubber A"Damper Rubber A"
-
9369-06050-2 Ignition CoilIgnition Coil
-
9-13M2-06291-0 * Plug Cap* Plug Cap
-
9-23M2-06926-0 * Terminal, Pl ug Cao* Terminal, Pl ug Cao
-
9-33C7-06921-0 * Plug Cap ( with Resistance)* Plug Cap ( with Resistance)
-
10910103-5620 Bolt
or 910113-5620Bolt
or 910113-5620 -
11369-06071-0 Pulser CoilPulser Coil
-
12921521-6412 ScrewScrew
-
13369-06908-0 Grommet, Pulser CoilGrommet, Pulser Coil
-
14305-06870-0 Lanvard Stop SwitchLanvard Stop Switch
-
14-1353-06821-0 * Lock, Lanyard Stop Switch* Lock, Lanyard Stop Switch
-
15369-00132-0 Nut, Magneto (12P-1.25)Nut, Magneto (12P-1.25)
-
16940121-1200 WasherWasher
-
17951503-0318 Split Pin, 3-18Split Pin, 3-18
