Accessories для Tohatsu M25C3 - 2005 года выпуска
-
№АртикулНазвание
-
1346-84905-1 Drag link c ass'y
EP Type StandardDrag link c ass'y
EP Type Standard -
1346-76160-2 Rectifier completeRectifier complete
-
1-13F3-84908-0 Seal Ring Drag LinkSeal Ring Drag Link
-
2361-72542-0 Separate cord(white)Separate cord(white)
-
2353-84904-0 Spacer Drag LinkSpacer Drag Link
-
3361-72543-0 Separate cord(yellow)Separate cord(yellow)
-
33A3-84900-1 Tie-bar kit b - no longer avaialbleTie-bar kit b - no longer avaialble
-
3B7-84900-1 Tie-bar kit b - no longer avaialbleTie-bar kit b - no longer avaialble
-
43B7-72530-1 Tachometer Ass'y
UniqueTachometer Ass'y
Unique -
4346-84901-0 Plate turn buklePlate turn bukle
-
4-13B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
4-23B7-72656-0 Damper, MeterDamper, Meter
-
4-33B7-72661-0 Plate, FittingPlate, Fitting
-
4-4930203-0500 NutNut
-
4-5941303-0500 Spring WasherSpring Washer
-
5346-66901-0 Clutch lever,reverse lock kitClutch lever,reverse lock kit
-
5361-72539-0 Lead Wire TachometerLead Wire Tachometer
-
5-1346-66902-0 Reverse LockReverse Lock
-
5-10346-66906-0 Spring link plateSpring link plate
-
5-11346-66909-0 Spring holderSpring holder
-
5-12951403-0312 Spring WasherSpring Washer
-
5-12951403-0310 New partNew part
-
5-13951403-0314 Spring WasherSpring Washer
-
5-13346S62431-0 Tilt Stopper Ass'yTilt Stopper Ass'y
-
5-14346-62421-1 Spring Friction PlateSpring Friction Plate
-
5-2346-66903-0 Spring reverse lockSpring reverse lock
-
5-3346-66904-0 Shaft b reverse lock armShaft b reverse lock arm
-
5-4332-66307-0 Shaft Reverse LockShaft Reverse Lock
-
5-5346-66908-0 Link reverse lockLink reverse lock
-
5-6951503-0212 Split PinSplit Pin
-
5-7346-66905-0 Plate reverse lock linkPlate reverse lock link
-
5-8930103-0500 NutNut
-
5-9941303-0500 Spring WasherSpring Washer
-
6345-67169-0 Grommet lighting cordGrommet lighting cord
-
73P0-72679-0 Tachometer unit kit
30A4 # 35175- 25C3 # 50039-Tachometer unit kit
30A4 # 35175- 25C3 # 50039- -
8380-72312-0 Vinyl motor cover
UniqueVinyl motor cover
Unique -
93A1-63039-0 Long handle 0.8mLong handle 0.8m
-
93A1-63038-0 Long handle 1.0mLong handle 1.0m
-
103F3-72540-0 Ignition CheckerIgnition Checker
-
11346-64111-5 Test PropellerTest Propeller
-
123Y9-72304-0 Engine oil, 4.0l
Engine Oil N.A.F.N.Engine oil, 4.0l
Engine Oil N.A.F.N. -
123AC-72300-0 Tohatsu super gold (1.0 liter)
Engine Oil N.A.F.N.Tohatsu super gold (1.0 liter)
Engine Oil N.A.F.N. -
13332-72306-0 Gear oil (500ml)
20 Tubes/Case N.A.F.N.Gear oil (500ml)
20 Tubes/Case N.A.F.N. -
14332-72309-0 Grease (250g)
24 Tubes/Case N.A.F.N.Grease (250g)
24 Tubes/Case N.A.F.N. -
153B7-72326-0 Paint tohatsu (92-05) - nissan (00-05) 12 oz spray -silver-gray
N.A.F.N.Paint tohatsu (92-05) - nissan (00-05) 12 oz spray -silver-gray
N.A.F.N. -
16332-72402-0 StandStand
-
17332-72401-0 Outboard stand casterOutboard stand caster
Все узлы модели:
- CYLINDER CRANK CASE ASS`Y
- PISTON CRANK SHAFT
- INLET REED VALVE
- CARBURERTOR
- MAGNETO 30A4 #35175~
- DRIVESHAFT HOUSING GEAR CASE
- TRANSMISSION WATER PUMP
- GEAR SHIFT 30A3 #30720~
- BRACKET 30A3 #31959~
- REVERSE LOCK 30A3 #31959~
- SEPARATE FUELE TANK (PLASTIC) ACCESSORIES
- OPTIONAL PARTS (I) REMOTE CONTROL
- OPTIONAL PARTS (II) ELECTRIC STARTER (common use for P and F types)
- OPTIONAL PARTS (III) ELECTRIC STARTER (Exclusive use for P and F types respectively)

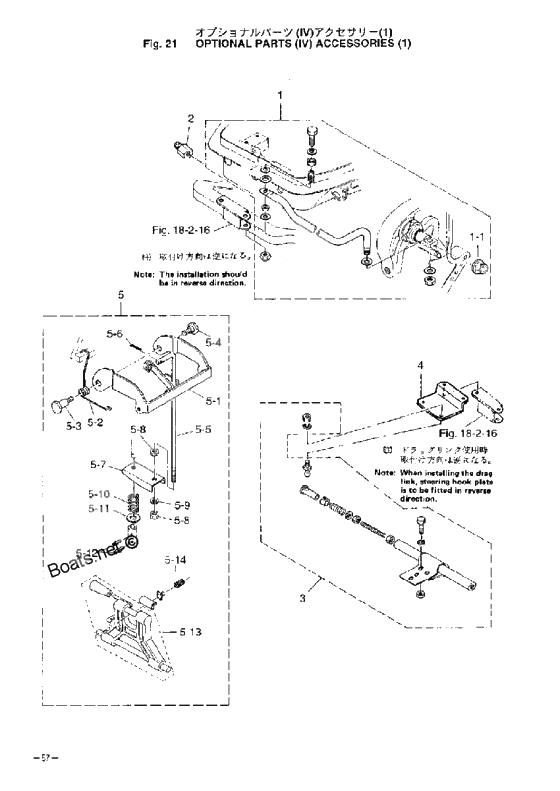

- OPTIONAL PARTS (IV) ACCESSORIES (1)
- OPTIONAL PARTS (V) ACCESSORIES (2)
- • Accessories
- Assembly kit
- Bracket
- Carburetor
- Cylinder - crank case assy
- Driveshaft housing - gear case
- Electric starter (p & f types)
- Fuel pump
- Fuel tank (remote)
- Gear shift
- Inlet - reed valve
- Magneto
- Motor cover
- Piston & crank shaft
- Recoil starter
- Remote control
- Reverse lock 25c2 #42833- 30a3 #31959-
- Starter lock
- Throttle mechanism
- Tiller handle
- Transmission - water pump
