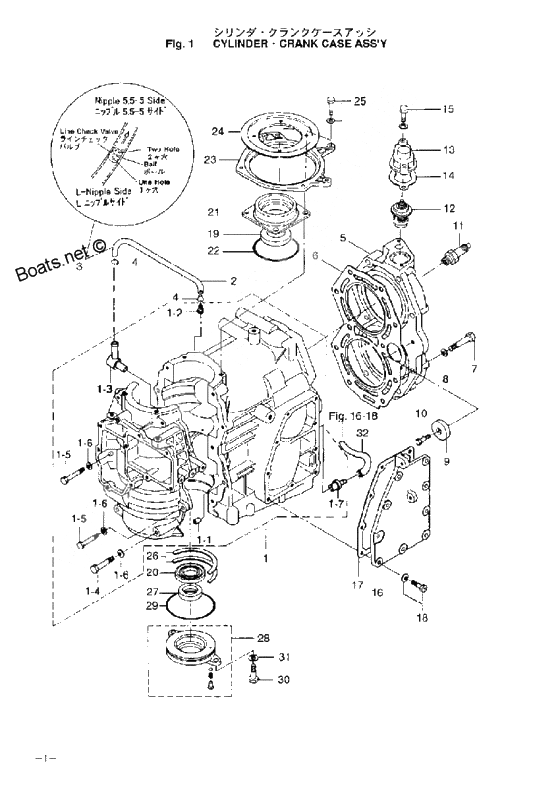

Cylinder - crank case assy для Tohatsu M25C3 - 2005 года выпуска
-
№АртикулНазвание
-
1346B01100-4 Cylinder & Crank Case Ass'y
30A4 # 38568- 25C3 # 57329-Cylinder & Crank Case Ass'y
30A4 # 38568- 25C3 # 57329- -
2393-01131-0 Drain nipple
, 30A4 # 38568- 25C3 # 57329-Drain nipple
, 30A4 # 38568- 25C3 # 57329- -
3393-01160-0 Check Valve
30A4 # 38568- 25C3 # 57329-Check Valve
30A4 # 38568- 25C3 # 57329- -
3393-01137-0 Drain nipple
, 30A4 # 38568- 25C3 # 57329-Drain nipple
, 30A4 # 38568- 25C3 # 57329- -
33B2-01160-0 Check valve nipple assy
, 30A4 # 38567- 25C3 # 57328-Check valve nipple assy
, 30A4 # 38567- 25C3 # 57328- -
43T5-01133-0 Clip
тИЕ8Clip
тИЕ8 -
4916124-0845 BoltBolt
-
53A1B01001-0 Головка цилиндров
30A3 # 21031- 25C2 # 27906-Головка цилиндров
30A3 # 21031- 25C2 # 27906- -
5916124-0840 BoltBolt
-
6940121-0800 WasherWasher
-
6346-01005-0 Gasket cylinder headGasket cylinder head
-
7916119-0845 BoltBolt
-
7346-01137-0 Joint water pipe7-7Joint water pipe7-7
-
8345-01015-0 WasherWasher
-
9338-60218-2 New partNew part
-
10910103-0616 Bolt
or 910113-0616Bolt
or 910113-0616 -
12345-01030-0 サーモスタットサーモスタット
-
133H6B01031-0 Cap,ThermostatCap,Thermostat
-
14346-01032-0 New partNew part
-
16346B02301-0 Exhaust CoverExhaust Cover
-
17346-02305-0 Gasket exhaust coverGasket exhaust cover
-
19126-00121-0 Oil seal 30-45-8Oil seal 30-45-8
-
20346-00122-0 OIL SEAL LOWER, CRANKSHAFTOIL SEAL LOWER, CRANKSHAFT
-
21345-01401-0 Agneto baseAgneto base
-
22338-01403-0 O-RingO-Ring
-
23353-63723-1 Комплект колецКомплект колец
-
24346-63722-2 Guide PlateGuide Plate
-
26346-00115-0 Thrust Plate CrankshaftThrust Plate Crankshaft
-
27346-01215-0 New partNew part
-
28346-01210-0 Head crank caseHead crank case
-
29346-01216-0 O-RingO-Ring
-
30910114-0616 BoltBolt
-
31941303-0600 New partNew part
