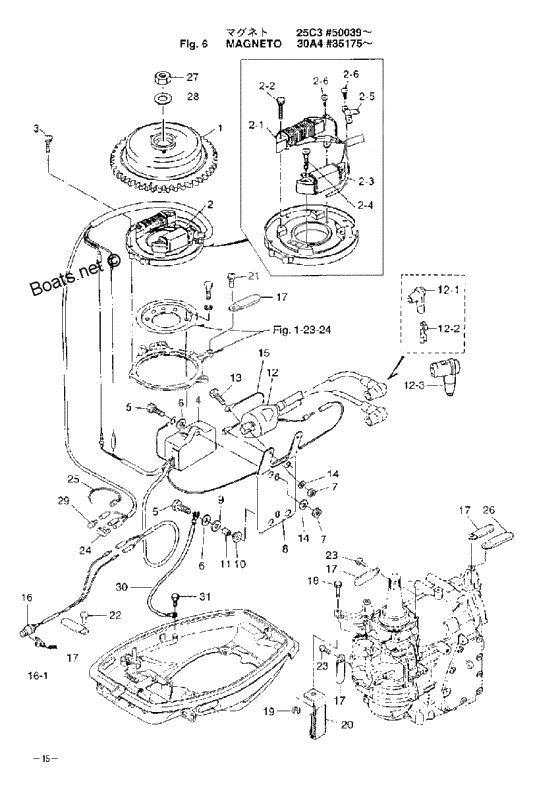

Magneto для Tohatsu M25C3 - 2005 года выпуска
-
№АртикулНазвание
-
13P0-06091-0 Flywheel cup (fp5531)
FP5531Flywheel cup (fp5531)
FP5531 -
3P0-06091-1 Flywheel cup (fp5531)Flywheel cup (fp5531)
-
23P0-06002-0 Coil plate ass'yCoil plate ass'y
-
2-13P0-06023-0 AlternaterAlternater
-
2-2921521-6528 Stud BoltStud Bolt
-
2-33G3-06021-0 Exciter coil setExciter coil set
-
2-4921521-6522 Stud BoltStud Bolt
-
2-5350-06025-0 Holder, magneto cordHolder, magneto cord
-
2-6921521-6406 Stud BoltStud Bolt
-
3921521-6510 Stud BoltStud Bolt
-
43P0-06060-0 C.D. Unit
CU 2561C.D. Unit
CU 2561 -
5910103-6625 BoltBolt
-
63C8-66308-0 New part
or 3C8-66308-0New part
or 3C8-66308-0 -
7930103-0600 Nut
or 930113-0600Nut
or 930113-0600 -
83A0-06322-0 Plate electronicPlate electronic
-
93B7-06305-0 Mount Rubber, 9-16-4.3Mount Rubber, 9-16-4.3
-
103F3-06920-0 Mount Rubber 9-12-2Mount Rubber 9-12-2
-
113A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
11353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
123A0-06040-1 Ignition CoilIgnition Coil
-
12-13M2-06291-1 Plug capPlug cap
-
12-23M2-06926-0 Terminal plug capTerminal plug cap
-
12-33C7-06921-0 Prug cap (with waterproof registance)Prug cap (with waterproof registance)
-
14941303-0600 New partNew part
-
153B7-76142-0 Ground cordGround cord
-
16398-06830-0 Safety Switch Ass'ySafety Switch Ass'y
-
17309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
18910114-0825 BoltBolt
-
19930103-0800 Nut
or 930113-0800Nut
or 930113-0800 -
20345-06917-1 Clamp 9-20uClamp 9-20u
-
22910121-0612 Bolt
EP Type OptionBolt
EP Type Option -
24353-76037-0 Plug Cable TerminalPlug Cable Terminal
-
25336-76091-0 Band Battery CordBand Battery Cord
-
26398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
27334-00132-0 Nut 16p1.5lNut 16p1.5l
-
28334-00133-0 Washer magnetoWasher magneto
-
293A3-76037-0 Plug B Cable TerminalPlug B Cable Terminal
-
303C7-76142-0 Ground cord
for MF TypeGround cord
for MF Type -
31910103-0612 New part
for MF TypeNew part
for MF Type
