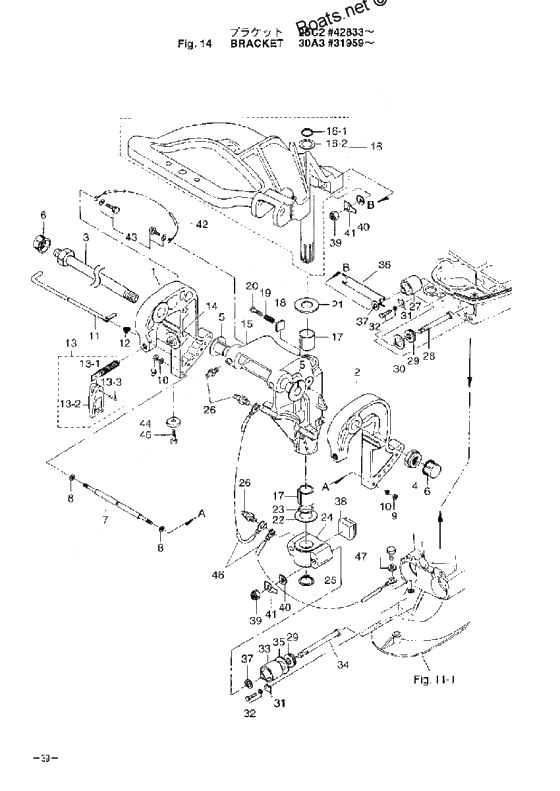

Bracket для Tohatsu M25C3 - 2005 года выпуска
-
№АртикулНазвание
-
1349S62112-0 Stern braket r
StarboardStern braket r
Starboard -
2349S62113-0 Stern braket l
PortStern braket l
Port -
3346-62191-0 Bracket Bolt Ass'y
25C2 #38993- 30A3 #29854-Bracket Bolt Ass'y
25C2 #38993- 30A3 #29854- -
4346-62124-0 Bracket Nut(Nylon)Bracket Nut(Nylon)
-
5349-62126-0 Bushing, Bracket BoltBushing, Bracket Bolt
-
6346-62127-0 Cap,Bracket BoltCap,Bracket Bolt
-
7346-62117-0 Distance PieceDistance Piece
-
8940103-0600 WasherWasher
-
9930103-0600 NutNut
-
10941303-0600 New partNew part
-
11345-62121-0 Thrust RodThrust Rod
-
12345-62122-1 Spring, thrust rodSpring, thrust rod
-
133M3S62100-0 Clamp screw kitClamp screw kit
-
3V1Q62105-0 Clamp screw kitClamp screw kit
-
13-1398-62103-0 Винт струбциныВинт струбцины
-
13-33C8-62104-1 Rivet3-22Rivet3-22
-
14332-62101-0 Pad clamp screwPad clamp screw
-
15349S62310-2 Поворотный кронштейн
30A3 # 34436- 25C2 # 48728-Поворотный кронштейн
30A3 # 34436- 25C2 # 48728- -
16346S62010-0 Steering shaft ass'ySteering shaft ass'y
-
16-1945103-2200 ClipClip
-
16-2346-62412-1 WasherWasher
-
17345-62417-0 Bushing Steering ShaftBushing Steering Shaft
-
18345-62441-0 Friction PlateFriction Plate
-
19346-62421-0 Spring, friction plateSpring, friction plate
-
20910103-0830 New part
or 910113-0830New part
or 910113-0830 -
213A0-62423-2 Upper Thrust Plate
тИЕ27 - тИЕ50 - 1mmUpper Thrust Plate
тИЕ27 - тИЕ50 - 1mm -
22346-62424-1 Trust Plate Lower
тИЕ26.5 - тИЕ46 - 1mmTrust Plate Lower
тИЕ26.5 - тИЕ46 - 1mm -
24346S61411-2 Mount bracketMount bracket
-
25945103-2500 ClipClip
-
26344-67177-0 МасленкаМасленка
-
27346-61301-0 Mount rubber upperMount rubber upper
-
28346-61307-2 Bolt mount rubber upperBolt mount rubber upper
-
29346-61333-0 Damper plateDamper plate
-
30346-61335-0 Lock plate upper
тИЕ20 - тИЕ31.7 - 3mmLock plate upper
тИЕ20 - тИЕ31.7 - 3mm -
31346-61312-1 Retainer mount rubberRetainer mount rubber
-
32910103-5820 BoltBolt
-
33346-61302-0 Lower Mount RubberLower Mount Rubber
-
34346-61321-2 Bolt rubber mount lowerBolt rubber mount lower
-
35346-61334-0 Lock plate lower
тИЕ21 - тИЕ35.7 - 3mmLock plate lower
тИЕ21 - тИЕ35.7 - 3mm -
36346-61337-0 Damper rubber upperDamper rubber upper
-
38346-61336-0 Damper rubber lowerDamper rubber lower
-
39930103-1000 NutNut
-
40345-61322-2 Washer Rubber Mount BWasher Rubber Mount B
-
41346-61323-0 Lock plate mount rubberLock plate mount rubber
-
423C8-62158-0 Ground WireGround Wire
-
43910113-5612 BoltBolt
-
44338-60218-2 New partNew part
-
463A3-62396-0 New partNew part
