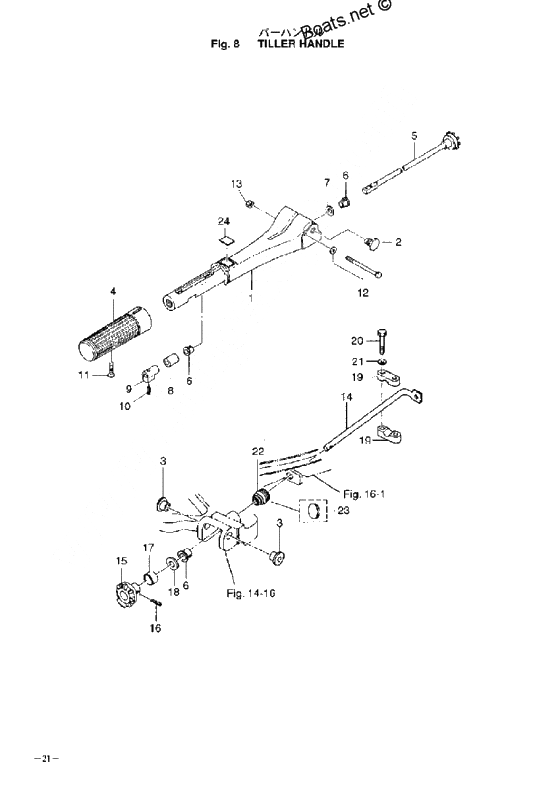

Tiller handle для Tohatsu M25C3 - 2005 года выпуска
-
№АртикулНазвание
-
1398S63011-0 Handle aHandle a
-
2346-63201-0 Bolt, handle aBolt, handle a
-
3345-63207-0 Collar, 9.8-12-7.5Collar, 9.8-12-7.5
-
4398-63012-0 GripGrip
-
5398-63041-0 Ось дросселяОсь дросселя
-
6350-63046-0 BushingBushing
-
7941403-1000 WasherWasher
-
8345-63048-0 Rubber Throttle Shaft ARubber Throttle Shaft A
-
9398-63053-0 Spacer Throttle ShaftSpacer Throttle Shaft
-
10951403-0310 New partNew part
-
11921803-0525 Stud BoltStud Bolt
-
13930403-0600 Nylon NutNylon Nut
-
14346-63061-2 Throttle shaft bThrottle shaft b
-
15346-63064-0 Universal pinionUniversal pinion
-
16951403-0414 Spring WasherSpring Washer
-
17346-63066-1 Collar, 15.9-17.1-9Collar, 15.9-17.1-9
-
18940103-0800 Washer -> 940113-0800
or 940113-0800Washer -> 940113-0800
or 940113-0800 -
19345-63063-0 Holder handle shaft bHolder handle shaft b
-
21940103-0600 Washer
or 940113-0600Washer
or 940113-0600 -
22345-66226-0 Grommet, 17-3Grommet, 17-3
-
23345-67117-0 New part
for Remote ControlNew part
for Remote Control -
24369-72019-0 Label, throttleLabel, throttle
-
1398S63011-0 Steering HandleSteering Handle
-
2346-63201-1 BoltBolt
-
3345-63207-0 Collar, 9.8-12-7.5Collar, 9.8-12-7.5
-
4398-63012-0 GripGrip
-
5398-63041-0 Throttle Shaft “A”Throttle Shaft “A”
-
6350-63046-0 Bushing, 8.4-10-11Bushing, 8.4-10-11
-
7941403-1000 Wave Washer, d=10Wave Washer, d=10
-
8345-63048-0 Rubber, Throttle Shaft "A"Rubber, Throttle Shaft "A"
-
9398-63053-0 Spacer, Throttle ShaftSpacer, Throttle Shaft
-
10951403-0310 Spring Pin, 3-10Spring Pin, 3-10
-
11921803-0525 ScrewScrew
-
12910103-5675 Bolt
or 910113-5675Bolt
or 910113-5675 -
13930403-0600 Nylon Nut, 6P-1.0Nylon Nut, 6P-1.0
-
14346-63061-2 Throttle Shaft “B”Throttle Shaft “B”
-
15346-63064-0 Universal PinionUniversal Pinion
-
16951403-0414 Spring Pin, 4-14Spring Pin, 4-14
-
17346-63066-1 Collar, 15.9-17.1-9Collar, 15.9-17.1-9
-
18940103-0800 Washer
or 940113-0800Washer
or 940113-0800 -
19345-63063-0 Supporter, Throttle ShaftSupporter, Throttle Shaft
-
20910114-0630 BoltBolt
-
21940103-0600 Washer
or 940113-0600Washer
or 940113-0600 -
22345-66226-0 Grommet, Throttle ShaftGrommet, Throttle Shaft
-
23345-67117-0 Grommet, 17-2.7
for Remote ControlGrommet, 17-2.7
for Remote Control -
24369-72019-1 Label, ThrottleLabel, Throttle
