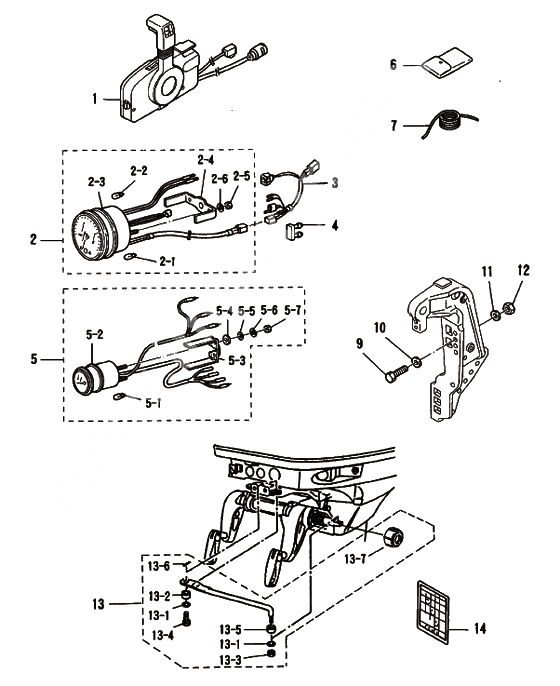

Accessories для Tohatsu MD50B (AQ) - 2006 года выпуска
-
№АртикулНазвание
-
13T5Q84500-1 Rc box rc5f (md40b/50b md70b/90b/115) tldi amb
TOHATSURc box rc5f (md40b/50b md70b/90b/115) tldi amb
TOHATSU -
3GFQ84500-0 Rc box rc5f (md40b/50b md70b/90b/115) tldi ambRc box rc5f (md40b/50b md70b/90b/115) tldi amb
-
13U5Q84500-1 Rc box rc5f (nsd40b/50b nsd70b/90b/115) tldi amb
NISSANRc box rc5f (nsd40b/50b nsd70b/90b/115) tldi amb
NISSAN -
3GHQ84500-0 Rc box rc5f (nsd40b/50b nsd70b/90b/115) tldi ambRc box rc5f (nsd40b/50b nsd70b/90b/115) tldi amb
-
23Z5-72640-1 Tachometer - nla
UNIQUE / FOR P TYPETachometer - nla
UNIQUE / FOR P TYPE -
2-13B7-72658-0 Bulb, Meter 12V-1.7W
FOR P TYPEBulb, Meter 12V-1.7W
FOR P TYPE -
2-23B7-72659-0 Bulb, Meter 12V-1.7W
FOR P TYPEBulb, Meter 12V-1.7W
FOR P TYPE -
2-33B7-72656-0 Damper, Meter
FOR P TYPEDamper, Meter
FOR P TYPE -
2-43B7-72661-0 Plate, Fitting
FOR P TYPEPlate, Fitting
FOR P TYPE -
2-5930203-0500 Nut
FOR P TYPENut
FOR P TYPE -
2-6941303-0500 Spring Washer
FOR P TYPESpring Washer
FOR P TYPE -
33T5-72537-0 Lead wire, meter
L=8000 / FOR P TYPELead wire, meter
L=8000 / FOR P TYPE -
4353-76037-0 Plug Cable Terminal
FOR P TYPEPlug Cable Terminal
FOR P TYPE -
53E0-72571-0 Trim meter ass'y
4 WIRE FOR P TYPETrim meter ass'y
4 WIRE FOR P TYPE -
53T1-72571-0 Trim meter assy. (2-wire)
2 WIRETrim meter assy. (2-wire)
2 WIRE -
5-13B7-72659-0 Bulb, Meter 12V-1.7W
FOR P TYPEBulb, Meter 12V-1.7W
FOR P TYPE -
5-23B7-72655-0 Damper, Meter
FOR P TYPEDamper, Meter
FOR P TYPE -
5-33B7-72665-0 Plate, Fitting
FOR P TYPEPlate, Fitting
FOR P TYPE -
5-43B7-72666-0 Insulated washer
FOR P TYPEInsulated washer
FOR P TYPE -
5-5940103-0400 Washer
FOR P TYPEWasher
FOR P TYPE -
5-6941303-0400 Spring Washer
FOR P TYPESpring Washer
FOR P TYPE -
5-7930203-0400 Nut
FOR P TYPENut
FOR P TYPE -
63H6-72100-0 TOOL ASS'YTOOL ASS'Y
-
73B7-72201-0 КанатКанат
-
93C7-62133-2 Bolt
L=105Bolt
L=105 -
10353-61334-0 WasherWasher
-
11940113-1200 WasherWasher
-
123C7-62139-1 Nut,P1.25Nut,P1.25
-
133C8-84910-2 Drag Link Ass'y
FOR P TYPEDrag Link Ass'y
FOR P TYPE -
13-1353-84916-0 Washer
FOR P TYPEWasher
FOR P TYPE -
13-23C8-84914-1 Collar 9.6-13-6.5
FOR P TYPECollar 9.6-13-6.5
FOR P TYPE -
13-3353-84918-0 Nylon Nut 3/8
FOR P TYPENylon Nut 3/8
FOR P TYPE -
13-43C8-84917-0 Bolt 3/8-19
FOR P TYPEBolt 3/8-19
FOR P TYPE -
13-53C8-84916-0 Collar 9.6-19-6
FOR P TYPECollar 9.6-19-6
FOR P TYPE -
13-6951503-0215 Split Pin
FOR P TYPESplit Pin
FOR P TYPE -
13-73F3-84908-0 Seal Ring Drag Link
FOR P TYPESeal Ring Drag Link
FOR P TYPE -
143T5-72050-0 New partNew part
