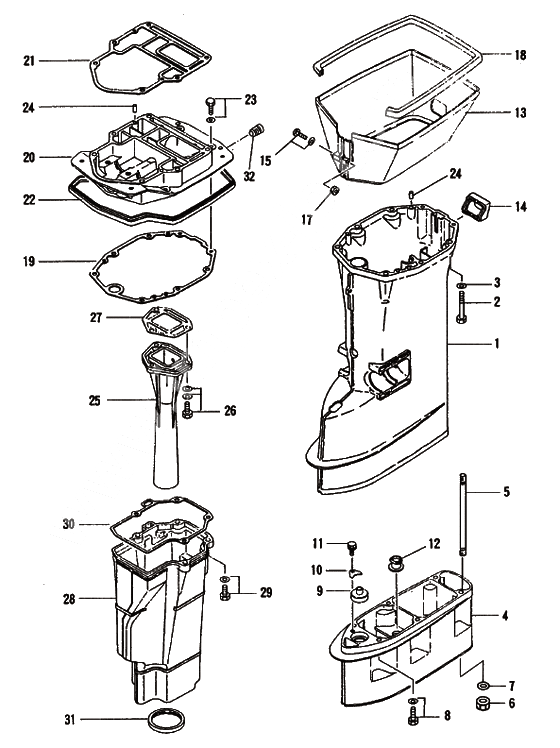

Drive shaft housing для Tohatsu MD50B (AQ) - 2006 года выпуска
-
№АртикулНазвание
-
13C8Q61191-1 Driveshaft housing s (amb)
FOR TRANSOM SDriveshaft housing s (amb)
FOR TRANSOM S -
3C8Q61191-3 Driveshaft housing s (amb)Driveshaft housing s (amb)
-
13C8Q61192-0 Drive shaft housing l (amb)
FOR TRANSOM L & ULDrive shaft housing l (amb)
FOR TRANSOM L & UL -
3C8Q61192-2 Drive shaft housing l (amb)Drive shaft housing l (amb)
-
2916113-0880 BoltBolt
-
3940113-0800 WasherWasher
-
43C8Q61110-0 Extension housing xl (amb)
FOR TRANSOM ULExtension housing xl (amb)
FOR TRANSOM UL -
5346-61111-1 Stud Bolt
FOR TRANSOM LLStud Bolt
FOR TRANSOM LL -
6930113-0800 NutNut
-
7940113-0800 WasherWasher
-
8910113-5835 Bolt
FOR TRANSOM ULBolt
FOR TRANSOM UL -
9346-66037-0 Holder Cam Rod
FOR TRANSOM ULHolder Cam Rod
FOR TRANSOM UL -
10353-66024-0 Stopper
FOR TRANSOM ULStopper
FOR TRANSOM UL -
11910103-6612 Bolt
FOR TRANSOM ULBolt
FOR TRANSOM UL -
12346-65204-0 Lock Rubber Water Pipe
WATER PIPE LOCKING RUBBERLock Rubber Water Pipe
WATER PIPE LOCKING RUBBER -
133C8Q61210-0 Splash pan (amb)Splash pan (amb)
-
3C8Q61210-1 Splash pan (amb)Splash pan (amb)
-
143C8-61212-0 Grommet Splash PanGrommet Splash Pan
-
15922513-5540 ScrewScrew
-
922503-0540 ScrewScrew
-
17930403-0500 Nylon NutNylon Nut
-
183C8-61213-0 Seal Rubber Splash PanSeal Rubber Splash Pan
-
193C8-61012-2 Gasket drive shaft housingGasket drive shaft housing
-
203T5Q01301-0 Engine base (amb)Engine base (amb)
-
213C8-01303-1 Base gasketBase gasket
-
3C8-01303-4 Base gasketBase gasket
-
223C8-67116-0 Seal Rubber Engine BaseSeal Rubber Engine Base
-
23910113-5625 BoltBolt
-
24345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
253E3-02311-0 Exhaust PipeExhaust Pipe
-
263C8-02319-0 BoltBolt
-
273C8-02312-0 Gasket exhaust pipeGasket exhaust pipe
-
283C8-61180-0 Exhaust HousingExhaust Housing
-
293C8-61184-0 BoltBolt
-
303C8-61181-1 Exhaust Housing GasketExhaust Housing Gasket
-
3C8-61181-2 Exhaust Housing GasketExhaust Housing Gasket
-
313C8-61182-0 Grommet exhaust housingGrommet exhaust housing
-
323H6-07257-0 Exhaust PlugExhaust Plug
