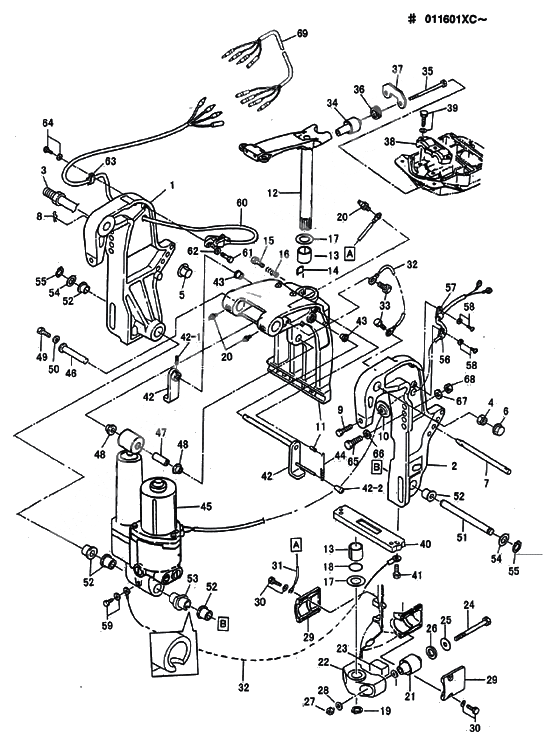

Bracket (2) power trim & tilt (new) для Tohatsu MD50B (AQ) - 2006 года выпуска
-
№АртикулНазвание
-
13Z5Q77211-0 Stern bracket right (amb)
STERN BRACKET (RIGHT) STARBOARDStern bracket right (amb)
STERN BRACKET (RIGHT) STARBOARD -
23Z5Q77212-0 Stern bracket left (amb)
STERN BRACKET (LEFT) PORTStern bracket left (amb)
STERN BRACKET (LEFT) PORT -
33AD-62191-0 Swivel bracket bolt (ptt)
BRACKET BOLT OR 3Z5-62191-0Swivel bracket bolt (ptt)
BRACKET BOLT OR 3Z5-62191-0 -
4346-62124-1 Bracket nutBracket nut
-
53C8-77213-0 Bushing Bracket BoltBushing Bracket Bolt
-
6346-62127-0 Cap,Bracket Bolt
FOR F TYPECap,Bracket Bolt
FOR F TYPE -
73R0-77118-0 Thrust RodThrust Rod
-
8951603-1000 R-PinR-Pin
-
93C8-77214-0 Винт струбциныВинт струбцины
-
10332-62101-0 Pad clamp screwPad clamp screw
-
113Z5Q77215-0 Swivel bracket ptt (amb)Swivel bracket ptt (amb)
-
123Z5Q62010-0 Steering shaft assy (amb)Steering shaft assy (amb)
-
13353-62417-0 BushingBushing
-
14345-62441-0 Friction PlateFriction Plate
-
15910113-0830 BoltBolt
-
16346-62421-1 Spring Friction PlateSpring Friction Plate
-
17353-62423-0 Thrust PlateThrust Plate
-
353-62423-1 Thrust PlateThrust Plate
-
18353-62415-0 O-RingO-Ring
-
19945103-2800 C-RingC-Ring
-
945127-2800 C-RingC-Ring
-
20344-67177-0 МасленкаМасленка
-
213C8-61302-0 Lower Mount RubberLower Mount Rubber
-
223Z5Q61411-0 Mount bracket (amb)Mount bracket (amb)
-
233C8-61336-0 Damper RubberDamper Rubber
-
243C8-61321-1 Bolt Lower Mount RubberBolt Lower Mount Rubber
-
25353-61334-0 WasherWasher
-
263C7-61338-0 Damper RubberDamper Rubber
-
27930403-1200 Nylon NutNylon Nut
-
28940213-1200 WasherWasher
-
293C8Q61342-0 Mount holding plate lower (amb)
RUBBER MOUNT CAP (LOWER)Mount holding plate lower (amb)
RUBBER MOUNT CAP (LOWER) -
30910113-5620 BoltBolt
-
313C8-62396-1 Ground Wire
L=210Ground Wire
L=210 -
32398-62396-1 Ground Wire
L=130Ground Wire
L=130 -
33910113-5612 BoltBolt
-
343E3-61301-1 Upper Mount RobberUpper Mount Robber
-
35353-61307-0 Bolt mount rubber upperBolt mount rubber upper
-
363E3-61333-0 Upper Damper RubberUpper Damper Rubber
-
373E3-61335-0 Upper Lock PlateUpper Lock Plate
-
383C8Q61341-0 Mount holding plate upper (amb)
RUBBER MOUNT CAP (UPPER)Mount holding plate upper (amb)
RUBBER MOUNT CAP (UPPER) -
39910113-5835 BoltBolt
-
403C7-60218-2 Anode, Stern BracketAnode, Stern Bracket
-
41910103-6630 BoltBolt
-
423Z5Q62470-1 Tilt stopper (ptt type)Tilt stopper (ptt type)
-
3GF-62466-1 Tilt stopper (ptt type)Tilt stopper (ptt type)
-
42-1951403-3516 New partNew part
-
42-2369-62433-1 Grip Tilt StopperGrip Tilt Stopper
-
43353-63207-0 Collar 10.2-12-12Collar 10.2-12-12
-
443R0-62473-0 Spring,Tilt StopperSpring,Tilt Stopper
-
453Z5Q77150-0 Power trim & tilt assy d40/50 (amb)Power trim & tilt assy d40/50 (amb)
-
3Z5-77150-1 Power trim & tilt assy d40/50 (amb)Power trim & tilt assy d40/50 (amb)
-
463R0-77071-0 Upper,Cylinder PinUpper,Cylinder Pin
-
473R0-77075-0 BushingBushing
-
483R0-77076-0 BushingBushing
-
49910113-0612 BoltBolt
-
50345-05122-0 New partNew part
-
513R0-77101-0 Lower,Cylinder PinLower,Cylinder Pin
-
523C8-77076-1 New partNew part
-
533Z5-77103-0 BushingBushing
-
543R0-77112-0 WasherWasher
-
55945103-1800 C-RingC-Ring
-
56336-06973-0 Clamp Lead WireClamp Lead Wire
-
57345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
58921503-5612 Stud BoltStud Bolt
-
59910113-5612 BoltBolt
-
603Z5-72574-0 Trim sensor (4-wire) - short - nla
4 WIRE L=1700 FOR P TYPETrim sensor (4-wire) - short - nla
4 WIRE L=1700 FOR P TYPE -
603Z4-72574-0 Trim sensor (2-wire)
2 WIRETrim sensor (2-wire)
2 WIRE -
61910113-0620 Bolt
FOR P TYPEBolt
FOR P TYPE -
623R0-66308-0 Washer
FOR P TYPEWasher
FOR P TYPE -
63336-06973-0 Clamp Lead Wire
FOR P TYPEClamp Lead Wire
FOR P TYPE -
64921503-5612 Stud Bolt
FOR P TYPEStud Bolt
FOR P TYPE -
653C7-62133-2 Bolt
L=105Bolt
L=105 -
66353-61334-0 WasherWasher
-
67940113-1200 Washer
OR 940103-1200Washer
OR 940103-1200 -
683C7-62139-1 Nut,P1.25Nut,P1.25
-
693F3-72573-1 Extension cord trim sender
4 WIRE FOR P TYPE L=6000Extension cord trim sender
4 WIRE FOR P TYPE L=6000 -
693T1-72573-0 Extension cord trim (2-wire) 6m
2 WIRE L=6000Extension cord trim (2-wire) 6m
2 WIRE L=6000
