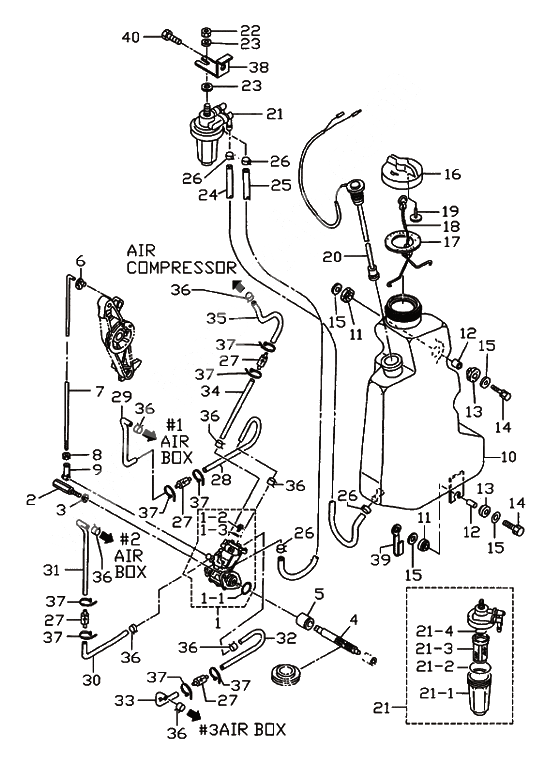

Oil pump для Tohatsu MD50B (AQ) - 2006 года выпуска
![](/wa-data/public/shop/sheme/tohatsu/e3d5e8e0ffeb8ac73da2dd635fb05e47.png)
-
№АртикулНазвание
-
13T5-09000-0 Oil Pump Ass'yOil Pump Ass'y
-
1-13B7-09002-0 O-RingO-Ring
-
1-23B7-09004-0 Bolt, Air VentBolt, Air Vent
-
1-33B7-09006-0 WasherWasher
-
23C8-09050-0 Bolt oil pumpBolt oil pump
-
3941303-0600 New partNew part
-
43C8-09065-0 Driven Gear Oil PumpDriven Gear Oil Pump
-
53C8-09069-0 BushingBushing
-
63C8-63733-0 Rod Snap 5-3Rod Snap 5-3
-
73C8-09053-0 Link rod oil pump
5-190Link rod oil pump
5-190 -
8930103-0500 NutNut
-
93B7-05243-0 New partNew part
-
103T5-71010-0 Oil TankOil Tank
-
113B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
12346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
13346-67113-0 Mount RubberMount Rubber
-
14910103-6630 BoltBolt
-
15346-67115-0 WasherWasher
-
163C8-71015-0 Cap Oil TankCap Oil Tank
-
173C8-71016-0 Gasket 36-52-2Gasket 36-52-2
-
183C8-71017-0 Hook Tank CapHook Tank Cap
-
193C8-71018-0 Check Valve Oil TankCheck Valve Oil Tank
-
203T5-71020-0 Oil Level SensorOil Level Sensor
-
213C7-71030-0 Filter Ass'yFilter Ass'y
-
21-13B7-02237-0 CupCup
-
21-23B7-02235-0 O-Ring AO-Ring A
-
21-33C7-71033-0 FilterFilter
-
21-43B7-02236-0 O???? bO???? b
-
22930113-0800 NutNut
-
23940113-0800 WasherWasher
-
2499AA-6-0570 Oil pipe (1 ea.=1.5 meter/59.05 inches)Oil pipe (1 ea.=1.5 meter/59.05 inches)
-
99AA-6-1000 Oil pipe (1 ea.=1.5 meter/59.05 inches)Oil pipe (1 ea.=1.5 meter/59.05 inches)
-
2599AA-6-0175 Oil pipe (1 ea.=1.5 meter/59.05 inches)Oil pipe (1 ea.=1.5 meter/59.05 inches)
-
99AA-6-1000 Oil pipe (1 ea.=1.5 meter/59.05 inches)Oil pipe (1 ea.=1.5 meter/59.05 inches)
-
26121-35143-0 ClipClip
-
273B7-09075-1 Check Valve CompleteCheck Valve Complete
-
2899AA-2-0140 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
2999AA-2-0200 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
3099AA-2-0200 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
3199AA-2-0140 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
3299AA-2-0200 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
3399AA-2-0100 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
3499AA-2-0120 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
3599AA-2-0160 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
363B7-09052-0 Clip 6.8Clip 6.8
-
369-70098-2 Clip 6.8Clip 6.8
-
373T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
383T5-02239-0 Plate, FilterPlate, Filter
-
393T4-06972-0 Плата струбциныПлата струбцины
-
40910103-6614 BoltBolt
