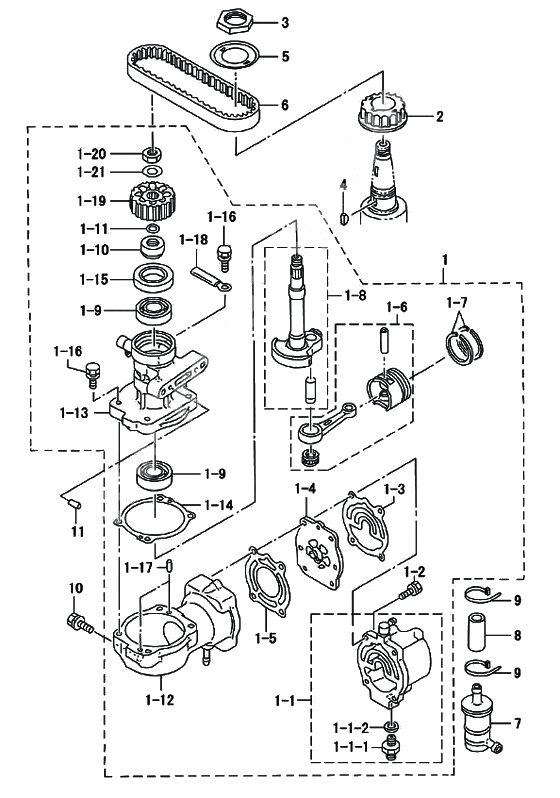

Air compressor для Tohatsu MD50B (AQ) - 2006 года выпуска
-
№АртикулНазвание
-
13T5B10000-3 Air compressor ass'y
041783XD~Air compressor ass'y
041783XD~ -
1-13Z5B10009-0 Compressor head assy
041783XD~Compressor head assy
041783XD~ -
1-1-13T5-04308-0 Adapter, Hose JointAdapter, Hose Joint
-
1-1-23T5-04309-0 Metal Washer, 10.2-17-2Metal Washer, 10.2-17-2
-
1-103T5-10042-0 Collar, 13.5-25-13Collar, 13.5-25-13
-
1-113T5-10046-0 O-RingO-Ring
-
1-123Z5B10048-0 ЦилиндрЦилиндр
-
1-133T5B10051-0 Housing,CompressorHousing,Compressor
-
1-143T5-10054-0 Gasket, Compressor HousingGasket, Compressor Housing
-
1-153T5-10041-0 Oil Seal,25-45-8Oil Seal,25-45-8
-
1-16910113-5625 BoltBolt
-
1-17334-65012-0 СтопорСтопор
-
1-18309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
1-193T5-10062-0 Driven PulleyDriven Pulley
-
1-2910124-7630 BoltBolt
-
1-20309-00132-0 Nut, MagnetoNut, Magneto
-
1-213B7-01116-0 WasherWasher
-
1-33T5-10012-0 Gasket, Compressor HeadGasket, Compressor Head
-
1-43T5-10010-0 Valve Ass'yValve Ass'y
-
1-53T5-10019-0 Gasket, Valve SeatGasket, Valve Seat
-
1-63T5-87330-1 Air compressor, piston, connecting rodAir compressor, piston, connecting rod
-
1-73T5-10025-0 Piston Ring,Air ComprassorPiston Ring,Air Comprassor
-
1-83T5-87331-0 Air compressor crank shaft ass'yAir compressor crank shaft ass'y
-
1-99601-0-6203 Ball BearingBall Bearing
-
23T5-10060-0 Drive PulleyDrive Pulley
-
33T5-10068-0 Nut, pulleyNut, pulley
-
43T5-10131-0 Key, Drive PulleyKey, Drive Pulley
-
53T5-10063-0 Belt GuideBelt Guide
-
63T5-10061-0 Drive BeltDrive Belt
-
73T5-10130-0 Воздушный фильтрВоздушный фильтр
-
898AC-9-0055 HoseHose
-
93T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
10910103-7835 BoltBolt
-
11334-65012-0 СтопорСтопор
