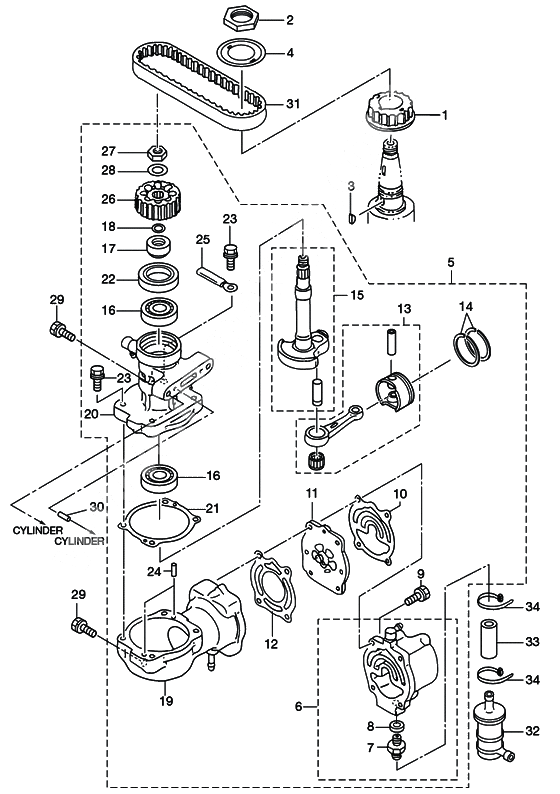

Air compressor для Tohatsu MD70B - 2010 года выпуска
-
№АртикулНазвание
-
13T9-10060-0 Drive PulleyDrive Pulley
-
23T5-10068-2 Nut pulleyNut pulley
-
33T5-10131-0 Key, Drive PulleyKey, Drive Pulley
-
43T5-10063-0 Belt GuideBelt Guide
-
53T9B10000-5 Air compressor assyAir compressor assy
-
3T9B10000-6 Air compressor assyAir compressor assy
-
63Z5B10009-1 Head compressor assy (with nipple)Head compressor assy (with nipple)
-
3Z5B10009-0 Head compressor assy (with nipple)Head compressor assy (with nipple)
-
73T5-04308-0 Adapter, Hose JointAdapter, Hose Joint
-
83T5-04309-0 Metal Washer, 10.2-17-2Metal Washer, 10.2-17-2
-
9910124-7630 BoltBolt
-
103T5-10012-1 Gasket compressor headGasket compressor head
-
113T5-10010-0 Valve Ass'yValve Ass'y
-
123T5-10019-0 Gasket, Valve SeatGasket, Valve Seat
-
133T5-87330-2 Piston rings & conn rod air compressorPiston rings & conn rod air compressor
-
3T5-87330-1 Piston rings & conn rod air compressorPiston rings & conn rod air compressor
-
143T5-10025-0 Piston Ring,Air ComprassorPiston Ring,Air Comprassor
-
153T5-87331-0 Air compressor crank shaft ass'yAir compressor crank shaft ass'y
-
169601-0-6203 Ball BearingBall Bearing
-
173T1-10042-0 Collar 13.5-25-13Collar 13.5-25-13
-
183T5-10046-0 O-RingO-Ring
-
193Y9B10048-1 Cylinder compressorCylinder compressor
-
3Y9B10048-2 Cylinder compressorCylinder compressor
-
203T5B10051-0 Housing,CompressorHousing,Compressor
-
213T5-10054-0 Gasket, Compressor HousingGasket, Compressor Housing
-
223T5-10041-0 Oil Seal,25-45-8Oil Seal,25-45-8
-
23910103-5625 BoltBolt
-
24334-65012-0 СтопорСтопор
-
25309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
263T5-10062-0 Driven PulleyDriven Pulley
-
27309-00132-0 Nut, MagnetoNut, Magneto
-
283B7-01116-0 WasherWasher
-
29910103-7835 BoltBolt
-
30334-65012-0 СтопорСтопор
-
313T9-10061-0 Drive BeltDrive Belt
-
323T5-10130-0 Воздушный фильтрВоздушный фильтр
-
3398AB-9-0055 Pipe
98AB-901000Pipe
98AB-901000 -
98AB-9-0230 PipePipe
-
343T5-84398-0 Band Lead Wire 104Band Lead Wire 104
