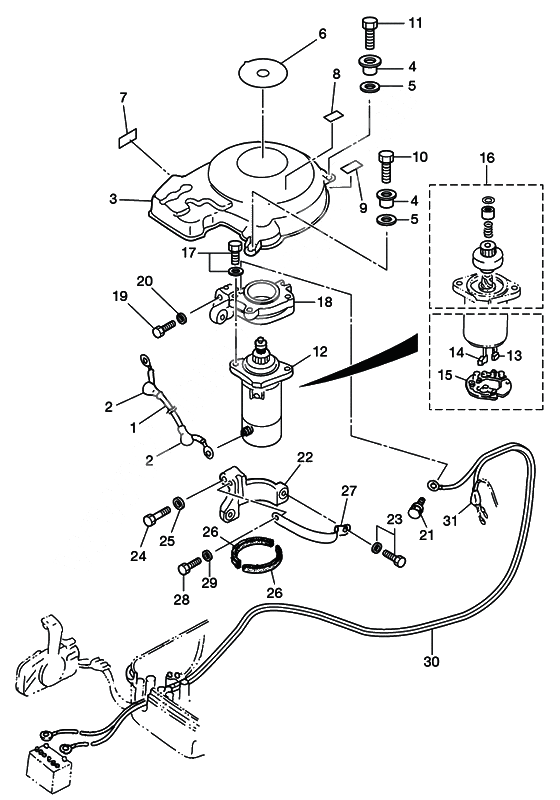

Electric parts (starter motor) для Tohatsu MD70B - 2010 года выпуска
-
№АртикулНазвание
-
13R3-76141-0 STARTER CORDSTARTER CORD
-
23A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
33T9-06301-0 Cover,ring gearCover,ring gear
-
43GF-06304-0 CollarCollar
-
53B7-06305-0 Mount Rubber, 9-16-4.3Mount Rubber, 9-16-4.3
-
63R0-72181-0 Caution Label BCaution Label B
-
73Y9-72194-0 Label FuseLabel Fuse
-
83T5-72186-0 Label, PressureLabel, Pressure
-
93Y7-72026-0 Spark Plug DecalSpark Plug Decal
-
10910103-0625 BoltBolt
-
11910103-0616 BoltBolt
-
12353-76010-4 Starter Motor Ass'yStarter Motor Ass'y
-
13353-76012-3 Brush (+)Brush (+)
-
14353-76013-3 Brush (-)Brush (-)
-
15353-76017-1 Brush SpringBrush Spring
-
16353-76015-1 Pinion Ass'yPinion Ass'y
-
17910103-6835 BoltBolt
-
183T9B05101-0 Bracket upper,starter motorBracket upper,starter motor
-
199161F4-0845 BoltBolt
-
916114-0845 BoltBolt
-
20941322-0800 Spring WasherSpring Washer
-
21910103-6614 BoltBolt
-
22353B76006-2 Bracket starter motorBracket starter motor
-
239101E3-5840 Bolt & washerBolt & washer
-
249161F4-0845 BoltBolt
-
916114-0845 BoltBolt
-
25941322-0800 Spring WasherSpring Washer
-
26353-76007-1 Rubber Starter MotorRubber Starter Motor
-
273T9B76009-0 Band,Starter MotorBand,Starter Motor
-
28910103-0820 BoltBolt
-
29940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
303B7-76120-2 Battery CordBattery Cord
-
313B7-76145-0 Terminal CapTerminal Cap
