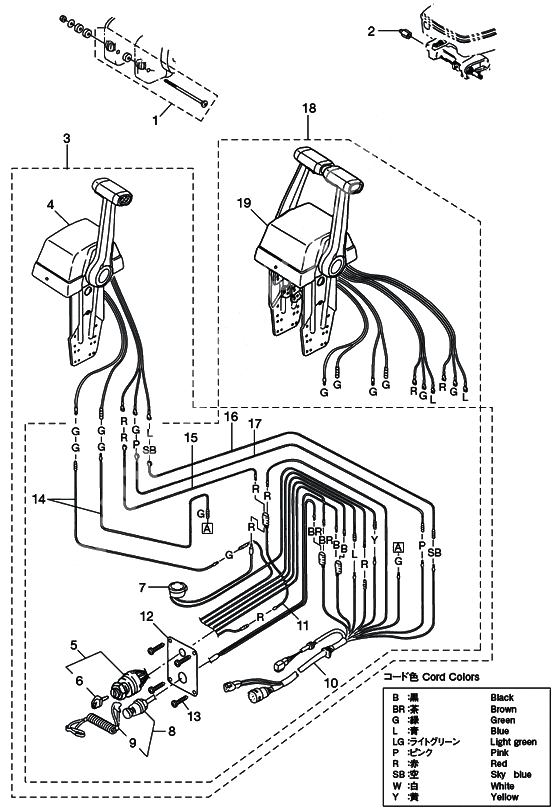

Optional parts (2) для Tohatsu MD70B - 2010 года выпуска
-
№АртикулНазвание
-
13A3-81301-0 Twin Remote Control Box KitTwin Remote Control Box Kit
-
2353-84904-0 Spacer Drag LinkSpacer Drag Link
-
33T5Q84490-1 Binnacle mount control box kit single 40/50/70/90 tldi (amb)Binnacle mount control box kit single 40/50/70/90 tldi (amb)
-
43T5Q84480-1 Binnacle mount control box kit single 40/50/70/90 tldi (amb)Binnacle mount control box kit single 40/50/70/90 tldi (amb)
-
3T5Q84490-1 Binnacle mount control box kit single 40/50/70/90 tldi (amb)Binnacle mount control box kit single 40/50/70/90 tldi (amb)
-
5353-76020-3 Main Switch Ass'yMain Switch Ass'y
-
63F3-76217-0 Key, main switch
TOP SINGLEKey, main switch
TOP SINGLE -
63F3-76218-0 Key, Main Switch (Earmark)
TOP SINGLEKey, Main Switch (Earmark)
TOP SINGLE -
63F3-76219-0 Key, Main Switch (Earmark)
TOP SINGLEKey, Main Switch (Earmark)
TOP SINGLE -
73C8-76171-0 Over-heat Buzzer
TOP SINGLEOver-heat Buzzer
TOP SINGLE -
83A3-06830-0 Emergency Stop Switch B Ass'y
TOP SINGLEEmergency Stop Switch B Ass'y
TOP SINGLE -
9353-06821-0 Lock, lanyard stop switch
TOP SINGLELock, lanyard stop switch
TOP SINGLE -
103T5-76115-1 Cord assy b (l=6200mm)
TOP SINGLECord assy b (l=6200mm)
TOP SINGLE -
11353-72546-0 Assist Cord(Red)
TOP SINGLEAssist Cord(Red)
TOP SINGLE -
123T5-76201-0 Panel Main Switch
TOP SINGLEPanel Main Switch
TOP SINGLE -
13921146-4516 Stud Bolt
TOP SINGLEStud Bolt
TOP SINGLE -
143C7-84471-1 Cord,Neutral Switch,Green
GREEN / TOP SINGLECord,Neutral Switch,Green
GREEN / TOP SINGLE -
153C7-84475-0 Cord,ptt Switch(red)
RED / TOP SINGLECord,ptt Switch(red)
RED / TOP SINGLE -
163C7-84476-0 Cord,ptt Switch(sky-blue)
SKY BLUE / TOP SINGLECord,ptt Switch(sky-blue)
SKY BLUE / TOP SINGLE -
173C7-84477-0 Cord PTT Switch,Pink
PINK / TOP SINGLECord PTT Switch,Pink
PINK / TOP SINGLE -
183T5Q84540-1 Binnacle mount control box kit dual 40/50/70/90 tldi (amb)Binnacle mount control box kit dual 40/50/70/90 tldi (amb)
-
193T5Q84520-1 Binnacle mount control box kit dual 40/50/70/90 tldi (amb)Binnacle mount control box kit dual 40/50/70/90 tldi (amb)
-
3T5Q84540-1 Binnacle mount control box kit dual 40/50/70/90 tldi (amb)Binnacle mount control box kit dual 40/50/70/90 tldi (amb)
