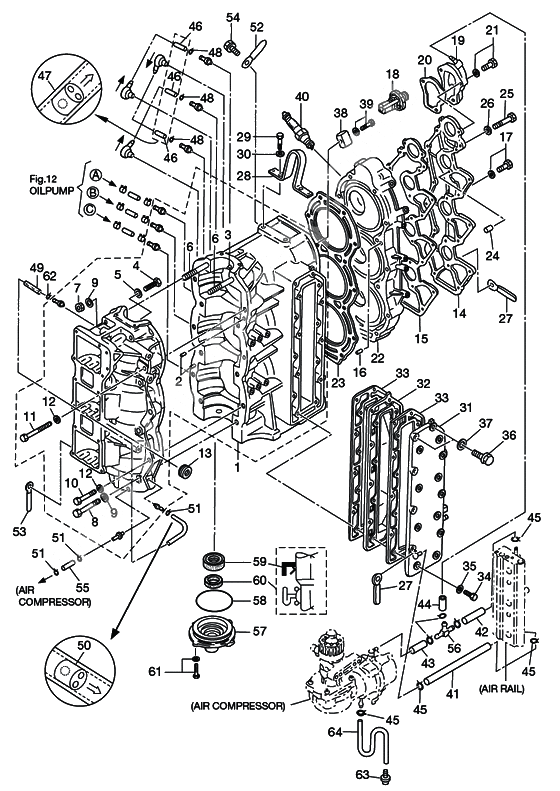

Cylinder & crank case для Tohatsu MD70B - 2010 года выпуска
-
№АртикулНазвание
-
13Y9B01100-3 Cylinder crankcase d70/90bCylinder crankcase d70/90b
-
3Y9B01100-0 Cylinder crankcase d70/90bCylinder crankcase d70/90b
-
2345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
33T9-00117-0 Knock, Main BearingKnock, Main Bearing
-
4910103-0618 BoltBolt
-
5353-76079-0 Collar 6.2-9-9.3Collar 6.2-9-9.3
-
6915324-1065 Stud BoltStud Bolt
-
7931121-1000 NutNut
-
8916129-1065 BoltBolt
-
93B7-01116-0 WasherWasher
-
10916124-0850 BoltBolt
-
11916124-0865 BoltBolt
-
12345-01015-0 WasherWasher
-
133B7-76093-0 Grommet, 25-5Grommet, 25-5
-
143T9B01021-0 Cover,Cylinder HeadCover,Cylinder Head
-
153T9-01024-0 Gasket,Cylinder Head CoverGasket,Cylinder Head Cover
-
16334-65012-0 СтопорСтопор
-
17910121-7625 BoltBolt
-
183C7-01030-0 New partNew part
-
193T9B01060-0 Cup, ThermostatCup, Thermostat
-
203T9-01032-1 Gasket thermostat capGasket thermostat cap
-
219101E3-5640 Bolt & washerBolt & washer
-
223T9B01001-1 Головка цилиндровГоловка цилиндров
-
233T9-01005-0 Gasket,Cylinder HeadGasket,Cylinder Head
-
24334-65012-0 СтопорСтопор
-
25916129-0875 BoltBolt
-
26345-01015-0 WasherWasher
-
273T5-06971-1 ClampClamp
-
3T5-06971-0 ClampClamp
-
283B7-01513-1 HangerHanger
-
3B7-01513-0 HangerHanger
-
299101F4-0820 BoltBolt
-
910114-0820 BoltBolt
-
30941322-0800 Spring WasherSpring Washer
-
313T9B02300-1 Exhaust cover outerExhaust cover outer
-
3T9B02300-0 Exhaust cover outerExhaust cover outer
-
323B7B02302-0 Exhaust Cover InnerExhaust Cover Inner
-
333B7-02305-2 Gasket exhaust coverGasket exhaust cover
-
349101F4-0835 BoltBolt
-
916114-0835 BoltBolt
-
35940121-0800 WasherWasher
-
369161F9-0840 BoltBolt
-
916119-0840 BoltBolt
-
379401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
383B7-60218-1 AnodeAnode
-
39910103-5630 BoltBolt
-
409701-1-1109 Spark plug izfr5jSpark plug izfr5j
-
4198AB-5-0290 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
4298AB-5-0065 Fuel pipe 5mm (1 ea.=1 meter)
AIR RAIL TO T-NIPPLE / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
AIR RAIL TO T-NIPPLE / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
4398AB-5-0065 Fuel pipe 5mm (1 ea.=1 meter)
T-NIPPLE TO COMPRESSOR / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
T-NIPPLE TO COMPRESSOR / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
4498AB-5-0115 Fuel pipe 5mm (1 ea.=1 meter)
T-NIPPLE TO CAP THERMOSTAT / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
T-NIPPLE TO CAP THERMOSTAT / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
45338-02215-0 ClipClip
-
4698AL-4-0185 Lube pipe (1 ea.=1m) must use 393011600m check valve
TRANSFER PASSAGE TO CYLINDER / 98AL-401000Lube pipe (1 ea.=1m) must use 393011600m check valve
TRANSFER PASSAGE TO CYLINDER / 98AL-401000 -
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valveLube pipe (1 ea.=1m) must use 393011600m check valve
-
47393-01160-0 Check ValveCheck Valve
-
48338-01133-0 ClipClip
-
4998AL-4-0520 Lube pipe (1 ea.=1m) must use 393011600m check valve
# 3 CRANK CASE ~ BEARING / UPPER / 98AL-401000Lube pipe (1 ea.=1m) must use 393011600m check valve
# 3 CRANK CASE ~ BEARING / UPPER / 98AL-401000 -
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valveLube pipe (1 ea.=1m) must use 393011600m check valve
-
50393-01160-0 Check ValveCheck Valve
-
51338-01133-0 ClipClip
-
52309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
53398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
54910103-6612 BoltBolt
-
5598AL-4-0380 Lube pipe (1 ea.=1m) must use 393011600m check valve
AIR COMPRESSOR ~ # 3 / CRANK CASE / 98AL-401000Lube pipe (1 ea.=1m) must use 393011600m check valve
AIR COMPRESSOR ~ # 3 / CRANK CASE / 98AL-401000 -
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valveLube pipe (1 ea.=1m) must use 393011600m check valve
-
563T7-01175-0 T-NippleT-Nipple
-
573B7-01291-2 Head l/crank caseHead l/crank case
-
58171-00053-0 O-RingO-Ring
-
593T9-00121-0 Oil Seal,35-58-9Oil Seal,35-58-9
-
603C7-01215-0 Oil Seal, 19.6-35-10Oil Seal, 19.6-35-10
-
61910103-5620 BoltBolt
-
62338-01133-0 ClipClip
-
633BA-01138-0 Water NippleWater Nipple
-
6498AB-5-0310 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
