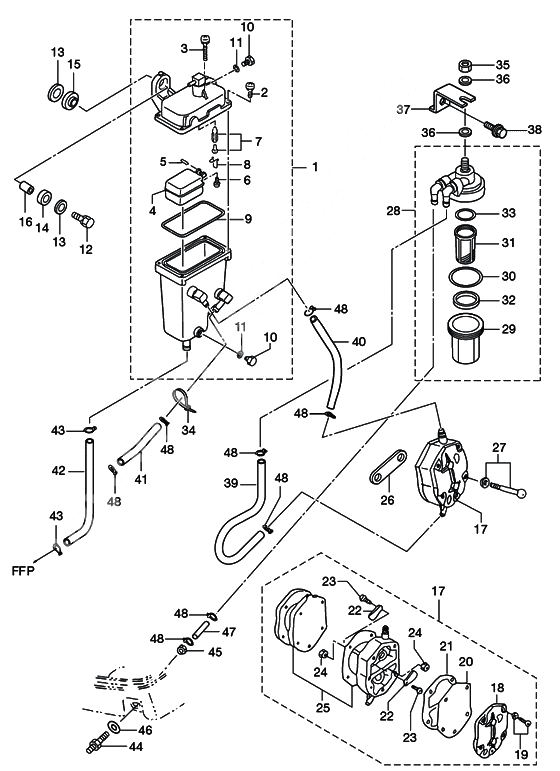

Vapor separator & fuel line для Tohatsu MD70B - 2010 года выпуска
-
№АртикулНазвание
-
13T5-10150-1 Vapor separator assyVapor separator assy
-
2922531-6414 Stud BoltStud Bolt
-
3921503-6430 Stud BoltStud Bolt
-
43T5-03230-0 Float, Vapor SeparaterFloat, Vapor Separater
-
53F3-03232-0 Arm Pin FloatArm Pin Float
-
6921503-0408 Stud BoltStud Bolt
-
73R3-03239-0 Floato Valve Assy
WITH VALVE PINFloato Valve Assy
WITH VALVE PIN -
8344-03244-0 ClipClip
-
93T5-03235-0 O-RingO-Ring
-
10345-03292-0 Drain ScrewDrain Screw
-
11336-03293-0 O-RingO-Ring
-
12910103-6630 BoltBolt
-
13346-67115-0 WasherWasher
-
14346-67113-0 Mount RubberMount Rubber
-
153B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
16346-67114-1 SpacerSpacer
-
346-67114-0 SpacerSpacer
-
17356-04000-1 New partNew part
-
18334-04004-0 Fuel CoverFuel Cover
-
199225F2-6528 ScrewScrew
-
922512-6528 ScrewScrew
-
20334-04005-0 New partNew part
-
21334-04007-0 Gasket B DiaphragmGasket B Diaphragm
-
22356-04044-0 Check ValveCheck Valve
-
23921722-0306 Stud BoltStud Bolt
-
24930222-0300 NutNut
-
25356-04030-0 New partNew part
-
26346-04901-1 GasketGasket
-
346-04901-2 GasketGasket
-
27910103-6640 BoltBolt
-
283T5-02230-0 Fuel Filter Ass'yFuel Filter Ass'y
-
293B7-02237-0 CupCup
-
303B7-02235-0 O-Ring AO-Ring A
-
313B7-02234-0 FilterFilter
-
323T5-02229-0 Float, Fuel FilterFloat, Fuel Filter
-
333B7-02236-0 O???? bO???? b
-
34369-84398-0 Band Lead Wire,158Band Lead Wire,158
-
35930103-0800 NutNut
-
36940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
373T5-02239-0 Plate, FilterPlate, Filter
-
38910103-6614 BoltBolt
-
3998AB-5-0280 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
4098AB-5-0210 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
4198AB-5-0075 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
4298AB-7-0210 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
98AB-701000Fuel pipe 7mm/5/16in (1 ea.=1 meter)
98AB-701000 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
433C7-02215-0 ClipClip
-
443B2-70260-1 New partNew part
-
453T9-70253-0 NutNut
-
463T9-70264-0 BushingBushing
-
4798AB-5-0450 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
48338-02215-0 ClipClip
