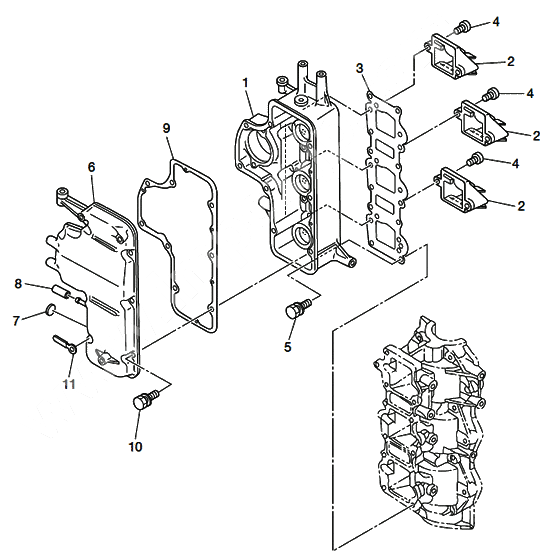

Air chamber (air box) для Tohatsu MD40B2 - 2011 года выпуска
-
№АртикулНазвание
-
13T5B02240-0 Air BoxAir Box
-
23T5-02100-1 Reed valve assyReed valve assy
-
33T5-02104-1 Gasket inlet manifoldGasket inlet manifold
-
3T5-02104-2 Gasket inlet manifoldGasket inlet manifold
-
4921521-6516 Stud BoltStud Bolt
-
53T5-02241-0 Bolt, 6-25 PrecoatedBolt, 6-25 Precoated
-
63GFB02246-0 Cover air box
WITH NIPPLECover air box
WITH NIPPLE -
7345-76092-0 GrommetGrommet
-
83GF-01139-0 GrommetGrommet
-
93T5-02245-0 Gasket, Air Box CoverGasket, Air Box Cover
-
10910103-5625 BoltBolt
-
113Z5-06972-1 Clamp 6.5-120pClamp 6.5-120p
-
3Z5-06972-0 Clamp 6.5-120pClamp 6.5-120p
