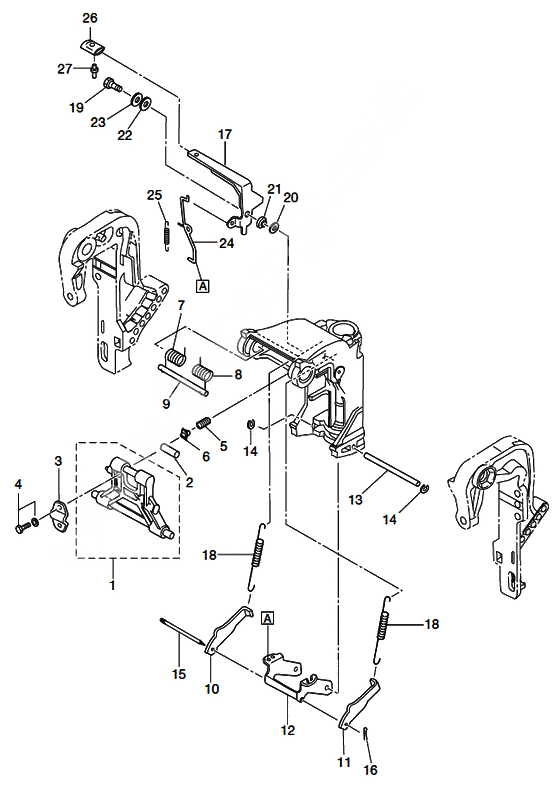

Manual tilt (m model) для Tohatsu MD40B2 - 2011 года выпуска
-
№АртикулНазвание
-
13C8Q62431-0 Tilt stopper (amb)Tilt stopper (amb)
-
3C8Q62993-2 Tilt stopper (amb)Tilt stopper (amb)
-
2346-62437-0 BushingBushing
-
3346-62439-1 Set plateSet plate
-
49101E3-5820 BoltBolt
-
910103-5820 BoltBolt
-
53C8-62421-1 Spring Friction PlateSpring Friction Plate
-
6346-62438-0 Set PieceSet Piece
-
73E3-62141-0 Spring R Tilt AssistantSpring R Tilt Assistant
-
83E3-62142-0 Spring L Tilt AssistantSpring L Tilt Assistant
-
93C8-62143-0 Shaft Tilt AssistantShaft Tilt Assistant
-
103C8-66352-2 Reverse Lock LReverse Lock L
-
113C8-66351-2 Reverse Lock RReverse Lock R
-
123C8-66313-4 Arm reverse lockArm reverse lock
-
133C8-66319-1 Shaft Reverse LockShaft Reverse Lock
-
14945303-0600 E-RingE-Ring
-
153C8-66321-0 Rod Reverse LockRod Reverse Lock
-
16951503-0212 Split PinSplit Pin
-
173E3-62436-1 Lever tilt stopperLever tilt stopper
-
183C8-66332-2 Spring L Reverse Lock
FOR TRANSOM LSpring L Reverse Lock
FOR TRANSOM L -
183C8-66331-2 Spring S Reverse Lock
FOR TRANSOM SSpring S Reverse Lock
FOR TRANSOM S -
193AL-05254-0 Shoulder boltShoulder bolt
-
203R0-66308-0 WasherWasher
-
213AL-05212-0 BushingBushing
-
223AA-83719-0 WasherWasher
-
23940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
243C8-66318-1 Link BLink B
-
253C8-66336-0 Spring BSpring B
-
26346-66333-0 GripGrip
-
27346-66334-0 StopperStopper
