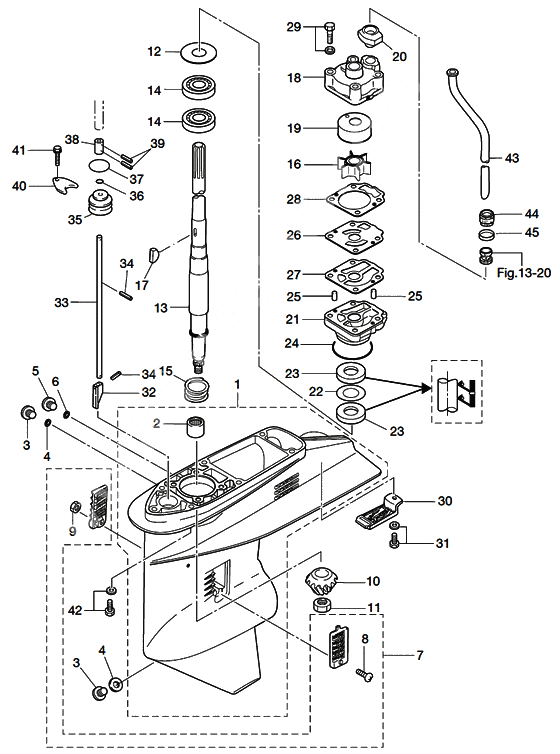

Gear case (drive shaft) для Tohatsu MD40B2 - 2011 года выпуска
-
№АртикулНазвание
-
13C8Q60000-0 Gear case s/l (amb)
FOR TRANSOM S LGear case s/l (amb)
FOR TRANSOM S L -
13C8Q60090-0 Gear case ul (amb)
FOR TRANSOM UL WITH SUBWATER PIPEGear case ul (amb)
FOR TRANSOM UL WITH SUBWATER PIPE -
2345-60211-0 Needle Bearing 22-30-30Needle Bearing 22-30-30
-
3332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
4332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
53B7-60015-1 Water PlugWater Plug
-
63B7-60016-1 Gasket, 10.1-15-1Gasket, 10.1-15-1
-
73C8-60205-1 Strainer set for low water pick upStrainer set for low water pick up
-
8921503-0438 Stud BoltStud Bolt
-
9930403-0400 Nylon NutNylon Nut
-
103C8-64020-2 New partNew part
-
113C8-64027-0 Nut Bevel Gear BNut Bevel Gear B
-
12345-64081-0 Shim, 41-51.5-0.1Shim, 41-51.5-0.1
-
12345-64082-0 Shim,41-51.5-0.15Shim,41-51.5-0.15
-
12345-64083-0 Shim,41-51.5-0.3Shim,41-51.5-0.3
-
12345-64084-0 Shim,41-51.5-0.5Shim,41-51.5-0.5
-
133C8-64301-0 Drive Shaft S
FOR TRANSOM SDrive Shaft S
FOR TRANSOM S -
133C8-64302-0 Drive shaft l
FOR TRANSOM LDrive shaft l
FOR TRANSOM L -
133C8-64303-0 Drive Shaft UL
FOR TRANSOM ULDrive Shaft UL
FOR TRANSOM UL -
143C8-60213-0 Ball Bearing 6304Ball Bearing 6304
-
153C8-64327-0 Spring Drive ShaftSpring Drive Shaft
-
163C8-65021-2 Impeller water pumpImpeller water pump
-
17332-65022-0 Key, pump impellerKey, pump impeller
-
183T5-65016-0 Water Pump CaseWater Pump Case
-
193T5-65011-0 Liner, Water Pump CaseLiner, Water Pump Case
-
203C8-65014-0 Lower Seal Rubber Water PipeLower Seal Rubber Water Pipe
-
213C8-65017-1 Lower Water Pump CaseLower Water Pump Case
-
223C8-64084-0 Shim,32.9-26-0.5Shim,32.9-26-0.5
-
233C8-60223-0 Packing 17-33-6Packing 17-33-6
-
24345-65015-0 O-RingO-Ring
-
25334-65012-0 СтопорСтопор
-
263C8-65025-0 GUIDE PLATE,PUMPGUIDE PLATE,PUMP
-
273C8-65029-2 Gasket Pump Guide PlateGasket Pump Guide Plate
-
283T5-65018-2 Gasket, Water Pump CaseGasket, Water Pump Case
-
299101E3-5855 BoltBolt
-
910103-5855 BoltBolt
-
303C8-60204-0 Sub Water StrainerSub Water Strainer
-
31910103-5616 BoltBolt
-
323C8-66011-0 Clutch CamClutch Cam
-
333C8-66012-0 Cam rod s
FOR TRANSOM SCam rod s
FOR TRANSOM S -
333C8-66013-0 Cam Rod L
FOR TRANSOM LCam Rod L
FOR TRANSOM L -
333C8-66014-0 Cam Rod UL
FOR TRANSOM ULCam Rod UL
FOR TRANSOM UL -
34951407-0312 Spring WasherSpring Washer
-
353C8-66031-1 Bushing Cam RodBushing Cam Rod
-
36332-66021-0 O-RingO-Ring
-
373C8-66032-0 O-RingO-Ring
-
383C8-66241-0 Joint Shift RodJoint Shift Rod
-
39951403-0312 Spring WasherSpring Washer
-
40353-66024-0 StopperStopper
-
41910103-6612 BoltBolt
-
429101E3-5835 Bolt & washerBolt & washer
-
433C8-65100-0 Water pipe s
FOR TRANSOM SWater pipe s
FOR TRANSOM S -
433C8-65110-0 Water Pipe L
FOR TRANSOM LWater Pipe L
FOR TRANSOM L -
433C8-65120-0 Water Pipe UL
FOR TRANSOM ULWater Pipe UL
FOR TRANSOM UL -
44345-65206-0 Upper Seal Rubber Water PipeUpper Seal Rubber Water Pipe
-
45345-65205-0 Collar, 18-20-4.5Collar, 18-20-4.5
