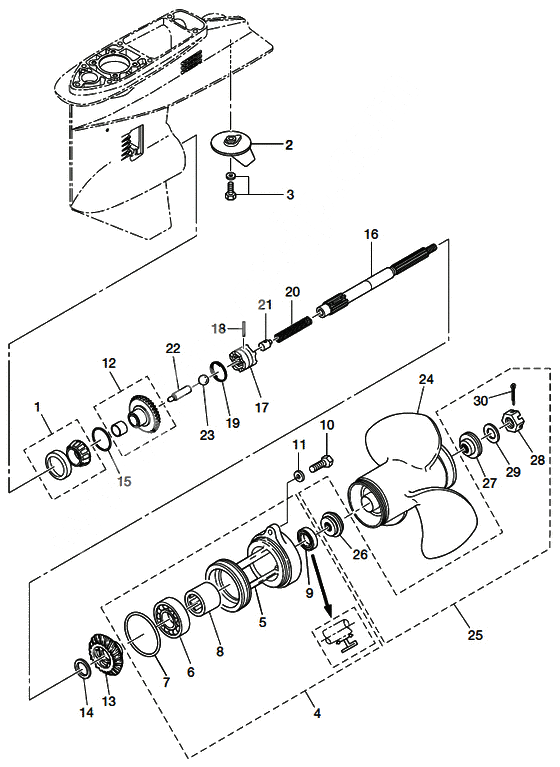

Gear case (propeller shaft) для Tohatsu MD40B2 - 2011 года выпуска
-
№АртикулНазвание
-
1345-60215-0 Taper roller bearing, 32007Taper roller bearing, 32007
-
23C8-60217-1 Trim TabTrim Tab
-
3910103-5620 BoltBolt
-
43C8Q60100-0 Prop shaft housing assy (amb)Prop shaft housing assy (amb)
-
53C8Q60101-0 Housing propeller shaft (amb)Housing propeller shaft (amb)
-
69601-0-6007 Ball bearing, 6007Ball bearing, 6007
-
7345-60103-0 O-RingO-Ring
-
8345-60211-0 Needle Bearing 22-30-30Needle Bearing 22-30-30
-
9334-60223-0 Oil seal, 22-36-10Oil seal, 22-36-10
-
103C8-60108-1 Bolt 6-25Bolt 6-25
-
3C8-60108-2 Bolt 6-25Bolt 6-25
-
119401E3-0600 WasherWasher
-
940113-0600 WasherWasher
-
123C8-64010-1 Bevel Gear ABevel Gear A
-
133C8-64030-0 Bevel Gear CBevel Gear C
-
14345-64032-0 WasherWasher
-
15353-64036-0 Shim, 36-44-0.3Shim, 36-44-0.3
-
15353-64037-0 Shim,36-44-0.15Shim,36-44-0.15
-
15353-64038-0 Shim,36-44-0.1Shim,36-44-0.1
-
163C8-64211-0 Propeller ShaftPropeller Shaft
-
173C8-64215-2 New partNew part
-
183C8-64217-0 Clutch PinClutch Pin
-
193C8-64219-1 Snap, Clutch PinSnap, Clutch Pin
-
203C8-64221-0 Spring WasherSpring Washer
-
213C8-64222-0 Spring holder clutchSpring holder clutch
-
223C8-64223-1 Push rod, clutchPush rod, clutch
-
23965002-0803 Steel ball, 3/8Steel ball, 3/8
-
243T5B64527-0 Prop 40c/40d 50d (11.1 dia. x 13 pitch) black
STD.50PS/ITALY 40PSProp 40c/40d 50d (11.1 dia. x 13 pitch) black
STD.50PS/ITALY 40PS -
243T5B64523-0 Prop 40c/40d 50d (11.6 dia. x 11 pitch) black
STD.30PSProp 40c/40d 50d (11.6 dia. x 11 pitch) black
STD.30PS -
243T5B64525-0 Prop 40c/40d 50d (11.4 dia. x 12 pitch) black
STD.40PSProp 40c/40d 50d (11.4 dia. x 12 pitch) black
STD.40PS -
24348B64108-0 Prop 40c d-50d (11.4 dia. x 7.1 pitch) 4 blade
OPTProp 40c d-50d (11.4 dia. x 7.1 pitch) 4 blade
OPT -
348B64108-1 Prop 40c d-50d (11.4 dia. x 7.1 pitch) 4 bladeProp 40c d-50d (11.4 dia. x 7.1 pitch) 4 blade
-
243T5B64518-0 Prop 40d/50d (12.1 dia. x 9 pitch) black-will not fit 40c
OPTProp 40d/50d (12.1 dia. x 9 pitch) black-will not fit 40c
OPT -
243T5B64529-0 Prop 40c/40d 50d (11.1 dia. x 14 pitch) black
OPTProp 40c/40d 50d (11.1 dia. x 14 pitch) black
OPT -
243T5B64532-0 Prop 40c/40d 50d (11.0 dia x 15 pitch) black
OPTProp 40c/40d 50d (11.0 dia x 15 pitch) black
OPT -
253T5-87326-0 Propeller Hardwear KitPropeller Hardwear Kit
-
263C8-64231-0 Thrust holder propellerThrust holder propeller
-
27348-64232-0 Stopper PropellerStopper Propeller
-
28353-64121-0 Nut PropellerNut Propeller
-
29345-64124-0 WasherWasher
-
30951503-0325 Split PinSplit Pin
