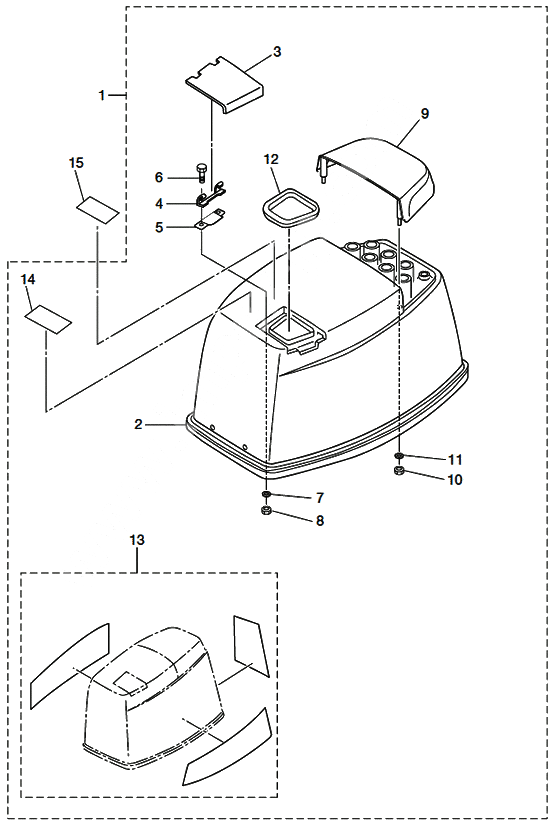

Top cowl для Tohatsu MD40B2 - 2011 года выпуска
-
№АртикулНазвание
-
13GFQ67645-1 Motor cover upper md40b2/50b2 (aqua marine blue)
TOHATSUMotor cover upper md40b2/50b2 (aqua marine blue)
TOHATSU -
3GFQ67645-4 Motor cover upper md40b2/50b2 (aqua marine blue)Motor cover upper md40b2/50b2 (aqua marine blue)
-
13Z7Q67645-0 Motor cover upper nsd40/50 (aqua marine blue)
NISSANMotor cover upper nsd40/50 (aqua marine blue)
NISSAN -
3Z7Q67645-4 Motor cover upper nsd40/50 (aqua marine blue)Motor cover upper nsd40/50 (aqua marine blue)
-
23C8-67501-0 Seal rubber motor cover upperSeal rubber motor cover upper
-
33E3Q67210-1 Filler lid (aqua marine blue)Filler lid (aqua marine blue)
-
43B7-67211-0 Hinge, Filler LidHinge, Filler Lid
-
53C8-67212-1 Spring filler lidSpring filler lid
-
6910103-0614 BoltBolt
-
7941303-0600 New partNew part
-
8930103-0600 Nut
FOR FILLER LIDNut
FOR FILLER LID -
93E3Q67521-1 Tilt handle (aqua marine blue)Tilt handle (aqua marine blue)
-
3E3Q67521-0 Tilt handle (aqua marine blue)Tilt handle (aqua marine blue)
-
10930403-0600 Nylon Nut
FOR TILT HANDLENylon Nut
FOR TILT HANDLE -
113C8-66308-0 New partNew part
-
123E3-67213-0 Seal Rubber Filler LidSeal Rubber Filler Lid
-
133GG-87802-1 Decal set md40b2 (aqua marine blue)
TOHATSU 40PSDecal set md40b2 (aqua marine blue)
TOHATSU 40PS -
3GG-87802-3 Decal set md40b2 (aqua marine blue)Decal set md40b2 (aqua marine blue)
-
133Z6N87802-0 Decal set nsd40b (aqua marine blue)
NISSAN - 40PSDecal set nsd40b (aqua marine blue)
NISSAN - 40PS -
143C7-72180-3 Caution labelCaution label
-
3C7-72180-0 Caution labelCaution label
-
153T1-72043-0 Oil caution decalOil caution decal
