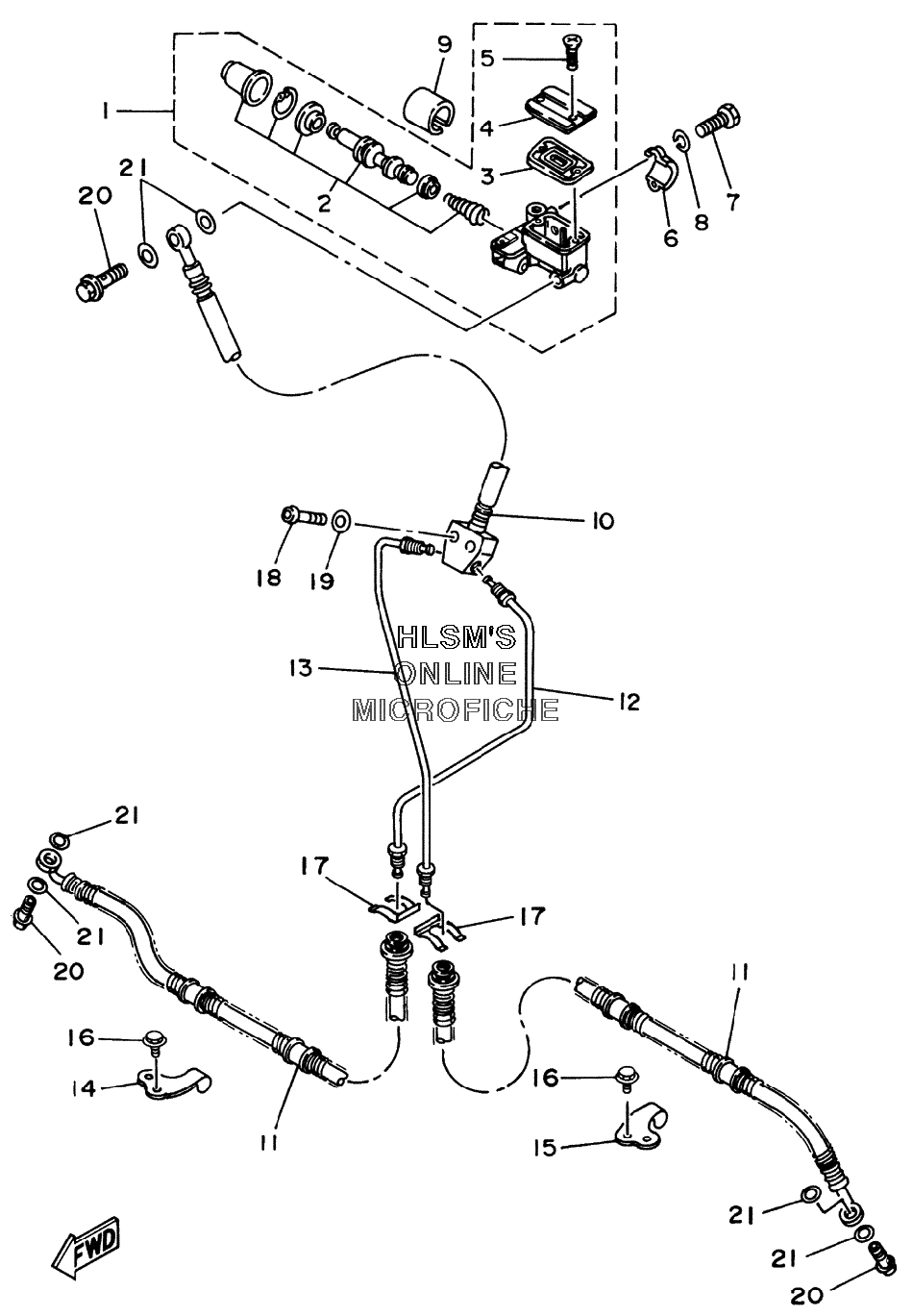

BRAKE - FRONT MASTER CYLINDER для Yamaha WOLVERINE YFM35FXM (4KBG) - 2000 года выпуска
-
№АртикулНазвание
-
12GU-25870-00-00 MASTER CYLINDER SUB ASSEMBLYMASTER CYLINDER SUB ASSEMBLY
-
24H7-W0041-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34L0-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
44H7-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
598706-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
656A-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
797007-06025-00 BOLTBOLT
-
892907-06600-00 WASHER, PLATEWASHER, PLATE
-
91UY-26259-00-00 COLLARCOLLAR
-
104KB-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
114KB-25873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
124KB-25871-00-00 PIPE, BRAKEPIPE, BRAKE
-
134KB-25882-00-00 PIPE, BRAKE 2PIPE, BRAKE 2
-
144GB-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
154GB-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
1695827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
172GU-25866-00-00 CIRCLIPCIRCLIP
-
1897027-08030-00 BOLTBOLT
-
1992907-08600-00 WASHER, PLATEWASHER, PLATE
-
2090401-10159-00 BOLT, UNIONBOLT, UNION
-
2190201-10118-00 WASHER, PLATEWASHER, PLATE
