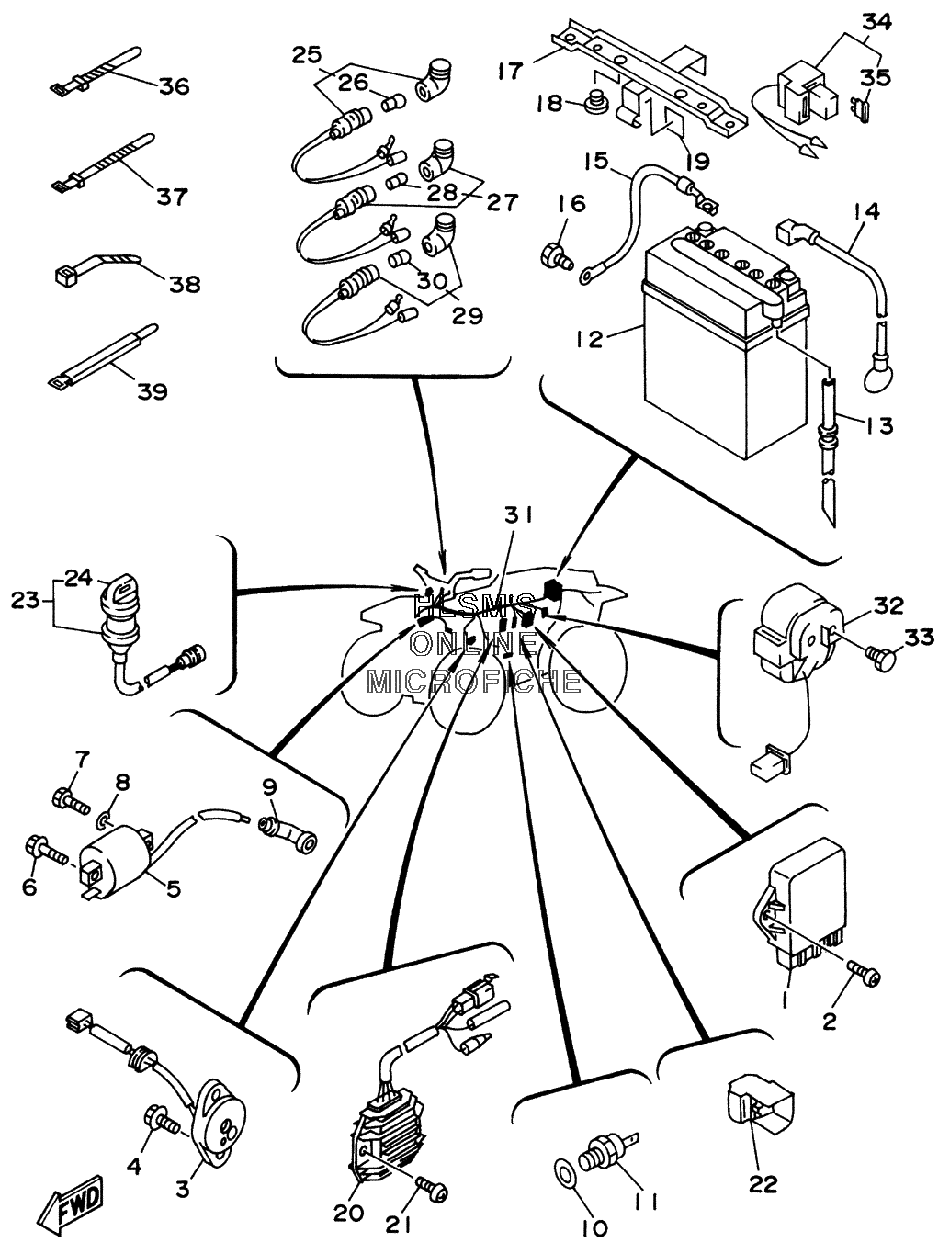

ELECTRICAL для Yamaha WOLVERINE YFM35FXM (4KBG) - 2000 года выпуска
-
№АртикулНазвание
-
14KB-85540-30-00 C.D.I UNIT ASSEMBLYC.D.I UNIT ASSEMBLY
-
298907-06020-00 SCREW, BINDSCREW, BIND
-
34KB-82540-01-00 NEUTRAL SWITCH ASSEMBLYNEUTRAL SWITCH ASSEMBLY
-
490119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
54KB-82310-00-00 IGNITION COIL ASSEMBLYIGNITION COIL ASSEMBLY
-
690109-06723-00 BOLTBOLT
-
797007-06020-00 BOLTBOLT
-
892907-06600-00 WASHER, PLATEWASHER, PLATE
-
9371-82370-00-00 PLUG CAP ASSEMBLYPLUG CAP ASSEMBLY
-
1090201-12172-00 WASHER, PLATEWASHER, PLATE
-
112HT-82560-10-00 THERMO SWITCH ASSEMBLYTHERMO SWITCH ASSEMBLY
-
121UY-82110-61-00 BATTERY ASSEMBLYBATTERY ASSEMBLY
-
1390445-086G1-00 HOSEHOSE
-
144KB-82115-10-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
154KB-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
1690153-06044-00 SCREW, HEXAGONSCREW, HEXAGON
-
174KB-82128-01-00 BRACKET, BATTERYBRACKET, BATTERY
-
1822W-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1934M-2139X-00-00 DAMPERDAMPER
-
204KB-81960-02-00 RECTIFIER & REGULATOR ASSEMBLYRECTIFIER & REGULATOR ASSEMBLY
-
2198907-06020-00 SCREW, BINDSCREW, BIND
-
2229U-81950-93-00 RELAY ASSEMBLYRELAY ASSEMBLY
-
234GB-82510-10-00 MAIN SWITCH ASSEMBLYMAIN SWITCH ASSEMBLY
-
243HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
2524W-83530-01-00 PILOT LIGHT ASSEMBLY (GREEN)PILOT LIGHT ASSEMBLY (GREEN)
-
26123-83516-21-00 ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
2752G-83530-01-00 PILOT LIGHT ASSEMBLY (RED)PILOT LIGHT ASSEMBLY (RED)
-
28123-83516-21-00 ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
292HR-83530-01-00 PILOT LIGHT ASSEMBLYPILOT LIGHT ASSEMBLY
-
30123-83516-21-00 ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
314KB-82590-30-00 WIRE HARNESS ASSEMBLYWIRE HARNESS ASSEMBLY
-
324KB-81940-00-00 STARTER RELAY ASSEMBLYSTARTER RELAY ASSEMBLY
-
3395027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
344KB-82150-00-00 FUSE HOLDER ASSEMBLYFUSE HOLDER ASSEMBLY
-
351AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
36437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
37437-83936-11-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
3890465-10098-00 CLAMPCLAMP
-
39341-26397-01-00 BANDBAND
