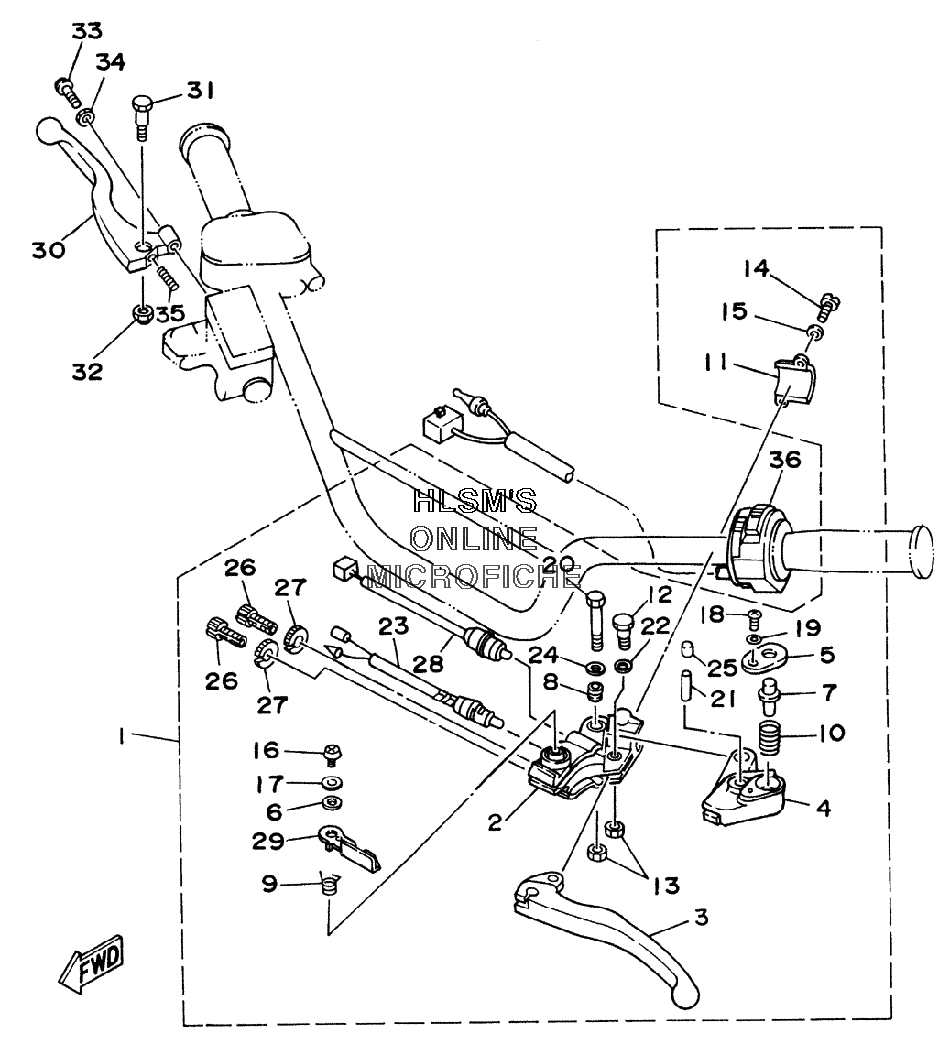

HANDLEBAR - SWITCHES/LEVERS для Yamaha WOLVERINE YFM35FXM (4KBG) - 2000 года выпуска
-
№АртикулНазвание
-
14KB-82910-10-00 LEVER HOLDER ASSEMBLY (LEFT)LEVER HOLDER ASSEMBLY (LEFT)
-
24KB-82911-00-00 ...HOLDER, LEVER 1...HOLDER, LEVER 1
-
31UY-83912-01-00 ...LEVER 1...LEVER 1
-
41UY-83922-01-00 ...LEVER 2...LEVER 2
-
51UY-83935-00-00 ...COVER...COVER
-
61UY-83909-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
71UY-83967-00-00 ...PIN, LOCK 1...PIN, LOCK 1
-
81UY-83913-00-00 ...COLLAR, LEVER 1...COLLAR, LEVER 1
-
91UY-83966-00-00 ...SPRING, RETURN...SPRING, RETURN
-
101UY-83962-00-00 ...SPRING...SPRING
-
112XJ-82913-00-00 ...HOLDER, LEVER LOWER 1...HOLDER, LEVER LOWER 1
-
1290109-06576-00 ...BOLT...BOLT
-
1395607-06100-00 ...NUT, U...NUT, U
-
1497027-06025-00 ...BOLT...BOLT
-
1592907-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
1698507-05010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1792907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
1898507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1992907-03600-00 ...WASHER...WASHER
-
2097007-06040-00 ...BOLT...BOLT
-
2191690-40022-00 ...PIN, SPRING...PIN, SPRING
-
2290201-082A9-00 ...WASHER, PLATE...WASHER, PLATE
-
231UY-82917-00-00 ...SWITCH...SWITCH
-
2492907-06200-00 ...WASHER...WASHER
-
251UY-83956-00-00 ...CAP 1...CAP 1
-
2690123-08046-00 ...BOLT...BOLT
-
2790179-08148-00 ...NUT...NUT
-
284KB-82917-00-00 ...SWITCH...SWITCH
-
294KB-W8393-00-00 ...LOCK, LEVER ASSEMBLY...LOCK, LEVER ASSEMBLY
-
301RX-83922-01-00 LEVER 2LEVER 2
-
3190109-06577-00 BOLTBOLT
-
3295607-06100-00 NUT, UNUT, U
-
3390149-06131-00 SCREWSCREW
-
3490170-06010-00 NUTNUT
-
3590501-10312-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
364GB-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
