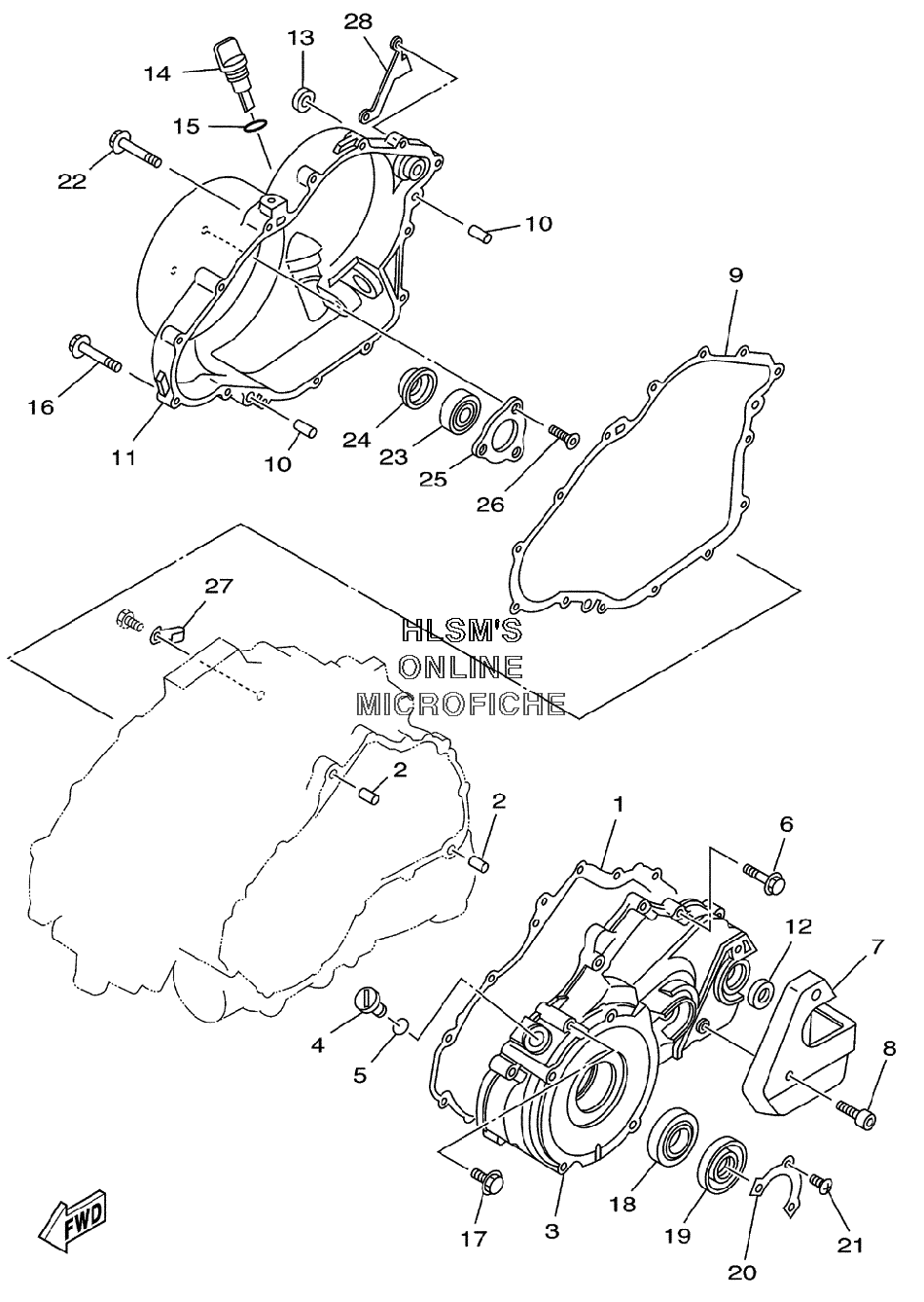

CRANKCASE COVER для Yamaha WOLVERINE YFM35FXM (4KBG) - 2000 года выпуска
-
№АртикулНазвание
-
14KB-15451-01-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
299530-10014-00 PIN, DOWELPIN, DOWEL
-
34KB-15411-11-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
490340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
593210-14369-00 O-RINGO-RING
-
695027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
74KB-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
891317-06025-00 BOLTBOLT
-
94KB-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
1099530-10014-00 PIN, DOWELPIN, DOWEL
-
114KB-15431-01-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
1293102-14209-00 OIL SEALOIL SEAL
-
1393102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
144KB-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1593210-19522-00 O-RINGO-RING
-
1695027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1795027-06050-00 BOLT, FLANGEBOLT, FLANGE
-
1893306-07801-00 BEARINGBEARING
-
1993102-28476-00 OIL SEALOIL SEAL
-
201UY-15719-00-00 WASHER, THRUSTWASHER, THRUST
-
2190151-05023-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
2295027-06040-00 BOLT, FLANGEBOLT, FLANGE
-
2393306-20313-00 BEARING (B6203C4)BEARING (B6203C4)
-
2493101-17113-00 OIL SEALOIL SEAL
-
254SH-15381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
2690151-06025-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
2790465-08377-00 CLAMPCLAMP
-
284KB-18128-00-00 BRACKETBRACKET
