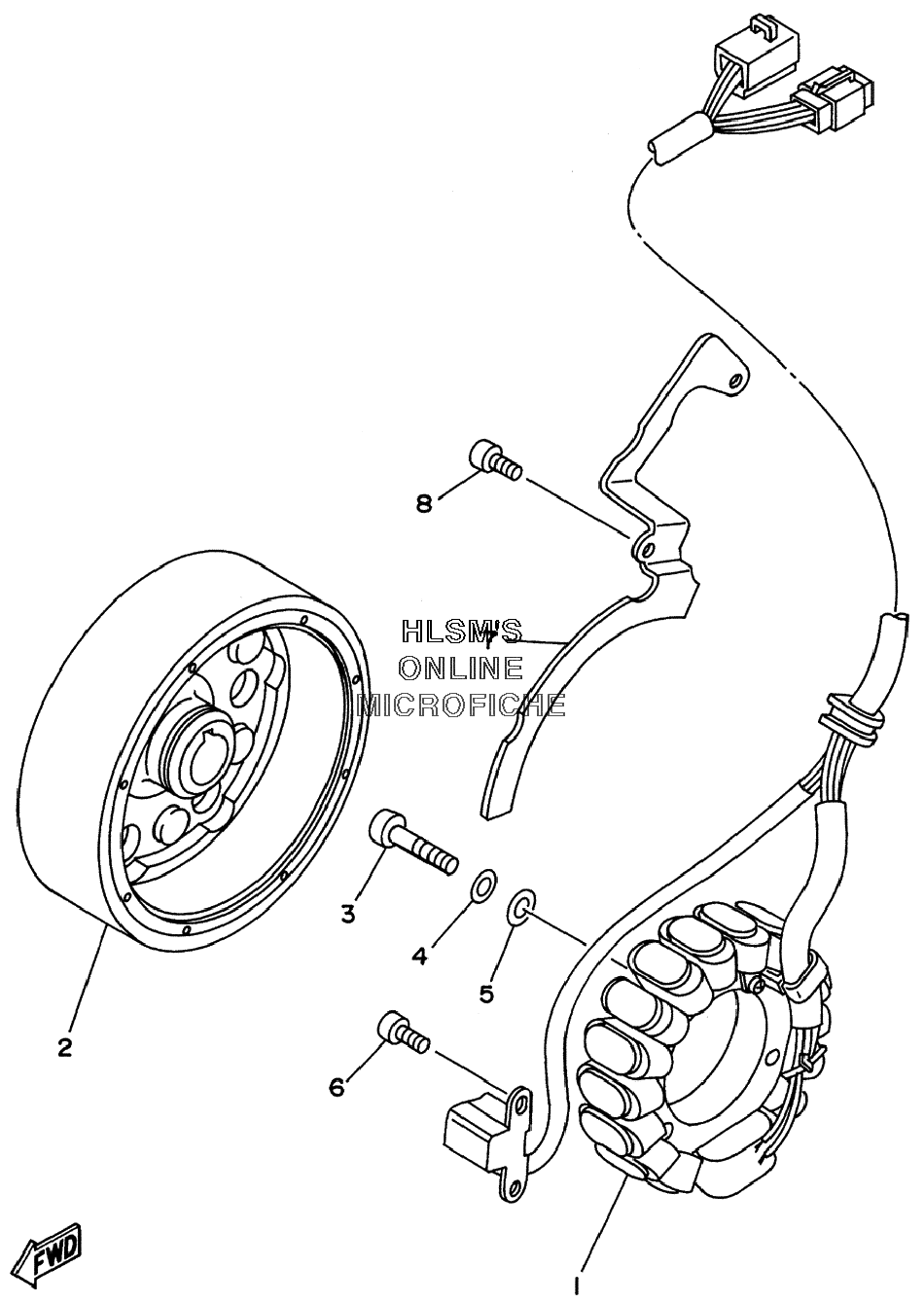

GENERATOR для Yamaha WOLVERINE YFM35FXM (4KBG) - 2000 года выпуска
-
№АртикулНазвание
-
14KB-85510-12-00 STATOR ASSEMBLYSTATOR ASSEMBLY
-
24KB-85550-11-00 ROTOR ASSEMBLYROTOR ASSEMBLY
-
398507-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
492907-06100-00 WASHER, SPRINGWASHER, SPRING
-
592907-06600-00 WASHER, PLATEWASHER, PLATE
-
691317-05012-00 BOLTBOLT
-
74KB-15113-10-00 PLATEPLATE
-
891317-05012-00 BOLTBOLT
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD
- DECALS
- DIFFERENTIAL - FRONT
- DIFFERENTIAL - REAR W/ DRIVE SHAFT
- ELECTRICAL
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FRAME
- FUEL TANK
- • GENERATOR
- HANDLEBAR - SWITCHES/LEVERS
- HANDLEBAR W/ CABLES
- HEADLIGHT
- MIDDLE DRIVE GEAR
- OIL PUMP
- RACK AND BUMPER
- SEAT
- SHIFT CAM W/ FORK
- SPEEDOMETER W/ TACH ASSY.
- STAND - FOOTREST
- STARTER - RECOIL
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION
- VALVE ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
