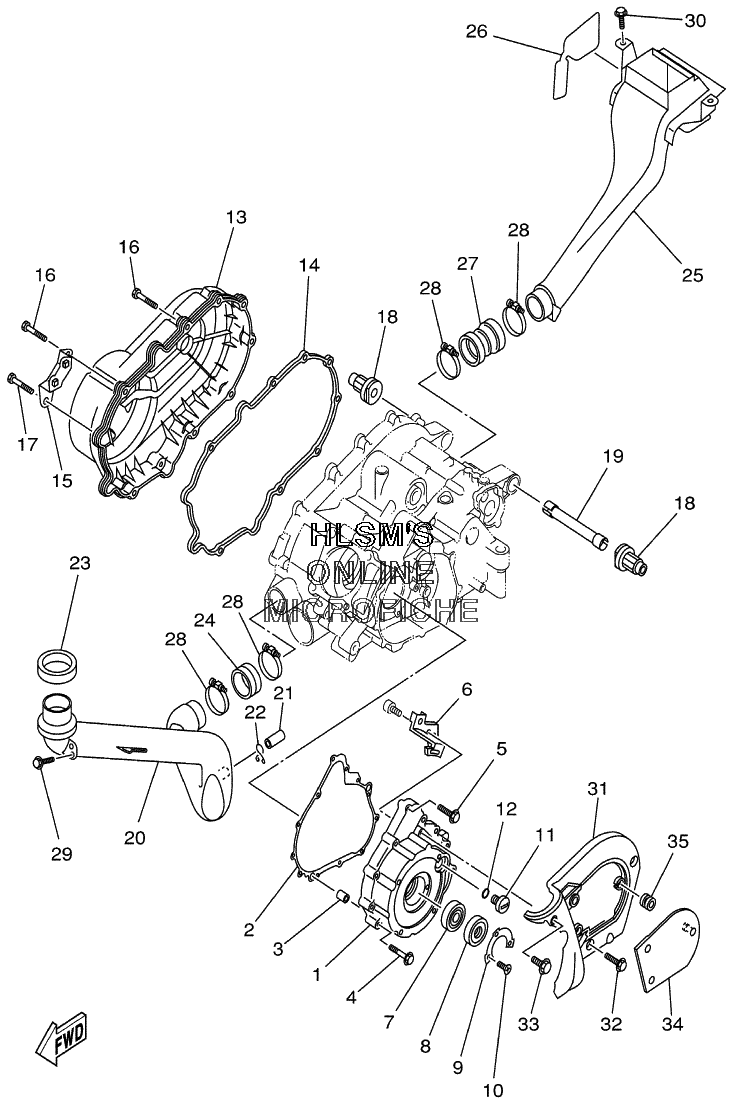

CRANKCASE COVER для Yamaha KODIAK 2WD YFM400AN (5HA7) - 2001 года выпуска
-
№АртикулНазвание
-
15GH-15411-00-00 COVER, CRANKCASECOVER, CRANKCASE
-
25GH-15451-00-00 GASKET, CRANKCASE COVERGASKET, CRANKCASE COVER
-
399530-10114-00 PIN, DOWELPIN, DOWEL
-
495027-06040-00 BOLT, SMALL FLANGEBOLT, SMALL FLANGE
-
595027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
65GH-15113-00-00 PLATEPLATE
-
793306-07801-00 BEARINGBEARING
-
893102-28476-00 OIL SEALOIL SEAL
-
91UY-15719-00-00 WASHER, THRUSTWASHER, THRUST
-
1090151-05023-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
1190340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1293210-14369-00 O-RINGO-RING
-
135GH-15431-00-00 COVER, CRANKCASECOVER, CRANKCASE
-
145GH-15379-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
155GH-15199-00-00 BRACKETBRACKET
-
1695827-06035-00 BOLT, FLANGEBOLT, FLANGE
-
1795827-06045-00 BOLT, FLANGEBOLT, FLANGE
-
185GH-15336-00-00 DAMPER, ENGINE MOUNTDAMPER, ENGINE MOUNT
-
195GH-15317-00-00 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
205GH-15471-00-00 DUCT, AIRDUCT, AIR
-
215BF-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
2290467-16195-00 CLIPCLIP
-
235GH-15434-00-00 SEAL, CLEANER COVERSEAL, CLEANER COVER
-
245GH-15472-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
255GH-15473-00-00 DUCT, AIRDUCT, AIR
-
265GH-15494-00-00 SEAL, PROTECTORSEAL, PROTECTOR
-
275GH-15474-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
2890450-64089-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2995807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3090119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
315GH-15423-00-00 COVERCOVER
-
3295027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3395027-06035-00 SCREW, PAN HEADSCREW, PAN HEAD
-
345GH-15413-00-00 COVERCOVER
-
3590480-13398-00 GROMMETGROMMET
