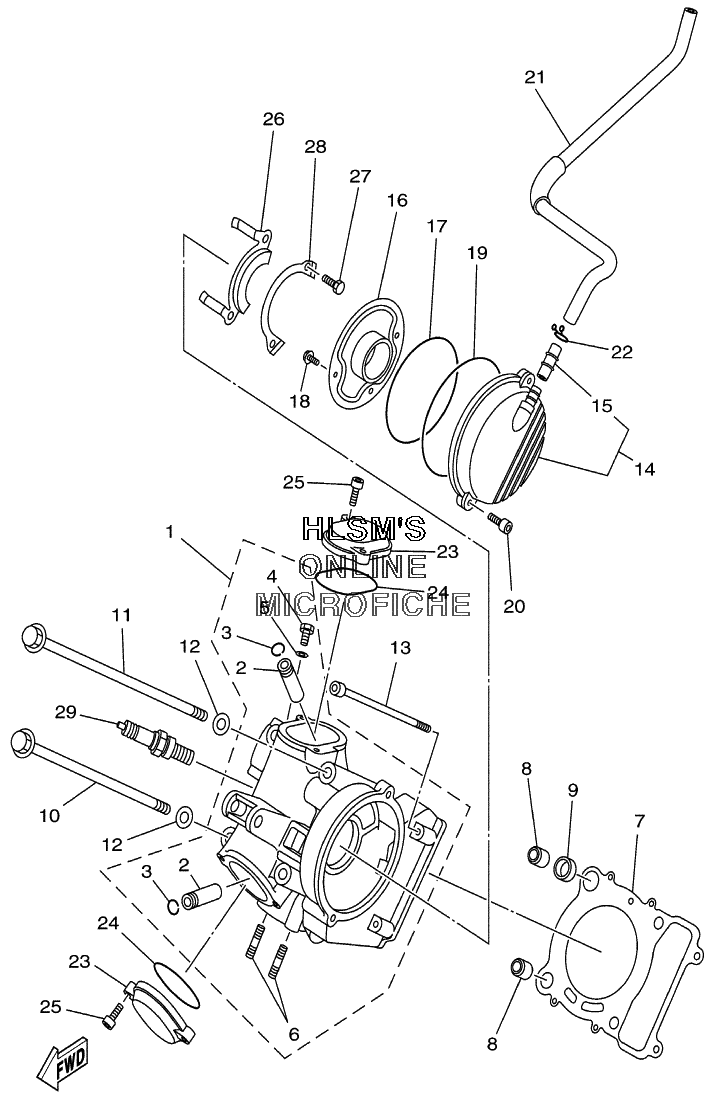

CYLINDER HEAD для Yamaha KODIAK 2WD YFM400AN (5HA7) - 2001 года выпуска
-
№АртикулНазвание
-
15GH-11110-00-00 CYLINDER HEAD ASSY.CYLINDER HEAD ASSY.
-
23Y1-11133-11-00 ...GUIDE, INTAKE VALVE...GUIDE, INTAKE VALVE
-
393440-12052-00 ......CIRCLIP......CIRCLIP
-
490401-06001-00 ...BOLT, UNION...BOLT, UNION
-
590430-06192-00 ...GASKET...GASKET
-
695617-08620-00 ...BOLT, STUD...BOLT, STUD
-
75GH-11181-00-00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
899530-14016-00 PIN, DOWELPIN, DOWEL
-
990430-14240-00 GASKETGASKET
-
1090105-10421-00 BOLT, FLANGEBOLT, FLANGE
-
1190105-10422-00 BOLT, FLANGEBOLT, FLANGE
-
1290201-10128-00 WASHER, PLATEWASHER, PLATE
-
1391317-06140-00 BOLTBOLT
-
144WU-11160-00-00 BREATHER ASSY.BREATHER ASSY.
-
15371-11167-01-00 ...PIPE, BREATHER...PIPE, BREATHER
-
164KB-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
1793210-92448-00 O-RINGO-RING
-
1895027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1993211-06635-00 O-RINGO-RING
-
2091317-06025-00 BOLT, HEXAGON SOCKETBOLT, HEXAGON SOCKET
-
215GH-11166-00-00 PIPE, BREATHERPIPE, BREATHER
-
2290467-14015-00 CLIPCLIP
-
232NL-11186-00-00 COVER, CYLINDER HEAD SIDECOVER, CYLINDER HEAD SIDE
-
2493210-57634-00 O-RINGO-RING
-
2591317-06020-00 BOLTBOLT
-
265GH-1111F-00-00 PLATEPLATE
-
2797007-06012-00 BOLTBOLT
-
2890215-06184-00 WASHER, LOCKWASHER, LOCK
-
29NGK-DR8EA-00-00 PLUG, SPARK (NGK DR8EA)PLUG, SPARK (NGK DR8EA)
