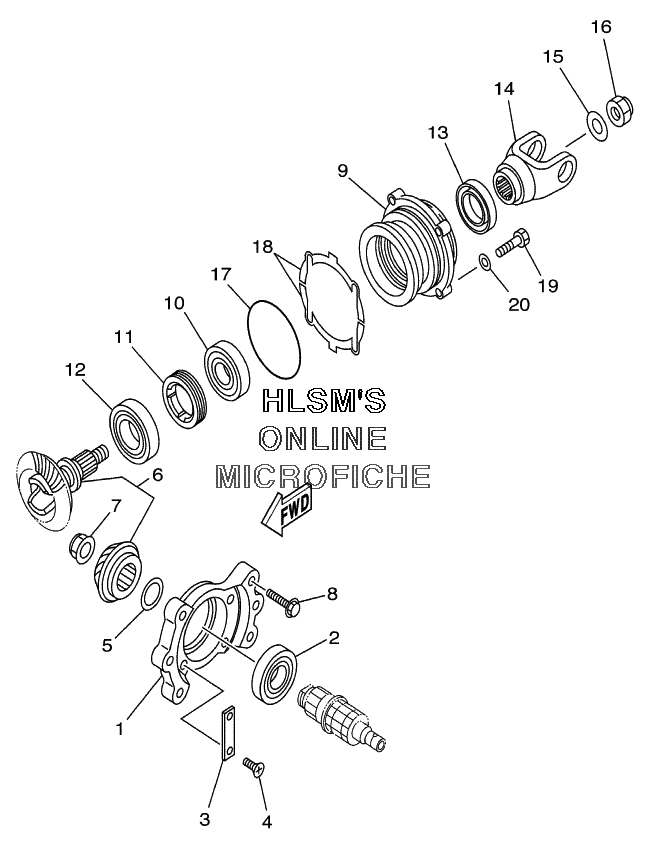

MIDDLE DRIVE GEAR для Yamaha KODIAK 2WD YFM400AN (5HA7) - 2001 года выпуска
-
№АртикулНазвание
-
15GH-17521-00-00 HOUSING, BEARINGHOUSING, BEARING
-
293306-20622-00 BEARINGBEARING
-
311H-15383-01-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
490149-08152-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
552G-17531-01-00 SHIM, PINION (0.1 THICK) (OPT)SHIM, PINION (0.1 THICK) (OPT)
-
552G-17531-11-00 SHIM, PINION (0.15 THICK) (OPT)SHIM, PINION (0.15 THICK) (OPT)
-
552G-17531-31-00 SHIM, PINION (0.3 THICK) (OPT)SHIM, PINION (0.3 THICK) (OPT)
-
552G-17531-21-00 SHIM, PINION (0.2 THICK) (OPT)SHIM, PINION (0.2 THICK) (OPT)
-
552G-17531-41-00 SHIM, PINION (0.4 THICK) (OPT)SHIM, PINION (0.4 THICK) (OPT)
-
552G-17531-51-00 SHIM, PINION (0.5 THICK) (OPT)SHIM, PINION (0.5 THICK) (OPT)
-
64WV-Y1754-00-00 MIDDLE GEAR COMPMIDDLE GEAR COMP
-
790179-22526-00 NUTNUT
-
895817-08030-00 BOLT, FLANGEBOLT, FLANGE
-
95GH-17551-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1093306-30538-00 BEARINGBEARING
-
1190179-65305-00 NUTNUT
-
1293306-20715-00 BEARINGBEARING
-
1393101-35097-00 OIL SEALOIL SEAL
-
145GH-17556-00-00 YOKE, JOINTYOKE, JOINT
-
1590201-14633-00 ...WASHER, PLATE...WASHER, PLATE
-
1690185-14070-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1793210-78544-00 O-RINGO-RING
-
185GH-17531-00-00 SHIM, PINION (0.1 THICK) (OPT)SHIM, PINION (0.1 THICK) (OPT)
-
185GH-17531-10-00 SHIM, PINION (0.15 THICK) (OPT)SHIM, PINION (0.15 THICK) (OPT)
-
185GH-17531-20-00 SHIM, PINION (0.2 THICK) (OPT)SHIM, PINION (0.2 THICK) (OPT)
-
185GH-17531-30-00 SHIM, PINION (0.3 THICK) (OPT)SHIM, PINION (0.3 THICK) (OPT)
-
185GH-17531-40-00 SHIM, PINION (0.4 THICK) (OPT)SHIM, PINION (0.4 THICK) (OPT)
-
185GH-17531-50-00 SHIM, PINION (0.5 THICK) (OPT)SHIM, PINION (0.5 THICK) (OPT)
-
185GH-17531-60-00 SHIM, PINION (0.6 THICK) (OPT)SHIM, PINION (0.6 THICK) (OPT)
-
1997027-08030-00 BOLTBOLT
-
2092907-08600-00 WASHER, PLATEWASHER, PLATE
