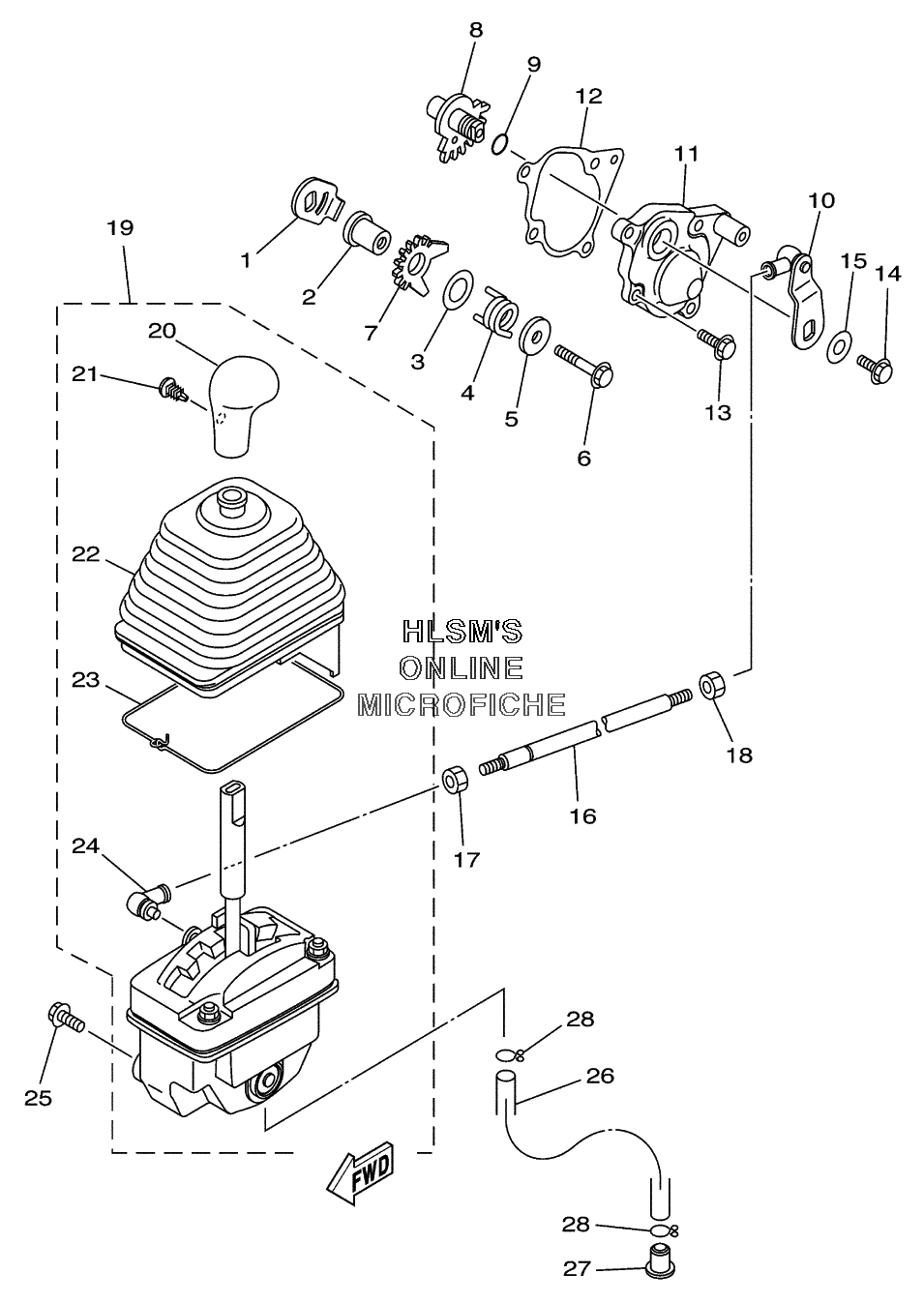

SHIFT SHAFT для Yamaha KODIAK 2WD YFM400AN (5HA7) - 2001 года выпуска
-
№АртикулНазвание
-
14SH-18198-00-00 LEVERLEVER
-
290387-0613B-00 COLLARCOLLAR
-
390201-132G5-00 WASHER, PLATEWASHER, PLATE
-
490508-35764-00 SPRING, TORSIONSPRING, TORSION
-
590201-06008-00 WASHER, PLATEWASHER, PLATE
-
695817-06035-00 BOLT, FLANGEBOLT, FLANGE
-
75GH-18191-00-00 LEVERLEVER
-
85GH-18197-00-00 SHAFTSHAFT
-
993210-11073-00 O-RINGO-RING
-
105GH-18104-00-00 SHIFT GUIDE COMP.SHIFT GUIDE COMP.
-
115GH-18129-00-00 COVER, SHIFT SHAFTCOVER, SHIFT SHAFT
-
125GH-18146-00-00 GASKETGASKET
-
1395027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1495817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1590201-06008-00 ...WASHER, PLATE...WASHER, PLATE
-
165GH-18115-00-00 ROD, SHIFTROD, SHIFT
-
1790170-08358-00 NUTNUT
-
1895307-08700-00 NUTNUT
-
195GH-18300-00-00 SHIFTER ASSY.SHIFTER ASSY.
-
205GH-18174-00-00 ...KNOB, SHIFT LEVER...KNOB, SHIFT LEVER
-
2190269-05055-00 ...RIVET...RIVET
-
225GH-18131-00-00 ...BOOT, SEALING...BOOT, SEALING
-
235GH-18617-00-00 ...STOPPER, RUBBER...STOPPER, RUBBER
-
241KT-18157-00-00 ...JOINT 2...JOINT 2
-
2595807-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2690446-16001-00 HOSEHOSE
-
2790338-12081-00 PLUGPLUG
-
2890467-15012-00 CLIPCLIP
