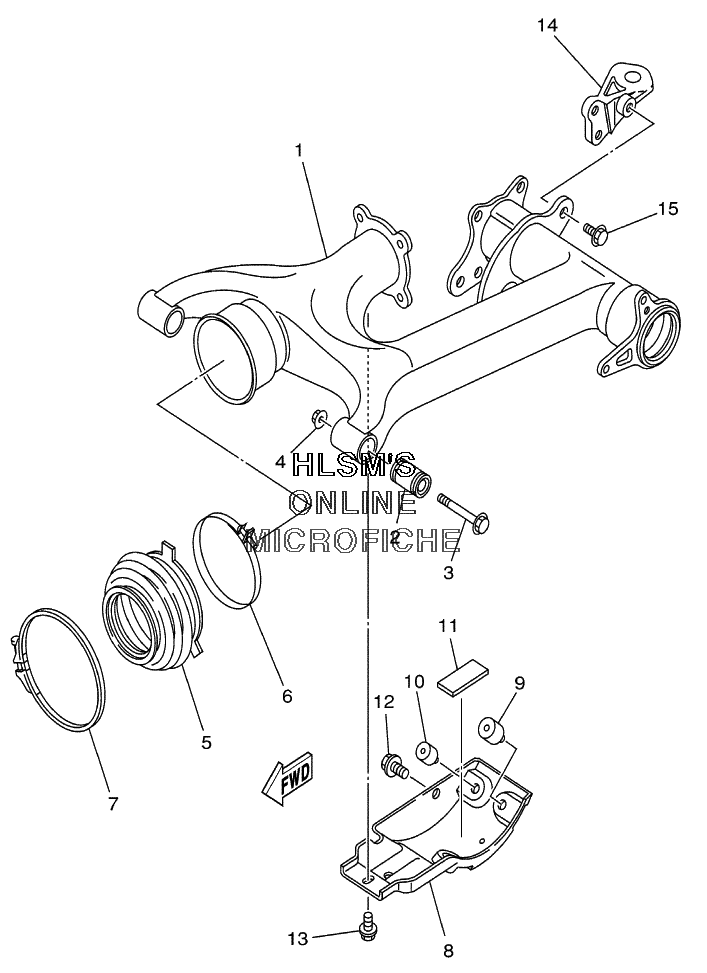

SUSPENSION - REAR ARM для Yamaha KODIAK 2WD YFM400AN (5HA7) - 2001 года выпуска
-
№АртикулНазвание
-
15GH-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
25GH-22123-00-00 BUSHBUSH
-
390105-12660-00 BOLT, FLANGEBOLT, FLANGE
-
495607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
55GH-22189-00-00 BOOT, RUBBERBOOT, RUBBER
-
690506-07135-00 SPRING, TENSIONSPRING, TENSION
-
790460-85277-00 CLAMP, HOSECLAMP, HOSE
-
84BD-2219X-02-00 COVERCOVER
-
91A0-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
10109-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
111UJ-21638-00-00 DAMPER 1DAMPER 1
-
1295827-08012-00 BOLT, FLANGEBOLT, FLANGE
-
1395827-10016-00 BOLT, FLANGEBOLT, FLANGE
-
145GH-28488-00-00 HOOKHOOK
-
1595827-10020-00 BOLT, FLANGEBOLT, FLANGE
