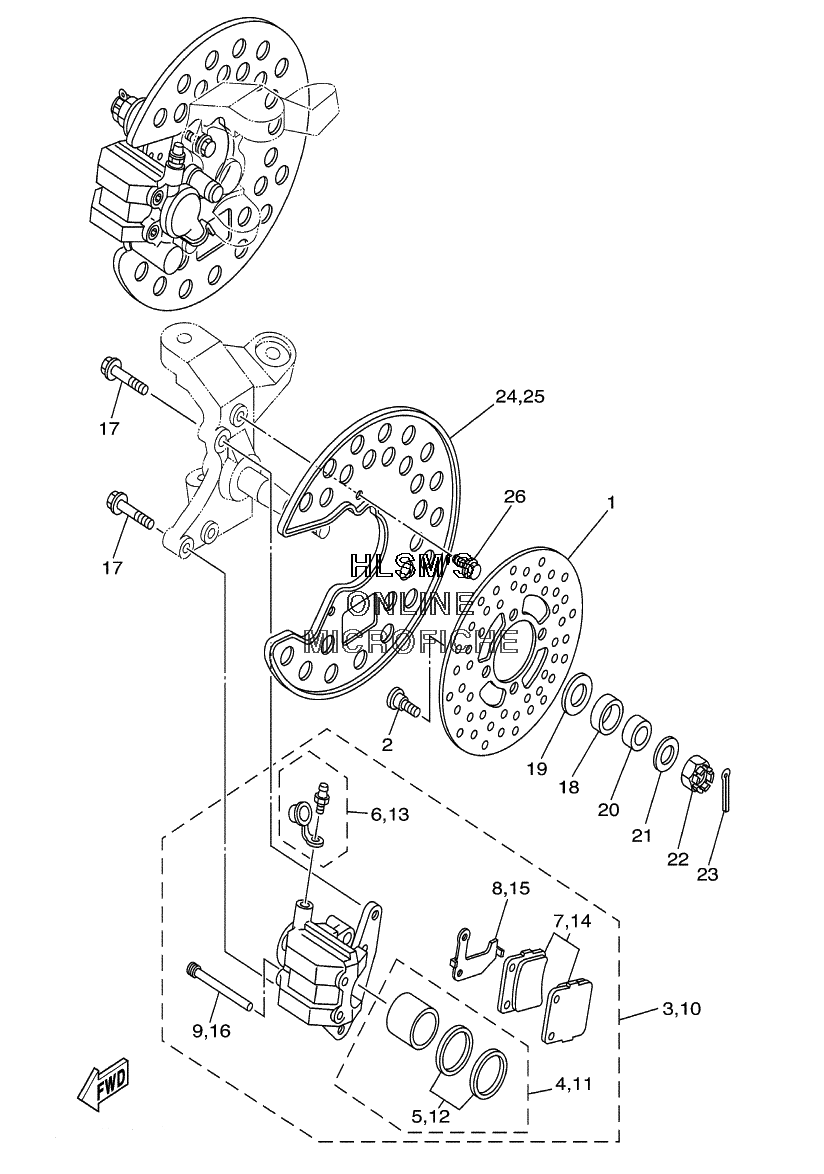

BRAKE - FRONT CALIPER для Yamaha RAPTOR YFM660RN (5LP1) - 2001 года выпуска
-
№АртикулНазвание
-
13GD-2582T-00-00 DISC, BRAKEDISC, BRAKE
-
290149-08268-00 SCREWSCREW
-
35LP-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
43GD-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
53GD-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
61UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
75LP-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
83GD-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
93GD-25933-00-00 ...PIN, PAD...PIN, PAD
-
105LP-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
113GD-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
123GD-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
131UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
145LP-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
153GD-25828-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
163GD-25933-00-00 ...PIN, PAD...PIN, PAD
-
1790105-08520-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1890387-20005-00 COLLARCOLLAR
-
1990201-204R5-00 WASHER, PLATEWASHER, PLATE
-
2090387-150R1-00 COLLARCOLLAR
-
2190201-14586-00 WASHER, PLATEWASHER, PLATE
-
2290171-14020-00 NUT, CASTLENUT, CASTLE
-
2391401-30025-00 PIN, COTTERPIN, COTTER
-
245LP-2514A-00-00 RING, WHEEL (LEFT)RING, WHEEL (LEFT)
-
255LP-2515A-00-00 RING, WHEEL (RIGHT)RING, WHEEL (RIGHT)
-
2695807-06012-00 BOLT, FLANGEBOLT, FLANGE
