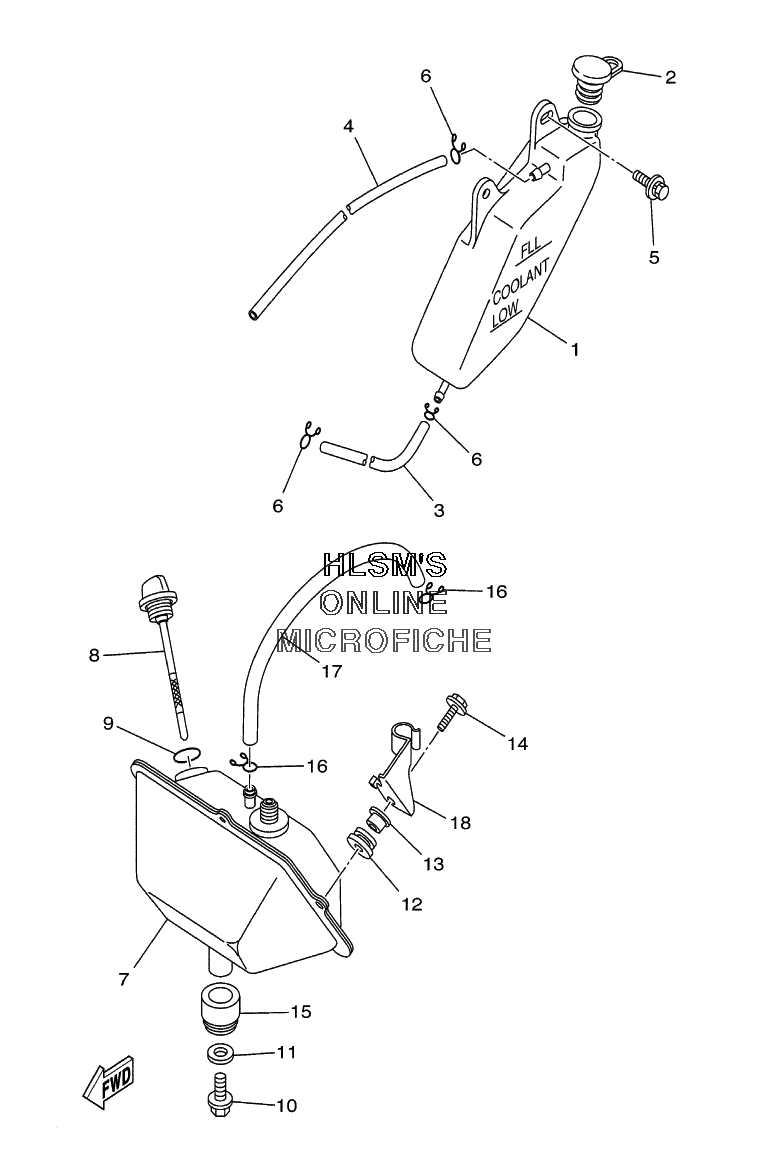

OIL TANK для Yamaha RAPTOR YFM660RN (5LP1) - 2001 года выпуска
-
№АртикулНазвание
-
13LD-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
210V-21875-00-00 CAPCAP
-
390445-090F7-00 HOSE (L1150)HOSE (L1150)
-
490445-09300-00 HOSE (L355)HOSE (L355)
-
590119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690467-08003-00 CLIPCLIP
-
75LP-21750-00-00 OIL TANK ASSYOIL TANK ASSY
-
85LP-21761-00-00 GAUGE, LEVELGAUGE, LEVEL
-
993210-21190-00 O-RINGO-RING
-
1095807-10016-00 BOLT, FLANGEBOLT, FLANGE
-
1190201-11723-00 WASHER, PLATEWASHER, PLATE
-
1290480-12421-00 GROMMETGROMMET
-
1390387-067N5-00 COLLARCOLLAR
-
1490119-06118-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590480-24001-00 GROMMETGROMMET
-
1690467-10008-00 CLIPCLIP
-
1790445-11289-00 HOSE (L200)HOSE (L200)
-
185LP-2175T-00-00 BRACKETBRACKET
