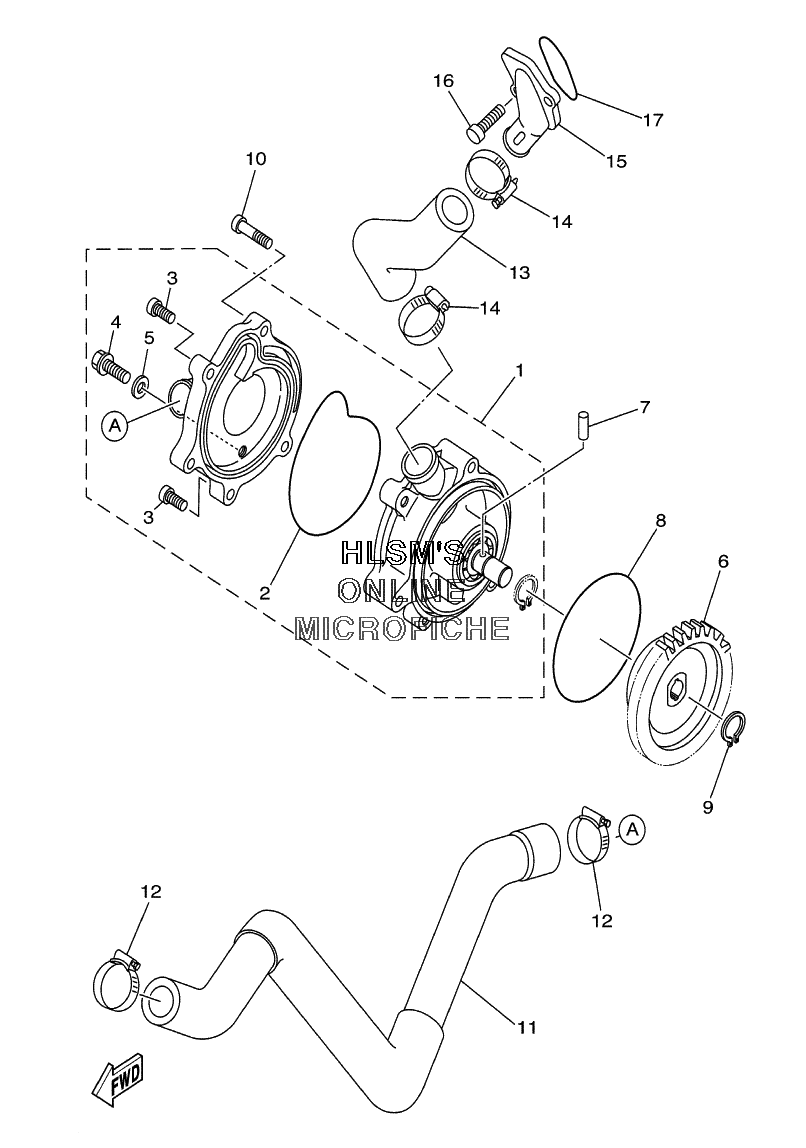

WATER PUMP для Yamaha RAPTOR YFM660RN (5LP1) - 2001 года выпуска
-
№АртикулНазвание
-
15LP-12420-00-00 WATER PUMP ASSYWATER PUMP ASSY
-
21WG-12439-00-00 ...O-RING...O-RING
-
391317-06020-00 ...BOLT...BOLT
-
495027-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
590430-06014-00 ...GASKET...GASKET
-
63YF-12459-00-00 GEAR, IMPELLER SHAFTGEAR, IMPELLER SHAFT
-
793603-16219-00 PIN, DOWELPIN, DOWEL
-
893210-77363-00 O-RINGO-RING
-
999009-12400-00 CIRCLIPCIRCLIP
-
1091317-06045-00 BOLTBOLT
-
115LP-12576-00-00 HOSEHOSE
-
1290450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
135LP-12577-00-00 HOSEHOSE
-
1490450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
153YF-12469-00-00 JOINTJOINT
-
1691317-06020-00 BOLTBOLT
-
1793210-33786-00 O-RINGO-RING
