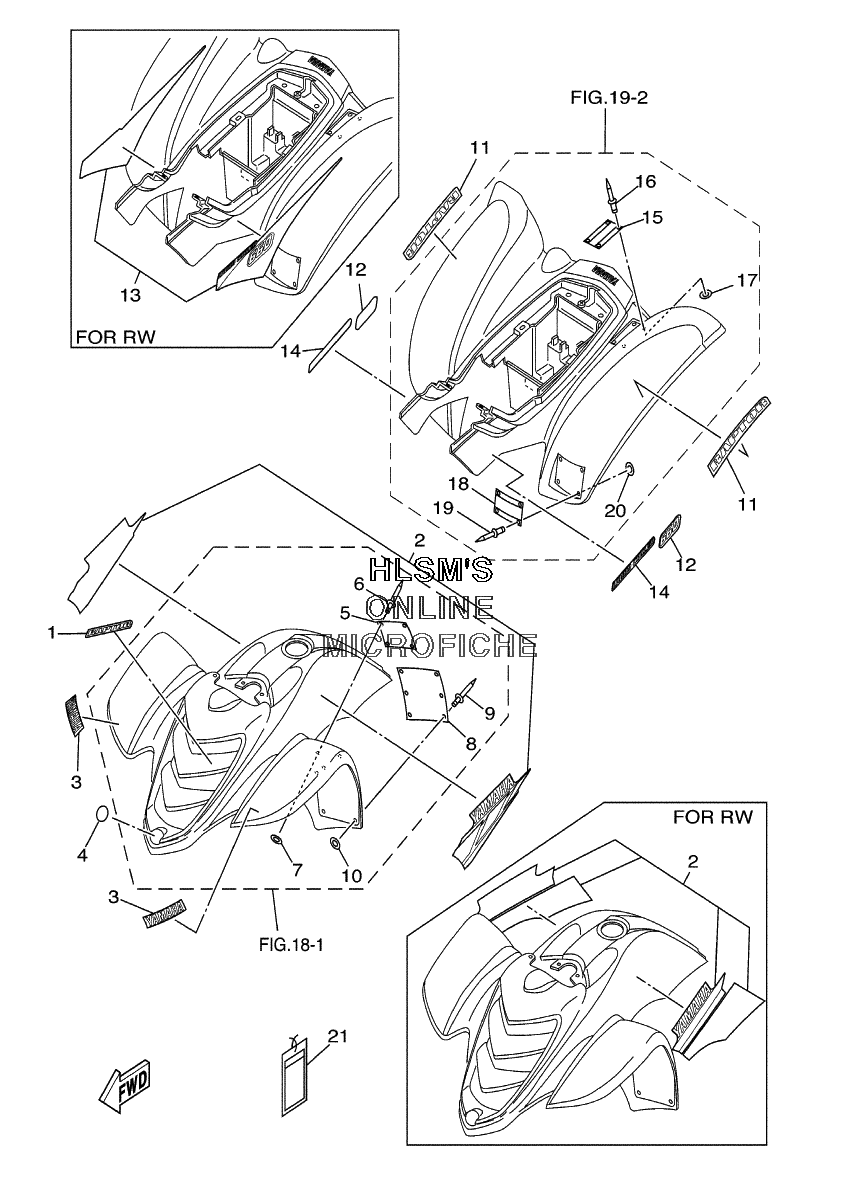

EMBLEM - LABEL для Yamaha RAPTOR YFM660RN (5LP1) - 2001 года выпуска
-
№АртикулНазвание
-
15LP-21565-00-00 EMBLEM, (583) (DEEP PURPLISH BLUE)EMBLEM, (583) (DEEP PURPLISH BLUE)
-
15LP-21565-10-00 EMBLEM, (OUJ) (RADICAL WHITE)EMBLEM, (OUJ) (RADICAL WHITE)
-
25LP-21570-01-00 GRAPHIC SET, FRONT FENDER (583) (DEEP PURPLISH BLUE)GRAPHIC SET, FRONT FENDER (583) (DEEP PURPLISH BLUE)
-
25LP-21570-11-00 GRAPHIC SET, FRONT FENDER (OUJ) (RADICAL WHITE)GRAPHIC SET, FRONT FENDER (OUJ) (RADICAL WHITE)
-
33GD-2153E-00-00 EMBLEM, YAMAHA (583) (DEEP PURPLISH BLUE)EMBLEM, YAMAHA (583) (DEEP PURPLISH BLUE)
-
33GD-2153E-10-00 EMBLEM, YAMAHA (OUJ) (RADICAL WHITE)EMBLEM, YAMAHA (OUJ) (RADICAL WHITE)
-
48AC-2414B-01-00 EMBLEMEMBLEM
-
55FE-21697-01-00 LABEL, CAUTIONLABEL, CAUTION
-
690267-32004-00 RIVET, BLINDRIVET, BLIND
-
790201-03313-00 WASHER, PLATEWASHER, PLATE
-
85FE-21568-01-00 LABEL, WARNINGLABEL, WARNING
-
990267-32004-00 RIVET, BLINDRIVET, BLIND
-
1090201-03313-00 WASHER, PLATEWASHER, PLATE
-
115LP-21609-01-00 EMBLEM (583) (DEEP PURPLISH BLUE)EMBLEM (583) (DEEP PURPLISH BLUE)
-
115LP-21609-11-00 EMBLEM (OUJ) (RADICAL WHITE)EMBLEM (OUJ) (RADICAL WHITE)
-
125LP-2163G-02-00 EMBLEM (583) (DEEP PURPLISH BLUE)EMBLEM (583) (DEEP PURPLISH BLUE)
-
135LP-2165A-02-00 GRAPHIC SET, REAR FENDER (OUJ) (RADICAL WHITE)GRAPHIC SET, REAR FENDER (OUJ) (RADICAL WHITE)
-
145LP-2163H-01-00 EMBLEM (583) (DEEP PURPLISH BLUE)EMBLEM (583) (DEEP PURPLISH BLUE)
-
155FE-2151H-01-00 LABELLABEL
-
1690267-32004-00 RIVET, BLINDRIVET, BLIND
-
1790201-03313-00 WASHER, PLATEWASHER, PLATE
-
185LP-21696-00-00 LABEL, CAUTIONLABEL, CAUTION
-
1990267-32004-00 RIVET, BLINDRIVET, BLIND
-
2090201-03313-00 WASHER, PLATEWASHER, PLATE
-
213JM-2819R-00-00 TAG, WARNINGTAG, WARNING
