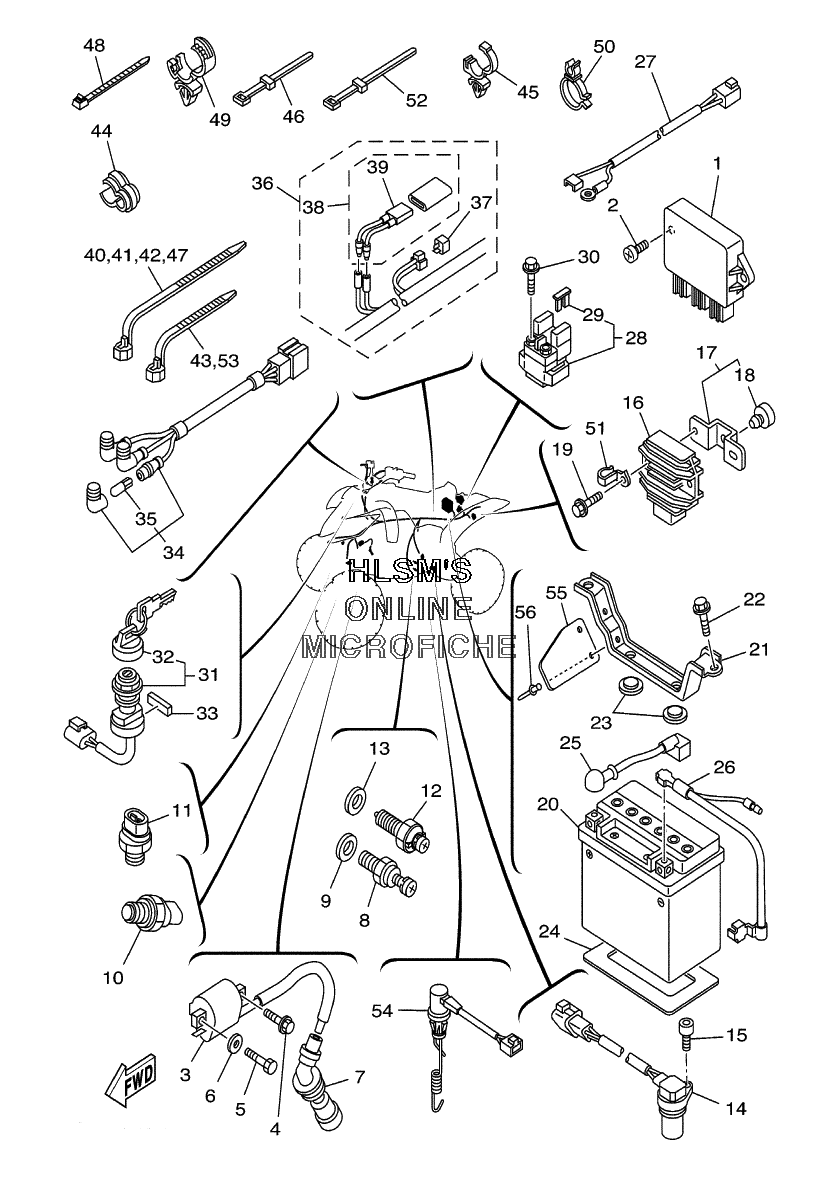

ELECTRICAL для Yamaha RAPTOR YFM660RN (5LP1) - 2001 года выпуска
-
№АртикулНазвание
-
15LP-85540-00-00 C.D.I UNIT ASSY (5LP1) (EXCEPT CALIF)C.D.I UNIT ASSY (5LP1) (EXCEPT CALIF)
-
15LP-85540-10-00 C.D.I UNIT ASSY (5LP3) (CALIF ONLY)C.D.I UNIT ASSY (5LP3) (CALIF ONLY)
-
298907-06016-00 SCREW, BINDSCREW, BIND
-
34KJ-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
490109-06723-00 BOLTBOLT
-
597007-06020-00 BOLTBOLT
-
692907-06600-00 WASHER, PLATEWASHER, PLATE
-
73YF-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
85LP-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
990430-10148-00 GASKETGASKET
-
105GH-82560-00-00 THERMOSWITCH ASSYTHERMOSWITCH ASSY
-
115LP-82560-00-00 THERMOSWITCH ASSYTHERMOSWITCH ASSY
-
124GY-82540-10-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1390430-10148-00 GASKETGASKET
-
145LP-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
1590110-06124-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
165GT-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
175LP-82588-00-00 PLATEPLATE
-
1822W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
1995807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
20BTY-YTX14-BS-00 BATTERY ASSY (YTX14-BS)BATTERY ASSY (YTX14-BS)
-
215LP-82128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
2295807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
23371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
245LP-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
255LP-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
265LP-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
275LP-82541-00-00 WIRE, LEADWIRE, LEAD
-
284XE-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
292GH-82151-00-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
3095027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
315LP-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
323HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
335LP-82176-00-00 DAMPERDAMPER
-
345LP-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
355GH-83516-00-00 ...BULB (14V-1.7W)...BULB (14V-1.7W)
-
365LP-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
373WP-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
385GT-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
395GT-82560-00-00 ......THERMOSWITCH ASSY......THERMOSWITCH ASSY
-
4090464-15195-00 CLAMPCLAMP
-
4190464-15195-00 CLAMPCLAMP
-
4290464-15195-00 CLAMPCLAMP
-
4390464-13073-00 CLAMPCLAMP
-
4490464-15065-00 CLAMPCLAMP
-
4590464-20181-00 CLAMPCLAMP
-
46437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
4790464-15195-00 CLAMPCLAMP
-
4890465-13M11-00 CLAMPCLAMP
-
4990464-07209-00 CLAMPCLAMP
-
5090464-20001-00 CLAMPCLAMP
-
5190465-08122-00 CLAMPCLAMP
-
523TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
5390464-13073-00 CLAMPCLAMP
-
545LP-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
555LP-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
5690267-48120-00 RIVET, BLINDRIVET, BLIND
-
5790890-56001-00 ATV BLANK KEY (TYPE-A)ATV BLANK KEY (TYPE-A)
-
5890890-56002-00 ATV BLANK KEY (TYPE-B)ATV BLANK KEY (TYPE-B)
