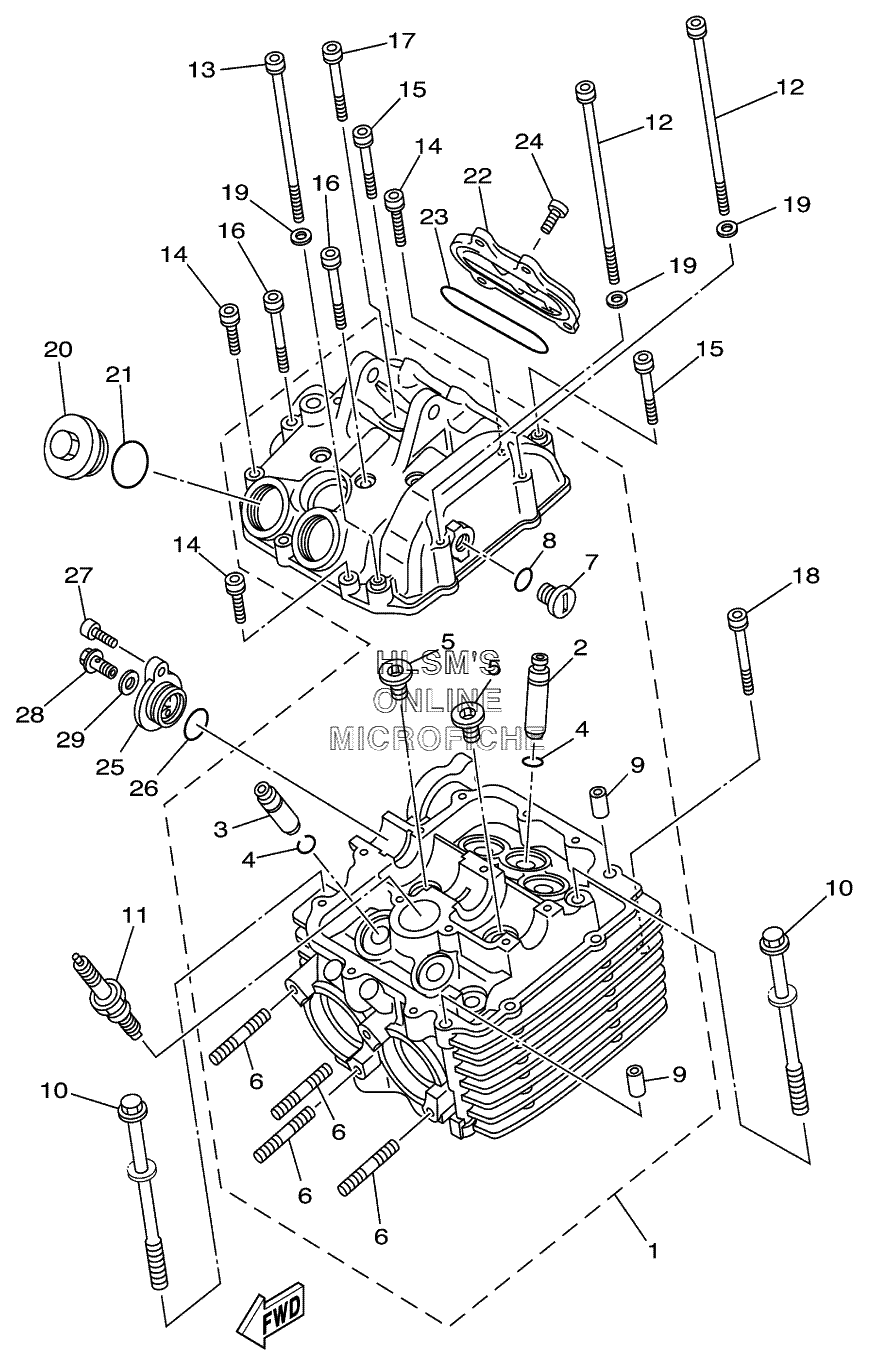

CYLINDER HEAD для Yamaha GRIZZLY 660 YFM660FP (5KM1) - 2002 года выпуска
-
№АртикулНазвание
-
15KM-11101-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
25KM-11133-10-00 ......GUIDE, INTAKE VALVE......GUIDE, INTAKE VALVE
-
35KM-11134-10-00 ......GUIDE, EXHAUST VALVE......GUIDE, EXHAUST VALVE
-
493440-10085-00 ...CIRCLIP...CIRCLIP
-
590340-18101-00 ......PLUG, STRAIGHT SCREW......PLUG, STRAIGHT SCREW
-
695617-08625-00 ......BOLT, STUD......BOLT, STUD
-
790340-14117-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
893210-13657-00 ...O-RING...O-RING
-
999530-10116-00 ...PIN, DOWEL...PIN, DOWEL
-
1090105-09648-00 BOLT, FLANGEBOLT, FLANGE
-
11NGK-DPR8E-A9-00 PLUG, SPARK (NGK DPR8EA-9)PLUG, SPARK (NGK DPR8EA-9)
-
1291317-06130-00 BOLTBOLT
-
1391317-06115-00 BOLTBOLT
-
1491317-06025-00 BOLT, HEXSOCKETBOLT, HEXSOCKET
-
1591317-06040-00 BOLTBOLT
-
1691317-06055-00 BOLTBOLT
-
1790109-063E9-00 BOLTBOLT
-
1891317-06050-00 BOLTBOLT
-
1992907-06600-00 WASHER, PLATEWASHER, PLATE
-
201L9-11186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
2193210-32172-00 O-RINGO-RING
-
223YF-11187-00-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
2393210-71360-00 O-RINGO-RING
-
2491317-06018-00 BOLTBOLT
-
253TB-12215-01-00 CAP, TENSIONER CASECAP, TENSIONER CASE
-
2693210-19522-00 O-RINGO-RING
-
2791317-06020-00 BOLTBOLT
-
2890401-06001-00 BOLT, UNIONBOLT, UNION
-
2990430-06192-00 GASKETGASKET
