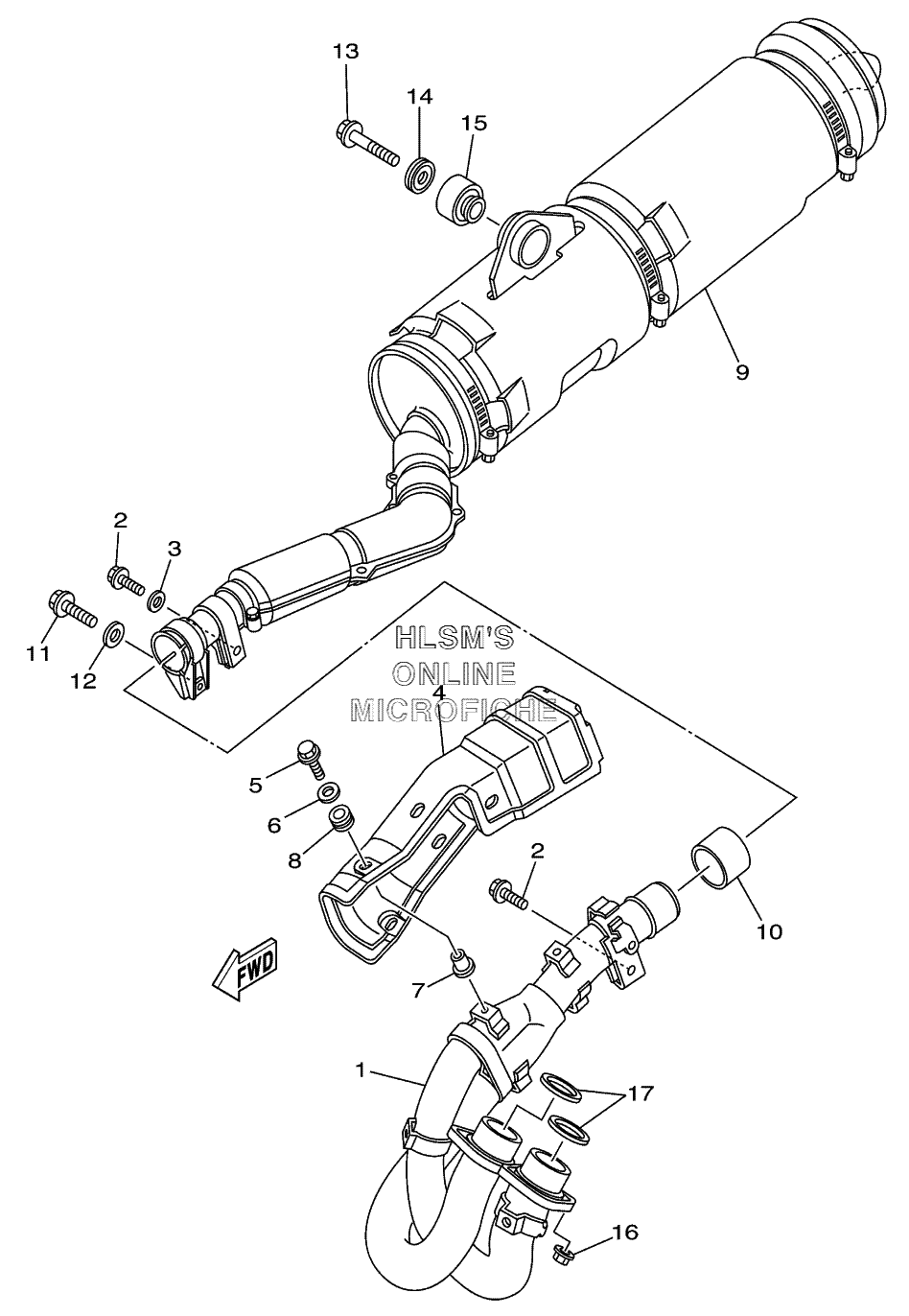

EXHAUST для Yamaha GRIZZLY 660 YFM660FP (5KM1) - 2002 года выпуска
-
№АртикулНазвание
-
15KM-14611-00-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
295817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
390201-06778-00 WASHER, PLATEWASHER, PLATE
-
45KM-14628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
595827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
690201-06778-00 WASHER, PLATEWASHER, PLATE
-
790387-061V4-00 COLLARCOLLAR
-
890480-01009-00 GROMMETGROMMET
-
95KM-14711-00-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
103YF-14755-00-00 GASKET, SILENCERGASKET, SILENCER
-
1195817-08025-00 BOLT, FLANGEBOLT, FLANGE
-
1290201-086J0-00 WASHER, PLATEWASHER, PLATE
-
1395807-08040-00 BOLT, FLANGEBOLT, FLANGE
-
1490209-08249-00 WASHERWASHER
-
155KM-27414-00-00 DAMPER, FOOTRESTDAMPER, FOOTREST
-
1690179-08410-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
173YF-14613-01-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
