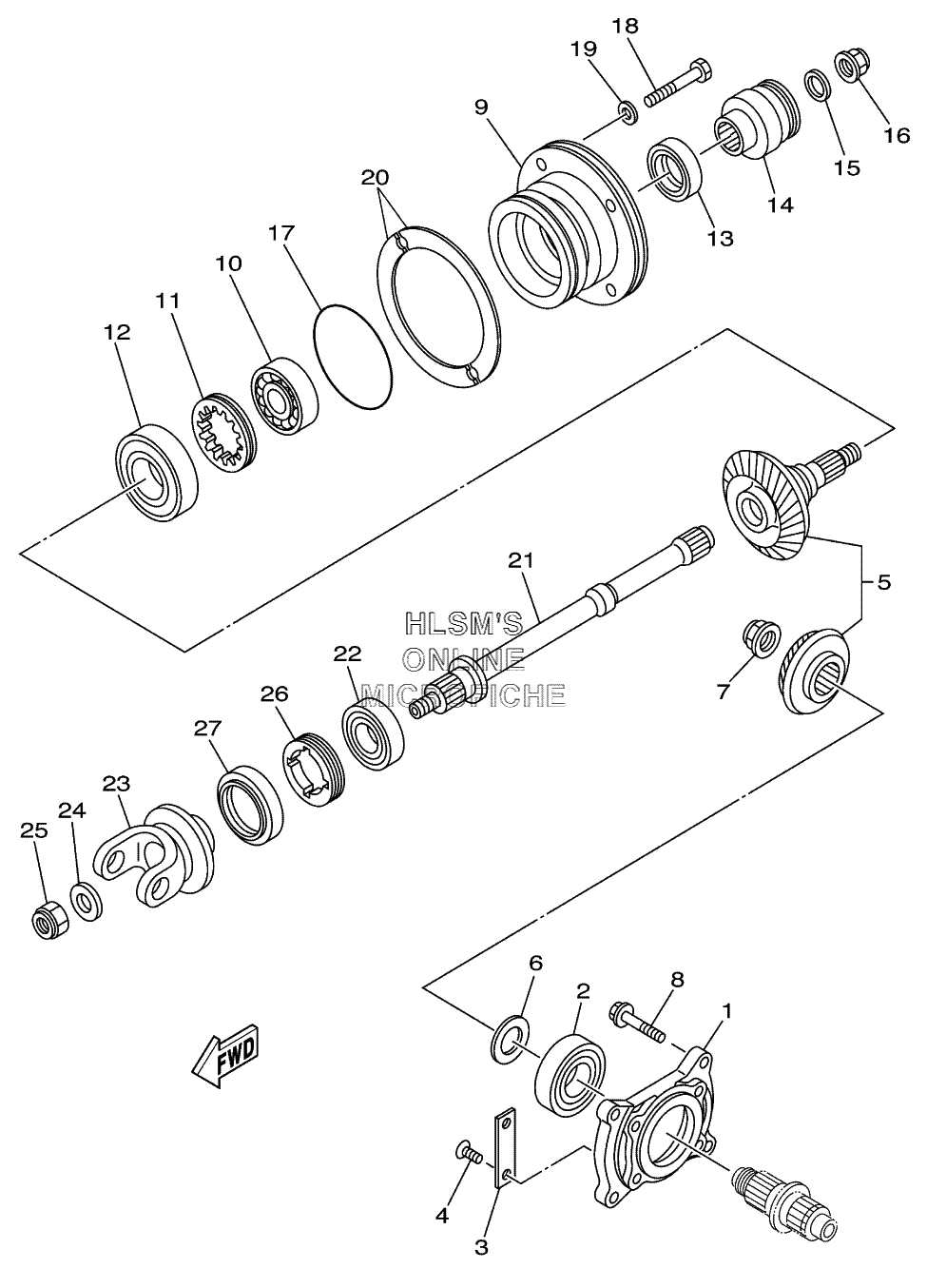

MIDDLE DRIVE GEAR для Yamaha GRIZZLY 660 YFM660FP (5KM1) - 2002 года выпуска
-
№АртикулНазвание
-
15KM-17521-00-00 HOUSING, BEARINGHOUSING, BEARING
-
293306-30537-00 BEARINGBEARING
-
311H-15383-02-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
490149-08152-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
55KM-Y1754-00-00 MIDDLE GEAR COMPMIDDLE GEAR COMP
-
65KM-17531-00-00 SHIM, PINION (0.1THICKNESS) (OPT)SHIM, PINION (0.1THICKNESS) (OPT)
-
65KM-17531-10-00 SHIM, PINION (0.15THICKNESS) (OPT)SHIM, PINION (0.15THICKNESS) (OPT)
-
65KM-17531-20-00 SHIM, PINION (0.2THICKNESS) (OPT)SHIM, PINION (0.2THICKNESS) (OPT)
-
65KM-17531-40-00 SHIM, PINION (0.4THICKNESS) (OPT)SHIM, PINION (0.4THICKNESS) (OPT)
-
65KM-17531-50-00 SHIM, PINION (0.5THICKNESS) (OPT)SHIM, PINION (0.5THICKNESS) (OPT)
-
65KM-17531-30-00 SHIM, PINION (0.3THICKNESS) (OPT)SHIM, PINION (0.3THICKNESS) (OPT)
-
790179-22526-00 NUT ,SPEC'L SHAPENUT ,SPEC'L SHAPE
-
895817-08030-00 BOLT, FLANGEBOLT, FLANGE
-
95KM-17551-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1093306-37206-00 BEARINGBEARING
-
1190179-60699-00 NUTNUT
-
1293306-20715-00 BEARINGBEARING
-
1393102-30170-00 OIL SEALOIL SEAL
-
145KM-17832-00-00 COUPLINGCOUPLING
-
1590201-170M2-00 WASHER, PLATEWASHER, PLATE
-
1690179-16661-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1793210-78544-00 O-RINGO-RING
-
1897027-08030-00 BOLT ,HEXAGONBOLT ,HEXAGON
-
1992907-08600-00 WASHER, PLATEWASHER, PLATE
-
204KB-17531-00-00 SHIM, PINION (0.10THICKNESS) (OPT)SHIM, PINION (0.10THICKNESS) (OPT)
-
204KB-17531-10-00 SHIM, PINION (0.15THICKNESS) (OPT)SHIM, PINION (0.15THICKNESS) (OPT)
-
204KB-17531-20-00 SHIM, PINION (0.20THICKNESS) (OPT)SHIM, PINION (0.20THICKNESS) (OPT)
-
204KB-17531-30-00 SHIM, PINION (0.30THICKNESS) (OPT)SHIM, PINION (0.30THICKNESS) (OPT)
-
204KB-17531-40-00 SHIM, PINION (0.40THICKNESS) (OPT)SHIM, PINION (0.40THICKNESS) (OPT)
-
204KB-17531-50-00 SHIM, PINION (0.50THICKNESS) (OPT)SHIM, PINION (0.50THICKNESS) (OPT)
-
204KB-17531-60-00 SHIM, PINION (0.60THICKNESS) (OPT)SHIM, PINION (0.60THICKNESS) (OPT)
-
215KM-1761A-00-00 SHAFT, 1SHAFT, 1
-
2293306-20597-00 BEARINGBEARING
-
235KM-17576-00-00 YOKE, JOINT 2YOKE, JOINT 2
-
2490201-14633-00 ...WASHER, PLATE...WASHER, PLATE
-
2590185-14070-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2690179-55660-00 NUTNUT
-
2793102-44454-00 OIL SEALOIL SEAL
