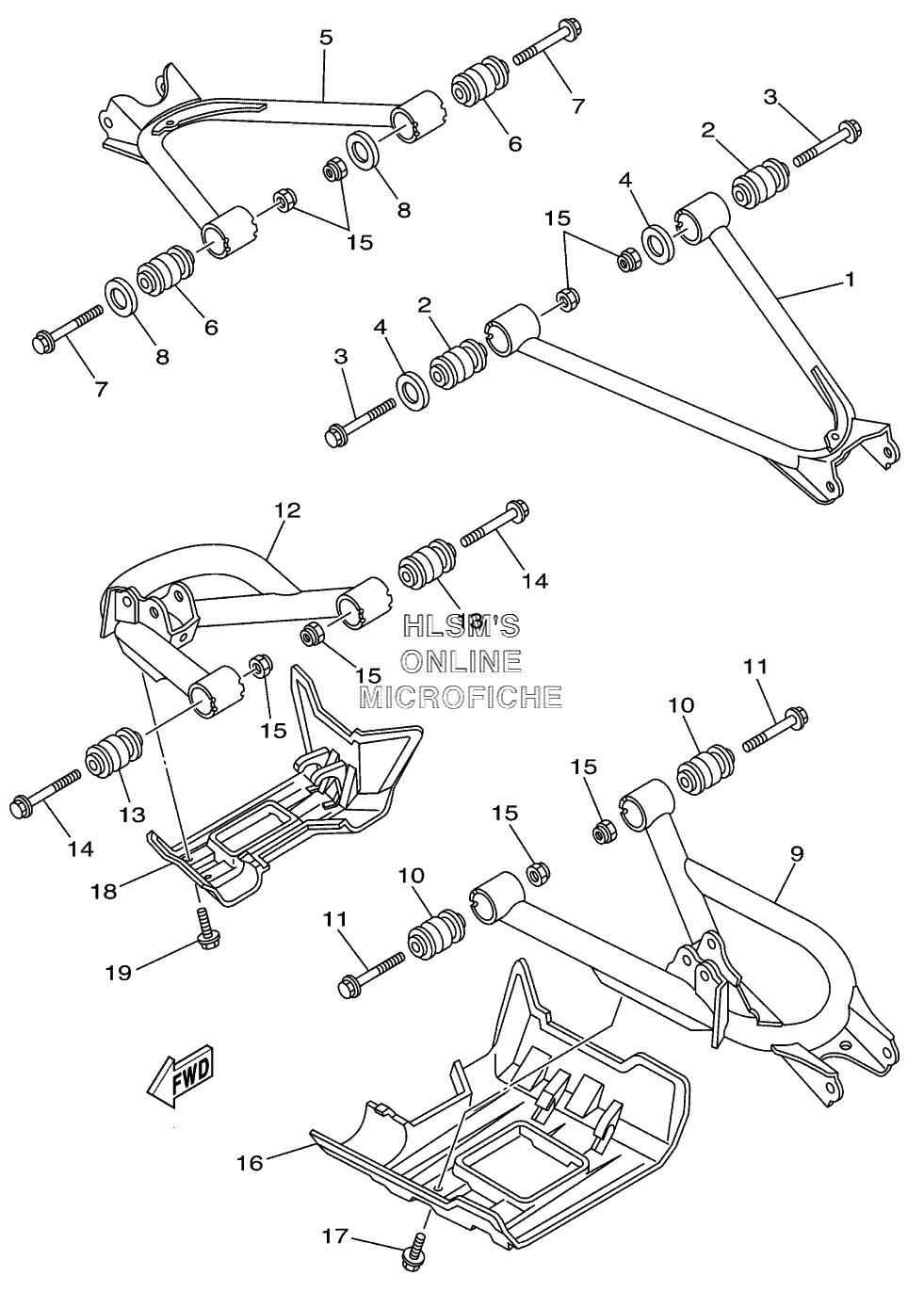

SUSPENSION - REAR ARM для Yamaha GRIZZLY 660 YFM660FP (5KM1) - 2002 года выпуска
-
№АртикулНазвание
-
15KM-22171-00-00 ARM, REAR 1ARM, REAR 1
-
25KM-23526-00-00 BUSHBUSH
-
390105-10323-00 BOLT, FLANGEBOLT, FLANGE
-
45KM-22149-00-00 WASHERWASHER
-
55KM-22172-00-00 ARM, REAR 2ARM, REAR 2
-
65KM-23526-00-00 BUSHBUSH
-
790105-10323-00 BOLT, FLANGEBOLT, FLANGE
-
85KM-22149-00-00 WASHERWASHER
-
95KM-2217M-00-00 ARM 1ARM 1
-
105KM-23526-00-00 BUSHBUSH
-
1190105-10323-00 BOLT, FLANGEBOLT, FLANGE
-
125KM-2217N-00-00 ARM 2ARM 2
-
135KM-23526-00-00 BUSHBUSH
-
1490105-10323-00 BOLT, FLANGEBOLT, FLANGE
-
1590185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
165KM-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
1790119-06117-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
185KM-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
1990119-06117-00 BOLT, WITH WASHERBOLT, WITH WASHER
