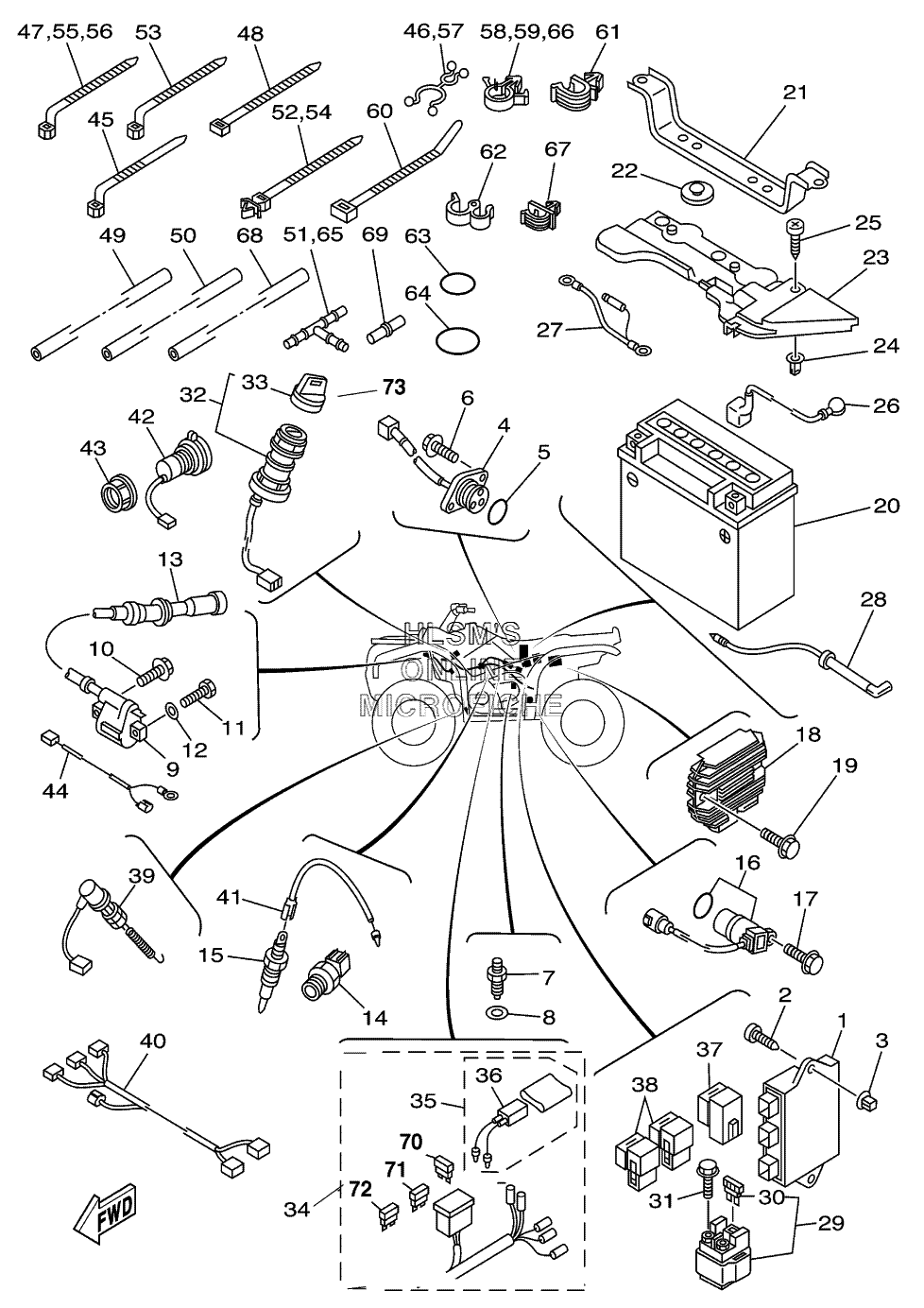

ELECTRICAL для Yamaha GRIZZLY 660 YFM660FP (5KM1) - 2002 года выпуска
-
№АртикулНазвание
-
15KM-85540-00-00 C.D.IUNIT ASSYC.D.IUNIT ASSY
-
297707-60025-00 SCREW, TAPPINGSCREW, TAPPING
-
390338-08226-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
45KM-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
593210-29196-00 O-RINGO-RING
-
690119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
75LP-82540-00-00 REVERSE SWITCHREVERSE SWITCH
-
890430-10148-00 GASKETGASKET
-
93KJ-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1090109-06723-00 BOLTBOLT
-
1197007-06020-00 BOLTBOLT
-
1292907-06600-00 WASHER, PLATEWASHER, PLATE
-
133YF-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
145GM-82560-00-00 THERMOSWITCH ASSYTHERMOSWITCH ASSY
-
155KM-82560-00-00 THERMOSWITCH ASSYTHERMOSWITCH ASSY
-
165LV-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
1791317-06016-00 ...BOLT, HEXSOCKET...BOLT, HEXSOCKET
-
185BN-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1995807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
20BTY-YTX20-LB-50 BATTERY ASSY (YTX20L-BS)BATTERY ASSY (YTX20L-BS)
-
215KM-82128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
22371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
235KM-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
2490338-08226-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
2597707-60016-00 SCREW, TAPPINGSCREW, TAPPING
-
265KM-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
275KM-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
285KM-82541-00-00 WIRE, LEADWIRE, LEAD
-
294SV-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
301AE-82151-00-00 ......FUSE (30A-BL)......FUSE (30A-BL)
-
3195027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
325KM-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
333HN-82579-00-00 ......CAP, KEY......CAP, KEY
-
345KM-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
355GT-82180-00-00 ......CIRCUIT BREAKER ASSY......CIRCUIT BREAKER ASSY
-
365GT-82560-00-00 ......THERMOSWITCH ASSY......THERMOSWITCH ASSY
-
3729U-81950-93-00 RELAY ASSYRELAY ASSY
-
385DM-81950-00-00 RELAY HEADLIGHTRELAY HEADLIGHT
-
395KM-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
405KM-82309-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
415KM-82507-00-00 WIRE, LEADWIRE, LEAD
-
425GH-8254B-00-00 TERMINAL COMPTERMINAL COMP
-
435GH-82114-00-00 NUTNUT
-
445KM-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
4590464-12045-00 BAND,SWITCH CORDBAND,SWITCH CORD
-
4690464-35047-00 CLAMPCLAMP
-
4790464-15195-00 CLAMPCLAMP
-
48437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
4990445-07371-00 HOSE (L700)HOSE (L700)
-
5090445-07176-00 HOSE (L200)HOSE (L200)
-
5190413-05014-00 WAY 3WAY 3
-
5290464-12089-00 CLAMPCLAMP
-
5390460-15126-00 CLAMP, HOSECLAMP, HOSE
-
5490464-12089-00 CLAMPCLAMP
-
5590464-15195-00 CLAMPCLAMP
-
5690464-15195-00 CLAMPCLAMP
-
5790464-35047-00 CLAMPCLAMP
-
5890464-15157-00 CLAMPCLAMP
-
5990464-15157-00 CLAMPCLAMP
-
6090465-10098-00 CLAMPCLAMP
-
6190464-14M55-00 CLAMPCLAMP
-
6290468-15139-00 CLIPCLIP
-
6393210-57428-00 O-RINGO-RING
-
6493210-975A9-00 O-RINGO-RING
-
6590413-05014-00 WAY 3WAY 3
-
6690464-15157-00 CLAMPCLAMP
-
6790464-07001-00 CLAMPCLAMP
-
6890446-09155-00 TUBE, FLEXIBLETUBE, FLEXIBLE
-
695KM-82109-00-00 JOINT, HOSEJOINT, HOSE
-
705JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
715JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
725JJ-82151-50-00 FUSE (3A-BL)FUSE (3A-BL)
-
7390890-56001-00 ATV KEY BLANK (TYPE-A)ATV KEY BLANK (TYPE-A)
-
7390890-56002-00 ATV KEY BLANK (TYPE-B)ATV KEY BLANK (TYPE-B)
