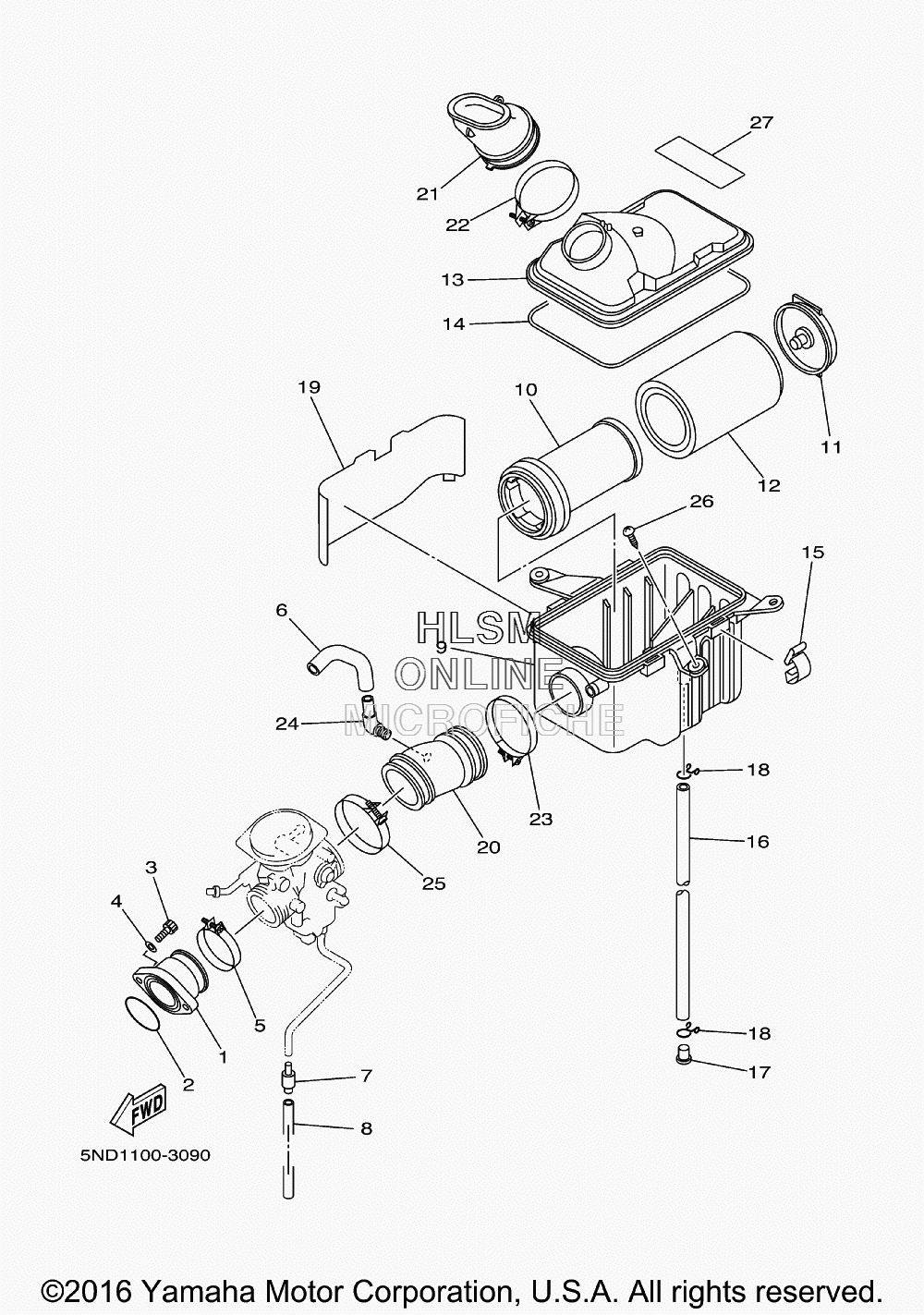

AIR CLEANER W/ INTAKE для Yamaha KODIAK 450 AUTO 4X4 HARDWOODS - 2004 года выпуска
-
№АртикулНазвание
-
15GH-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-44545-00 O-RINGO-RING
-
391317-08025-00 BOLTBOLT
-
490201-08085-00 WASHER, PLATEWASHER, PLATE
-
590450-47001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
65ND-E4349-00-00 PIPE (YMUS)PIPE (YMUS)
-
724W-14193-00-00 PIPEPIPE
-
891A20-07010-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
95ND-E4411-00-00 CASE, AIR CLEANER 1 (YMUS)CASE, AIR CLEANER 1 (YMUS)
-
105ND-E4458-00-00 GUIDE (YMUS)GUIDE (YMUS)
-
115ND-E4468-00-00 PLATE, ELEMENT FITTING (YMUS)PLATE, ELEMENT FITTING (YMUS)
-
125ND-E4451-00-00 ELEMENT, AIR CLEANER (YMUS)ELEMENT, AIR CLEANER (YMUS)
-
135ND-E4412-00-00 CAP, CLEANER CASE 1 (YMUS)CAP, CLEANER CASE 1 (YMUS)
-
145ND-E4462-00-00 SEAL (YMUS)SEAL (YMUS)
-
155ND-E4424-00-00 CLIP, CAP FITTING (YMUS)CLIP, CAP FITTING (YMUS)
-
165ND-E4769-00-00 PIPE, DRAIN (YMUS)PIPE, DRAIN (YMUS)
-
175ND-E4191-00-00 PLUG, DRAIN (YMUS)PLUG, DRAIN (YMUS)
-
185ND-E4438-00-00 CLIP, DRAIN CLEANER (YMUS)CLIP, DRAIN CLEANER (YMUS)
-
195ND-E442F-00-00 PROTECTOR (YMUS)PROTECTOR (YMUS)
-
205ND-E4453-00-00 JOINT, AIR CLEANER 1 (YMUS)JOINT, AIR CLEANER 1 (YMUS)
-
215ND-E4437-00-00 DUCT (YMUS)DUCT (YMUS)
-
2290460-58124-00 CLAMP, HOSECLAMP, HOSE
-
2390460-58124-00 CLAMP, HOSECLAMP, HOSE
-
2431A-14419-00-00 PIPEPIPE
-
2590460-56105-00 CLAMP, HOSECLAMP, HOSE
-
2690119-06227-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
275ND-2179T-10-00 PLATE, EPA 3 (CALIFORNIA)PLATE, EPA 3 (CALIFORNIA)
