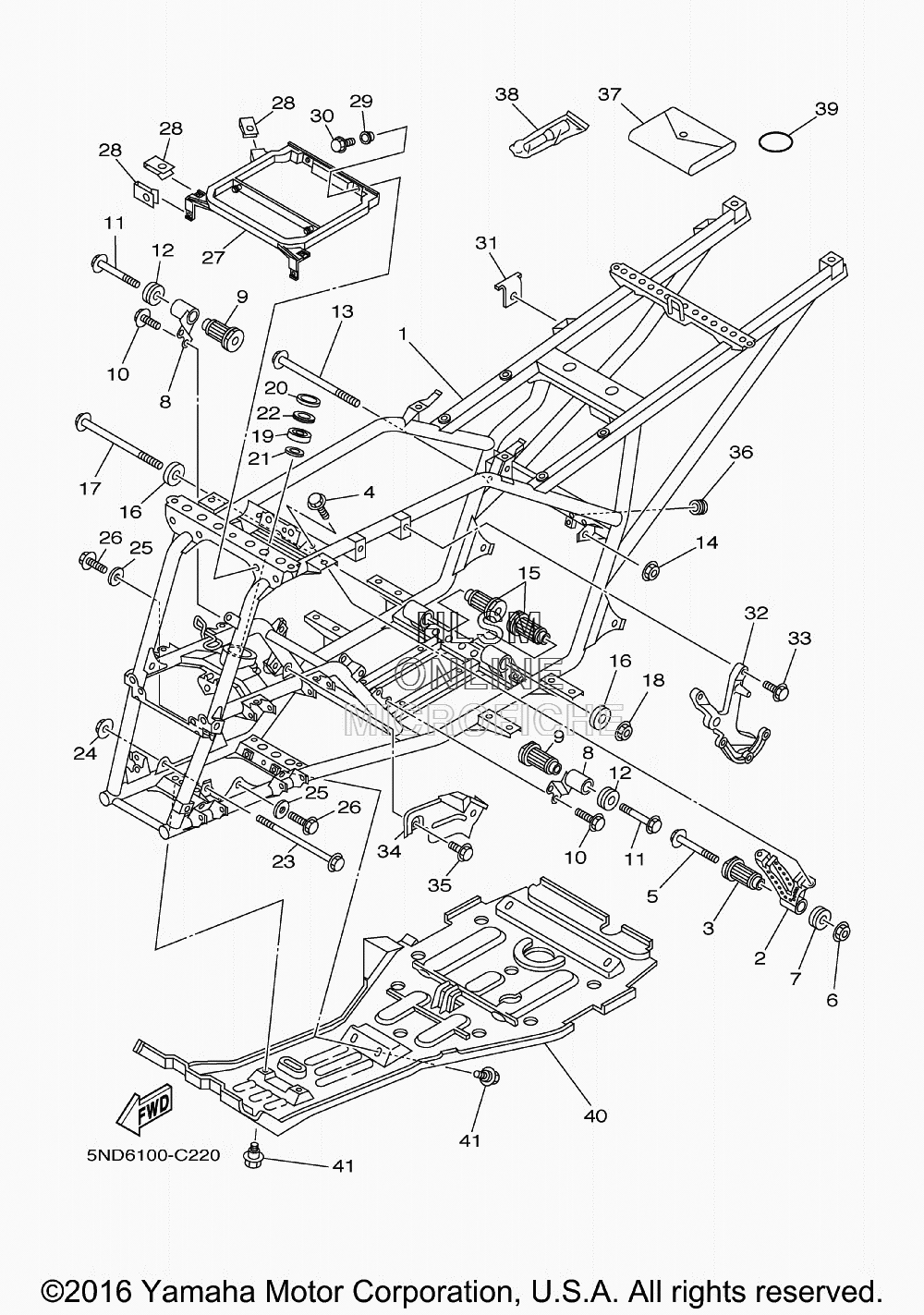

FRAME для Yamaha KODIAK 450 AUTO 4X4 HARDWOODS - 2004 года выпуска
-
№АртикулНазвание
-
15ND-F1110-01-00 FRAME COMP. (YMUS)FRAME COMP. (YMUS)
-
25ND-F1315-00-00 STAY, ENGINE 2 (YMUS)STAY, ENGINE 2 (YMUS)
-
35ND-E5336-00-00 DAMPER, ENGINE MOUNT 3 (YMUS)DAMPER, ENGINE MOUNT 3 (YMUS)
-
49581P-08012-00 BOLT, FLANGE (YMUS)BOLT, FLANGE (YMUS)
-
595817-10110-00 BOLT, FLANGEBOLT, FLANGE
-
695607-10200-00 NUT, U FLANGENUT, U FLANGE
-
75ND-F1486-00-00 DAMPER 2 (YMUS)DAMPER 2 (YMUS)
-
85ND-F1316-00-00 STAY, ENGINE 3 (YMUS)STAY, ENGINE 3 (YMUS)
-
95ND-E5336-00-00 DAMPER, ENGINE MOUNT 3 (YMUS)DAMPER, ENGINE MOUNT 3 (YMUS)
-
109581P-08012-00 BOLT, FLANGE (YMUS)BOLT, FLANGE (YMUS)
-
1195817-10080-00 BOLT, FLANGEBOLT, FLANGE
-
125ND-F1486-00-00 DAMPER 2 (YMUS)DAMPER 2 (YMUS)
-
1390105-10055-00 BOLT, FLANGEBOLT, FLANGE
-
1495607-10200-00 NUT, U FLANGENUT, U FLANGE
-
155ND-E5336-00-00 DAMPER, ENGINE MOUNT 3 (YMUS)DAMPER, ENGINE MOUNT 3 (YMUS)
-
165ND-F1488-00-00 DAMPER (YMUS)DAMPER (YMUS)
-
1790105-10055-00 BOLT, FLANGEBOLT, FLANGE
-
1895607-10200-00 NUT, U FLANGENUT, U FLANGE
-
1993306-203YN-00 BEARING (YMUS)BEARING (YMUS)
-
2093102-25081-00 OIL SEALOIL SEAL
-
2193102-25099-00 OIL SEALOIL SEAL
-
222GU-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
2390105-10051-00 BOLT, FLANGEBOLT, FLANGE
-
2495607-10200-00 NUT, U FLANGENUT, U FLANGE
-
2590201-101J1-00 WASHER, PLATEWASHER, PLATE
-
2695817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
275ND-F1513-00-00 STAY, FENDER 1 (YMUS)STAY, FENDER 1 (YMUS)
-
2890183-06053-00 NUT, SPRINGNUT, SPRING
-
2990387-06681-00 COLLARCOLLAR
-
3095817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
315ND-F1446-00-00 STAY, MUFFLER 2 (YMUS)STAY, MUFFLER 2 (YMUS)
-
325ND-F1585-01-00 ARM (YMUS)ARM (YMUS)
-
3395827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
345ND-F2825-00-00 PROTECTOR 1 (YMUS)PROTECTOR 1 (YMUS)
-
3595817-06010-00 BOLT, FLANGEBOLT, FLANGE
-
3690480-10517-00 GROMMETGROMMET
-
375ND-F8100-00-00 TOOL KIT (YMUS)TOOL KIT (YMUS)
-
381NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
-
3993210-64297-00 O-RINGO-RING
-
405ND-F147A-01-00 GUARD, ENGINE 1 (YMUS)GUARD, ENGINE 1 (YMUS)
-
4190109-063F1-00 BOLTBOLT
