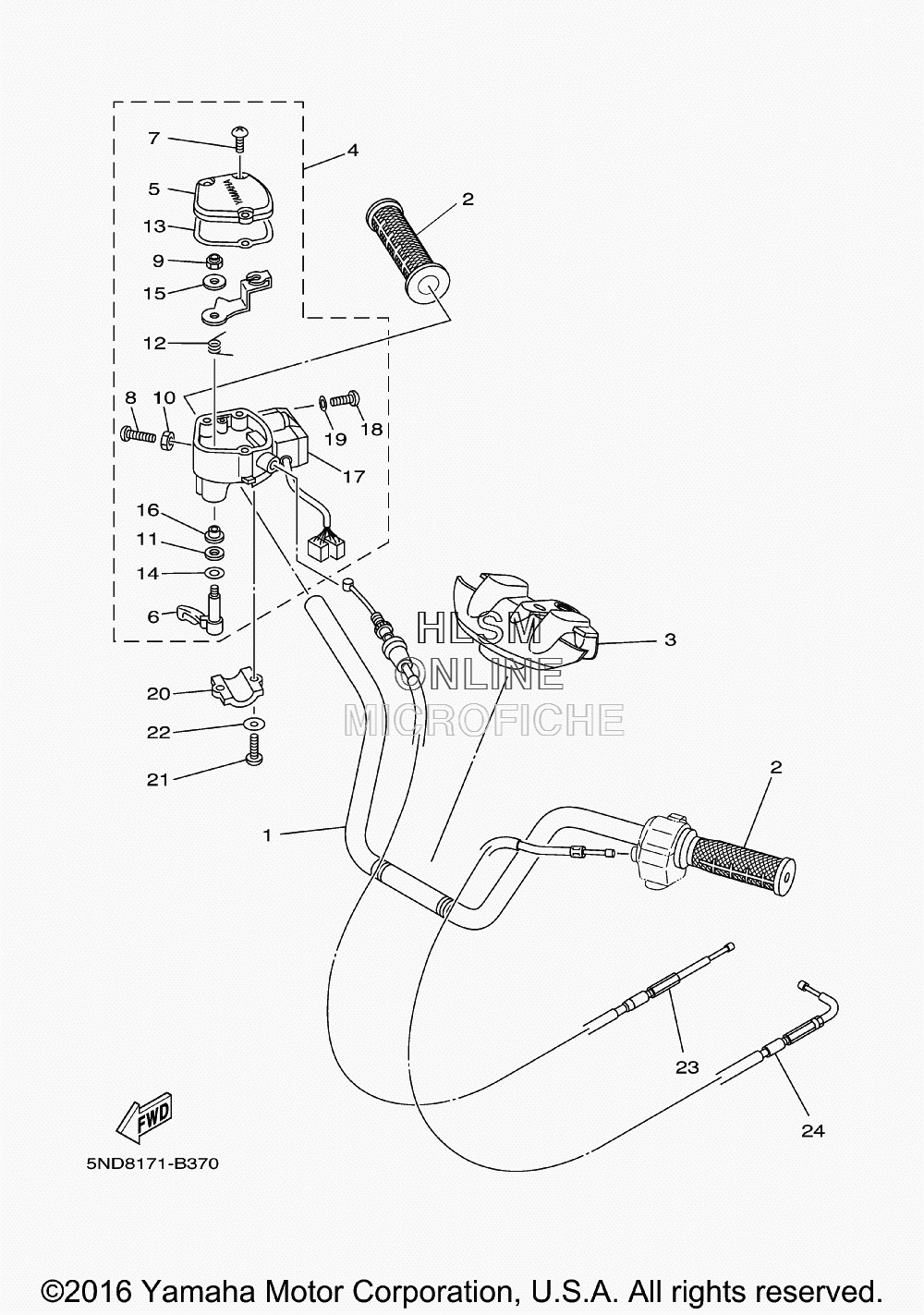

HANDLEBAR W/ CABLES для Yamaha KODIAK 450 AUTO 4X4 HARDWOODS - 2004 года выпуска
-
№АртикулНазвание
-
15FU-F6111-10-00 HANDLEBAR (YMUS)HANDLEBAR (YMUS)
-
25FU-F6241-10-00 GRIP (YMUS)GRIP (YMUS)
-
35ND-F6124-00-00 PROTECTOR, HANDLEBAR (YMUS)PROTECTOR, HANDLEBAR (YMUS)
-
45KM-26250-00-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
54KB-2628F-10-00 ...CAP, GEAR...CAP, GEAR
-
61NV-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
790149-04278-00 ...SCREW...SCREW
-
898507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
995607-05100-00 ...NUT, U...NUT, U
-
1095307-05700-00 ...NUT...NUT
-
1193104-09025-00 ...OIL SEAL...OIL SEAL
-
121NV-26304-00-00 ...SPRING...SPRING
-
134KB-2628G-00-00 ...GASKET...GASKET
-
141NV-26129-00-00 ...WASHER...WASHER
-
151NV-26398-00-00 ...WASHER...WASHER
-
161NV-2625K-00-00 ...COLLAR...COLLAR
-
175KM-83976-00-00 ...SWITCH, HANDLE 1...SWITCH, HANDLE 1
-
1898507-04016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1992907-04600-00 ...WASHER...WASHER
-
204V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
2198507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2292907-05600-00 WASHER, PLATEWASHER, PLATE
-
235GH-26311-01-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
245VH-F6331-00-00 CABLE, STARTER 1 (YMUS)CABLE, STARTER 1 (YMUS)
