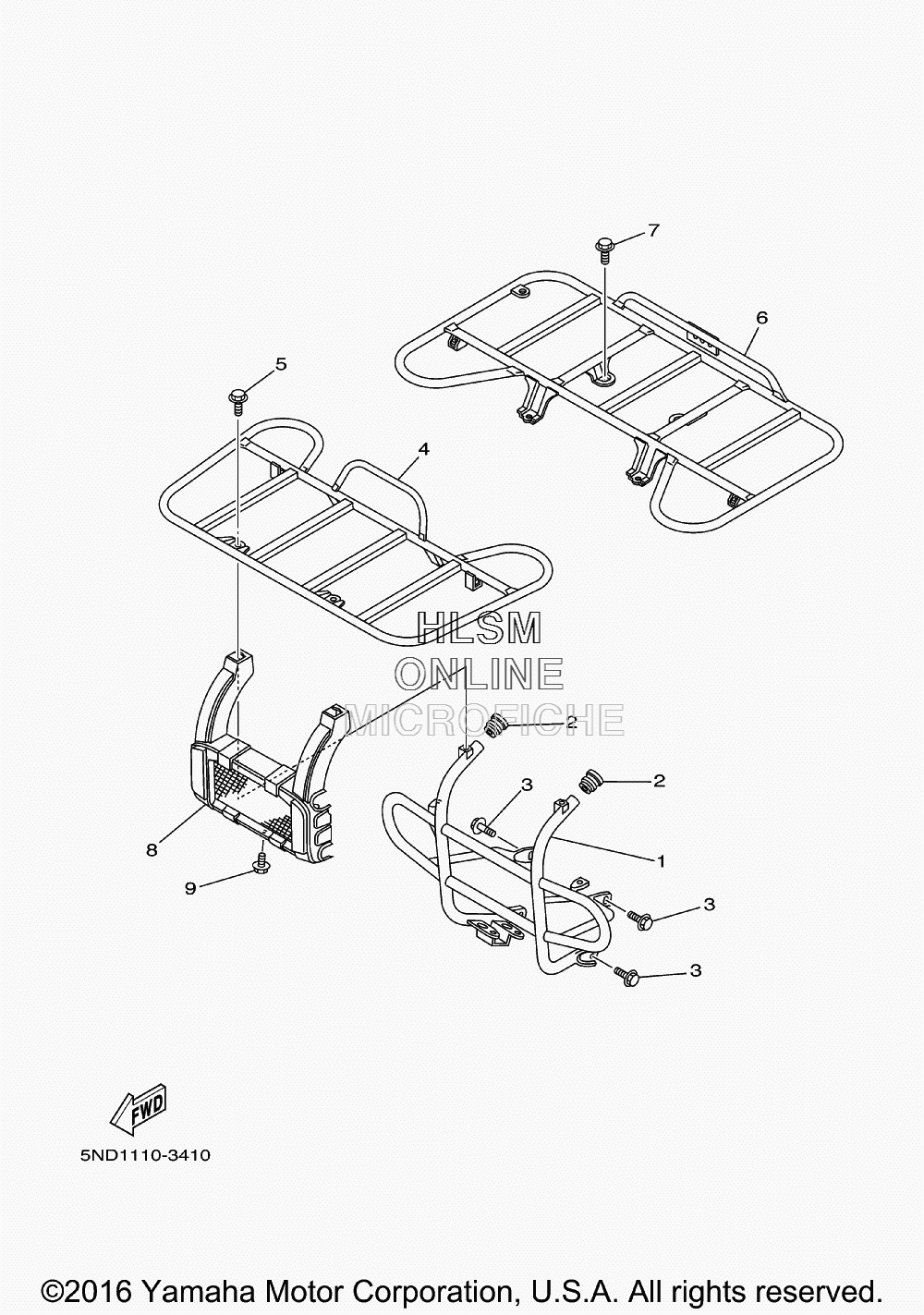

RACK AND BUMPER для Yamaha KODIAK 450 AUTO 4X4 HARDWOODS - 2004 года выпуска
-
№АртикулНазвание
-
15ND-F845N-00-00 BAR, CARRY FRONT (YMUS)BAR, CARRY FRONT (YMUS)
-
24XE-F1399-00-00 CAP (YMUS)CAP (YMUS)
-
39581P-08012-00 BOLT, FLANGE (YMUS)BOLT, FLANGE (YMUS)
-
45ND-F4841-00-00 CARRIER, FRONT (YMUS)CARRIER, FRONT (YMUS)
-
59581P-08012-00 BOLT, FLANGE (YMUS)BOLT, FLANGE (YMUS)
-
65ND-F4842-00-00 CARRIER, REAR (YMUS)CARRIER, REAR (YMUS)
-
79581P-08012-00 BOLT, FLANGE (YMUS)BOLT, FLANGE (YMUS)
-
85ND-F842A-00-00 COVER 5 (YMUS)COVER 5 (YMUS)
-
990119-06079-00 BOLT, WITH WASHERBOLT, WITH WASHER
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- CYLINDER HEAD
- DECALS
- DIFFERENTIAL - FRONT
- DIFFERENTIAL - REAR W/ DRIVE SHAFT
- ELECTRICAL
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- INSTRUMENT PANEL
- MIDDLE DRIVE GEAR
- MODEL INFO - MANUALS
- OIL PUMP
- • RACK AND BUMPER
- RADIATOR ASSY
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- SIDE COVER
- STARTER - RECOIL
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION
- VALVE ASSY
- WATER PUMP ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
