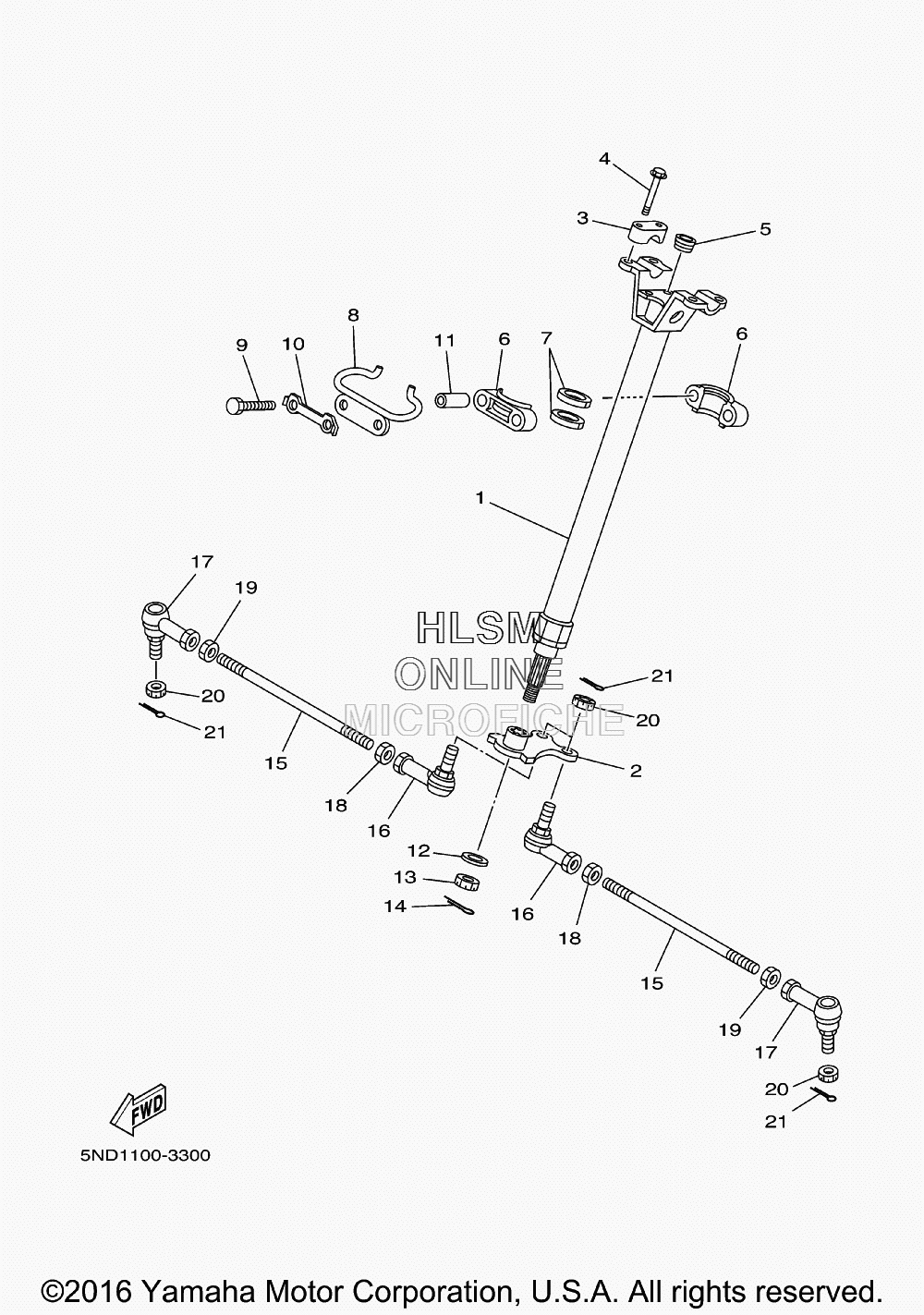

STEERING для Yamaha KODIAK 450 AUTO 4X4 HARDWOODS - 2004 года выпуска
-
№АртикулНазвание
-
15ND-F3813-10-00 COLUMN, STEERING 2 (YMUS)COLUMN, STEERING 2 (YMUS)
-
25ND-F3816-10-00 ARM, PITMAN (YMUS)ARM, PITMAN (YMUS)
-
38K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
49581P-08030-00 BOLT, FLANGE (YMUS)BOLT, FLANGE (YMUS)
-
590336-28053-00 PLUG, TAPERPLUG, TAPER
-
61UY-23812-00-00 BEARING, STEERINGBEARING, STEERING
-
793112-31011-00 OIL SEALOIL SEAL
-
85ND-F3868-00-00 BRACKET, STEERING LOWER (YMUS)BRACKET, STEERING LOWER (YMUS)
-
99702P-08060-00 BOLT (YMUS)BOLT (YMUS)
-
104XE-F3894-00-00 WASHER, LOCK 1 (YMUS)WASHER, LOCK 1 (YMUS)
-
1190387-090R0-00 COLLARCOLLAR
-
1290201-14226-00 WASHER, PLATEWASHER, PLATE
-
1390185-14070-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1491401-25025-00 PIN, COTTERPIN, COTTER
-
155ND-F3831-00-00 ROD, TIE (YMUS)ROD, TIE (YMUS)
-
165FU-F3841-00-00 JOINT, UNIVERSAL 1 (YMUS)JOINT, UNIVERSAL 1 (YMUS)
-
175FU-F3845-00-00 JOINT, UNIVERSAL 2 (YMUS)JOINT, UNIVERSAL 2 (YMUS)
-
184XE-F3833-00-00 NUT 1 (YMUS)NUT 1 (YMUS)
-
194XE-F3834-00-00 NUT 2 (YMUS)NUT 2 (YMUS)
-
2090171-12816-00 NUT, CASTLE (YMUS)NUT, CASTLE (YMUS)
-
2191401-25020-00 PIN, COTTERPIN, COTTER
