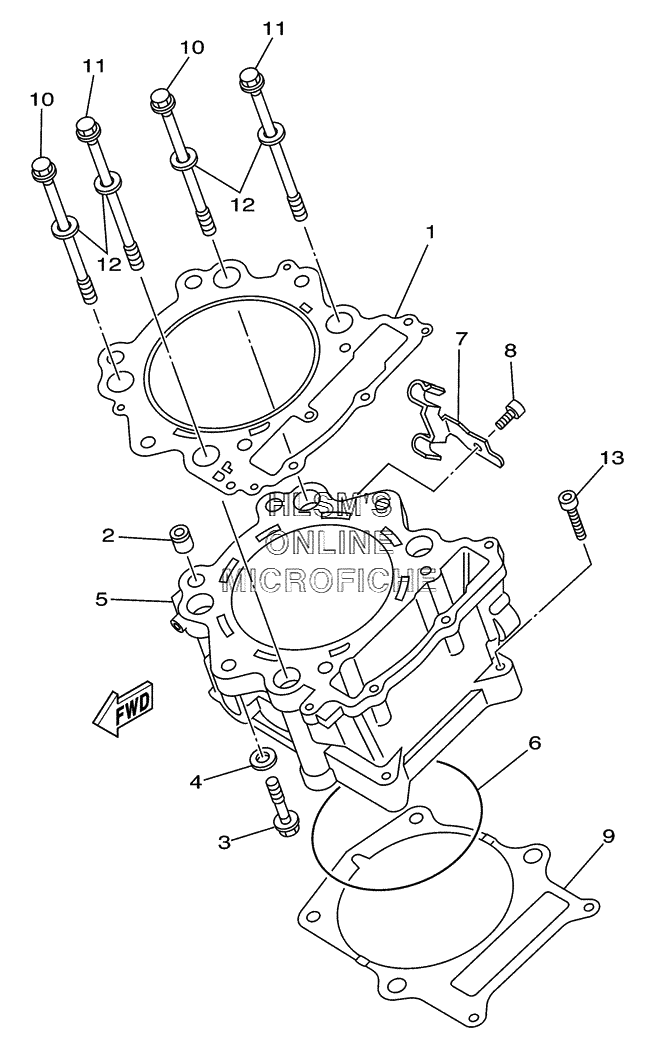

CYLINDER для Yamaha RAPTOR 660R LIMITED EDITION YFM660RLES - 2004 года выпуска
-
№АртикулНазвание
-
13YF-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
293612-16254-00 PIN, DOWELPIN, DOWEL
-
390105-09647-00 BOLT, FLANGEBOLT, FLANGE
-
490201-096J9-00 WASHER, PLATEWASHER, PLATE
-
53YF-11310-01-00 CYLINDERCYLINDER
-
693211-01467-00 O-RINGO-RING
-
75LP-11395-00-00 HOLDERHOLDER
-
891317-06014-00 BOLTBOLT
-
93YF-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
1090105-10649-00 BOLT, FLANGEBOLT, FLANGE
-
1190105-10650-00 BOLT, FLANGEBOLT, FLANGE
-
1290201-101A4-00 WASHER, PLATEWASHER, PLATE
-
1391317-06040-00 BOLTBOLT
