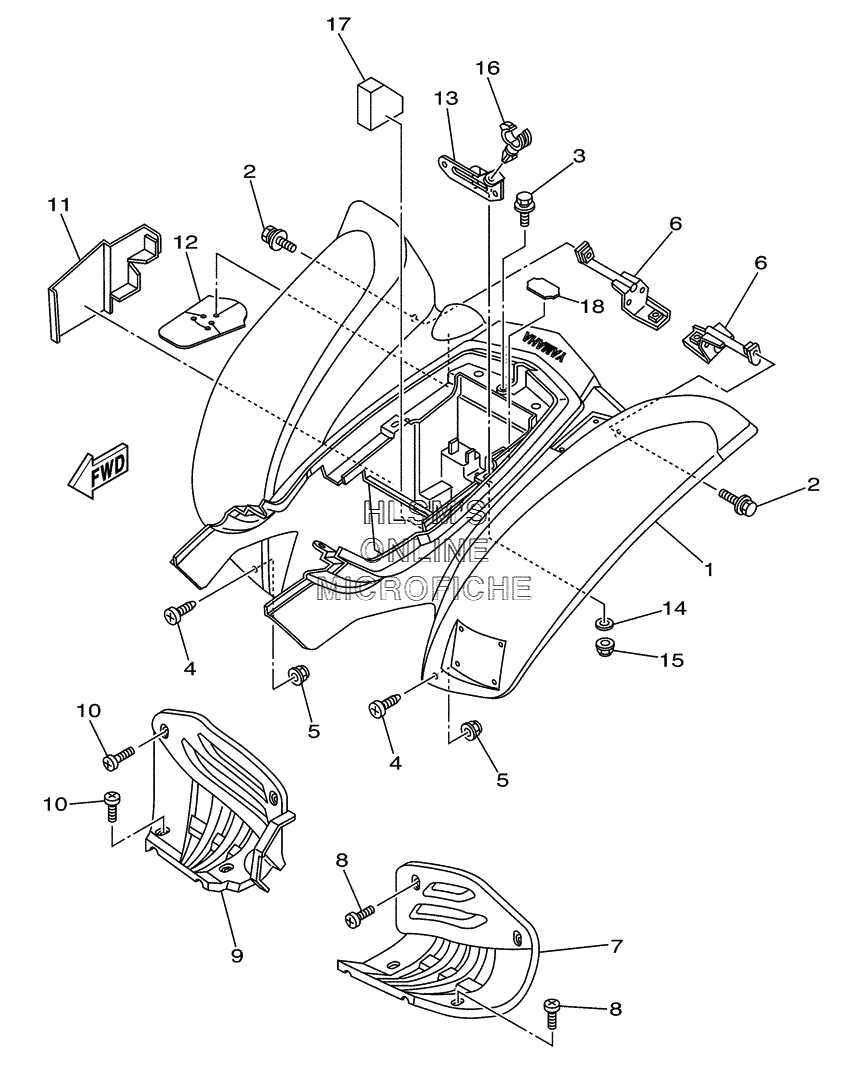

FENDER - REAR для Yamaha RAPTOR 660R LIMITED EDITION YFM660RLES - 2004 года выпуска
-
№АртикулНазвание
-
15LP-W2161-20-00 REAR FENDER COMP.REAR FENDER COMP.
-
290119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390119-06118-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490149-06306-00 SCREWSCREW
-
595607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
65LP-21613-10-00 STAY, FENDER 1STAY, FENDER 1
-
75LP-21621-00-00 FLAPFLAP
-
890154-05013-00 SCREW, BINDINGSCREW, BINDING
-
95LP-21691-00-00 FLAPFLAP
-
1090154-05013-00 SCREW, BINDINGSCREW, BINDING
-
115LP-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
125LP-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
135LP-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
1490201-06380-00 WASHER, PLATEWASHER, PLATE
-
1595607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
1690464-20181-00 CLAMPCLAMP
-
175LP-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
185LP-21639-00-00 DAMPER 2DAMPER 2
